LTC4310

Hot-Swappable I2C Isolators

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 16
1ku List Price Starting From $1.81
Features
  • Bidirectional I2C Communication Between Two Isolated Buses
  • Full Isolation with Inexpensive Ethernet Transformers or Capacitors
  • Low Voltage Level Shifting
  • I2C Maximum Operating Frequency:
    • 100kHz for LTC4310-1
    • 400kHz for LTC4310-2
  • I2C Specification Compliant VOL, VIL
  • ±5kV Human Body Model ESD Protection
  • Rise Time Accelerators
  • SDA, SCL Hot-Swapping
  • Very Low Shutdown Current
  • Stuck Bus Disconnect and Recovery
  • Thermal Shutdown

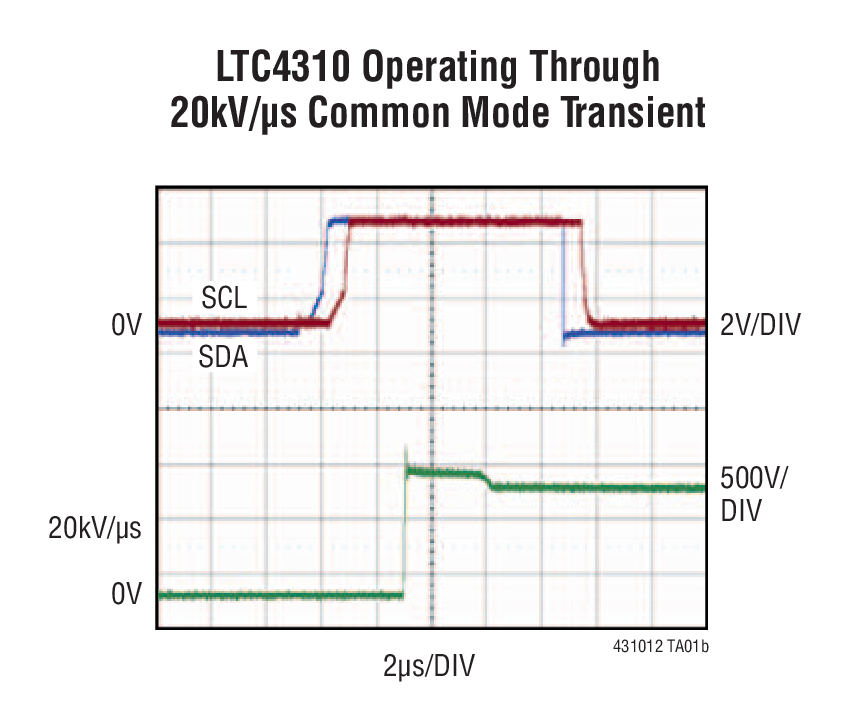

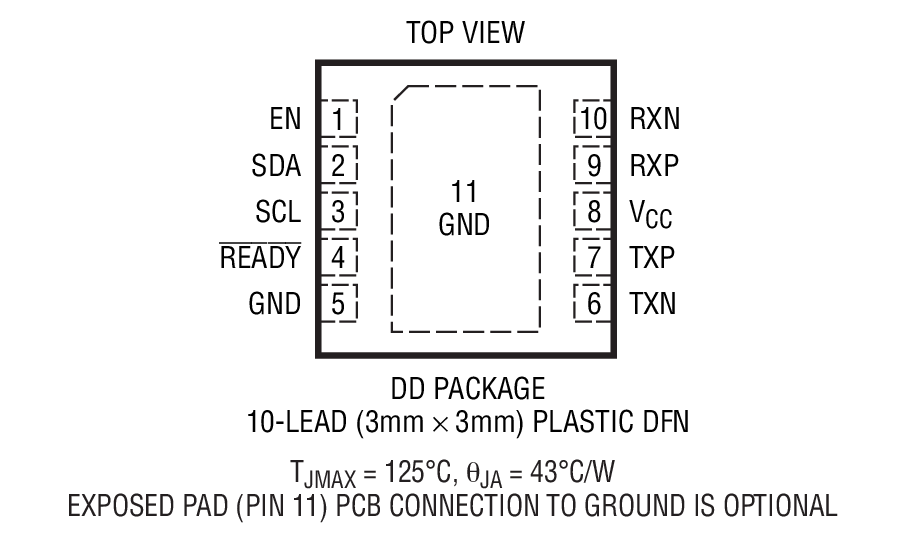

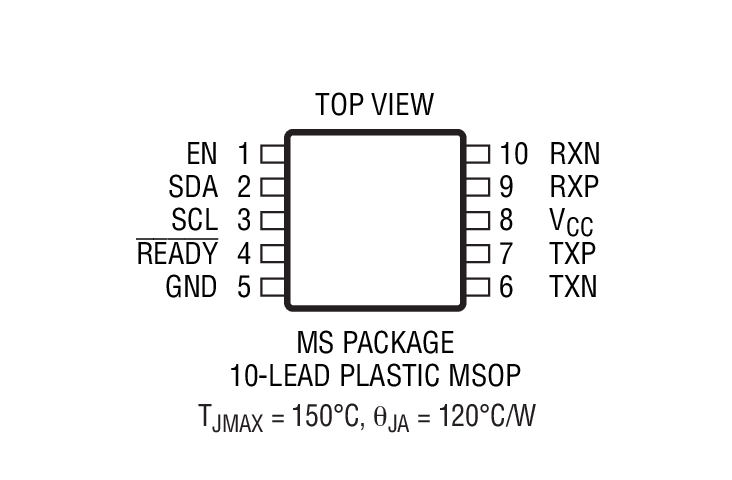

  • 10-Lead MSOP and 3mm × 3mm DFN Packages
Additional Details
show more Icon

The LTC4310 provides bidirectional I2C communications between two I2C buses whose grounds are isolated from one another. Each LTC4310 encodes I2C bus logic states into signals that are transmitted across an isolation barrier to another LTC4310. The receiving LTC4310 decodes the transmission and drives its l2C bus to the appropriate logic state. The isolation barrier can be bridged by an inexpensive Ethernet, or other transformer, to achieve communications across voltage differences reaching thousands of volts, or it can be bridged by capacitors for lower voltage isolation. The LTC4310-1 is intended for use in 100kHz I2C systems. The LTC4310-2 is intended for 400kHz I2C systems.

Rise time accelerators provide strong pull-up currents on SCL and SDA rising edges to meet rise time specifications for heavily loaded systems. Data and clock Hot Swap circuitry prevent data corruption when a card is inserted into or removed from a live bus. When a bus is stuck low for 37ms, the LTC4310 turns off its pull-down devices and generates up to sixteen clocks and a STOP bit in an attempt to free the bus. Driving EN low sets the LTC4310 in a very low current shutdown mode to conserve power.

Applications

  • Isolated I2C, SMBus and PMBus Interfaces
  • Isolated Power Supplies
  • Positive-to-Negative Rail Communications
  • Power-over-Ethernet
Part Models 16
1ku List Price Starting From $1.81

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC4310CDD-1#PBF
  • HTML
  • HTML
LTC4310CDD-1#TRPBF
  • HTML
  • HTML
LTC4310CDD-2#PBF
  • HTML
  • HTML
LTC4310CDD-2#TRPBF
  • HTML
  • HTML
LTC4310CMS-1#PBF
  • HTML
  • HTML
LTC4310CMS-1#TRPBF
  • HTML
  • HTML
LTC4310CMS-2#PBF
  • HTML
  • HTML
LTC4310CMS-2#TRPBF
  • HTML
  • HTML
LTC4310IDD-1#PBF
  • HTML
  • HTML
LTC4310IDD-1#TRPBF
  • HTML
  • HTML
LTC4310IDD-2#PBF
  • HTML
  • HTML
LTC4310IDD-2#TRPBF
  • HTML
  • HTML
LTC4310IMS-1#PBF
  • HTML
  • HTML
LTC4310IMS-1#TRPBF
  • HTML
  • HTML
LTC4310IMS-2#PBF
  • HTML
  • HTML
LTC4310IMS-2#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0130

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LTC4310CMS-1#PBF

PRODUCTION

LTC4310CMS-1#TRPBF

PRODUCTION

LTC4310CMS-2#PBF

PRODUCTION

LTC4310CMS-2#TRPBF

PRODUCTION

LTC4310IMS-1#PBF

PRODUCTION

LTC4310IMS-1#TRPBF

PRODUCTION

LTC4310IMS-2#PBF

PRODUCTION

LTC4310IMS-2#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0130

arrow down

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LTC4310CMS-1#PBF

PRODUCTION

LTC4310CMS-1#TRPBF

PRODUCTION

LTC4310CMS-2#PBF

PRODUCTION

LTC4310CMS-2#TRPBF

PRODUCTION

LTC4310IMS-1#PBF

PRODUCTION

LTC4310IMS-1#TRPBF

PRODUCTION

LTC4310IMS-2#PBF

PRODUCTION

LTC4310IMS-2#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

DC1079A-A

LTC4310-1 | (100kHz) I2C Isolator

reference details image

DC1079A-B

LTC4310-2 | (400kHz) I2C Isolator
