LTC4279

Single Port PoE/PoE+/LTPoE++ PSE Controller

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 4
1ku List Price Starting From $4.13
Features
  • Compliant with IEEE 802.3at Type 1 and 2
  • Supports LTPoE++® Up to 90W
  • Supports Dual-Signature PDs
  • Fully Autonomous Operation without Microcontroller
  • Very Low Power Dissipation
    • 0.1Ω Sense Resistance
    • Low RDS(ON) External MOSFET
  • Very High Reliability 4-Point PD Detection
    • 2-Point Forced Voltage and Forced Current
  • Robust Short-Circuit Protection
  • Cable Surge Protected ±80V OUT pin
  • Classification Dependent ICUT and ILIM Current Thresholds
  • Supports 2-Pair and 4-Pair Output Power
  • UltraPWR Mode Supports Custom PDs up to 123W
  • Pin-Selectable Detection Backoff Timer for Midspans
  • Pin Programmable Legacy PD Detection

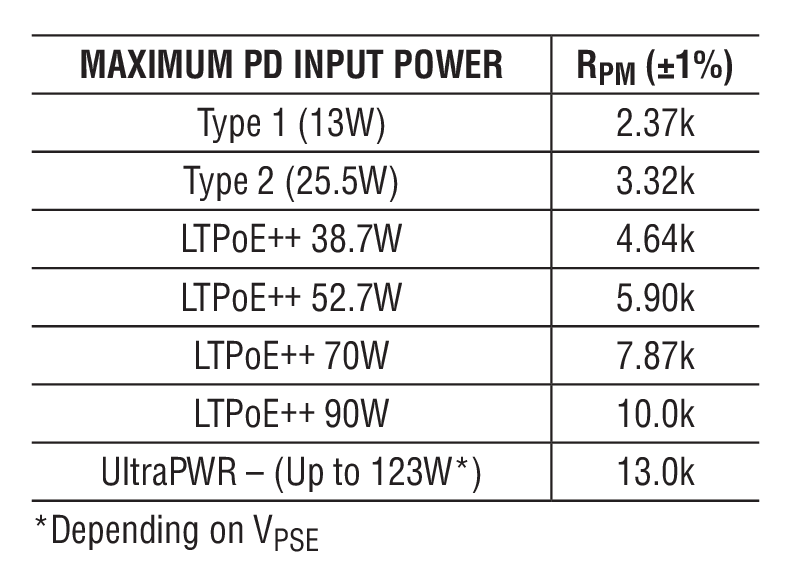

  • Pin Programmable Maximum Power Mode
  • Status LED Pin

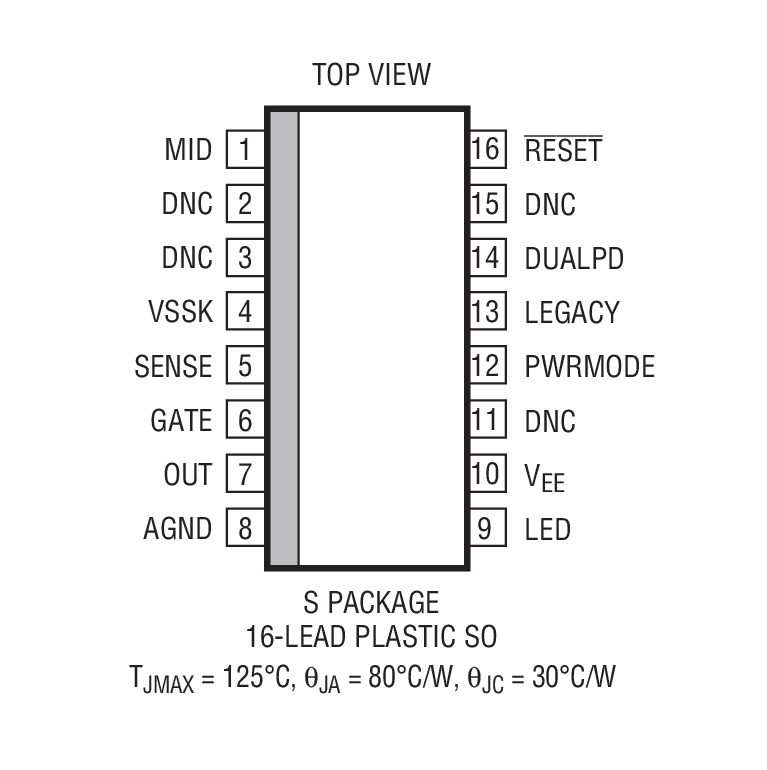

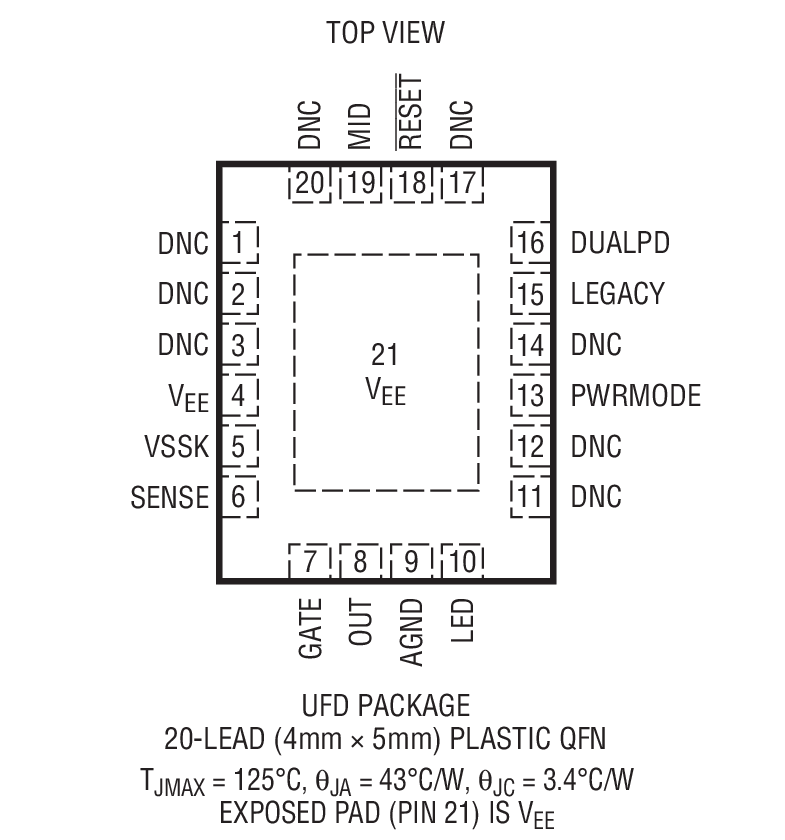

  • Available in 20-Pin QFN and 16-Pin SO Packages
Additional Details
show more Icon

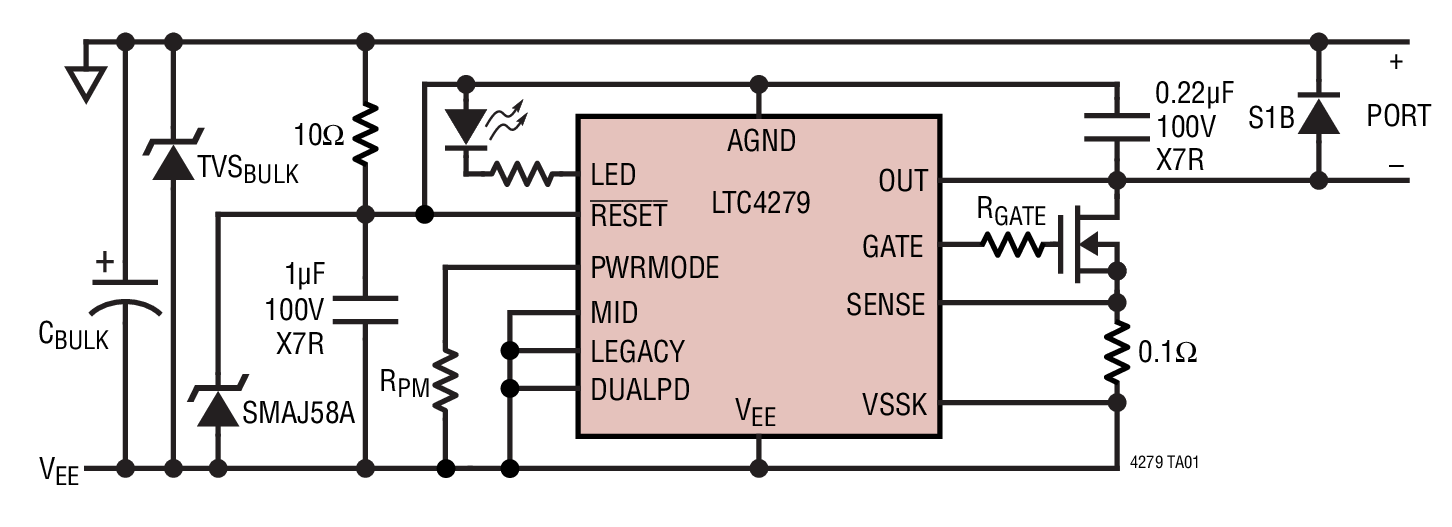

The LTC4279 is an autonomous single port power sourcing equipment (PSE) controller designed for use in IEEE 802.3at Type 1, Type 2 and LTPoE++ compliant Power over Ethernet (PoE) systems. The LTC4279 provides fully autonomous IEEE 802.3 and LTPoE++ compliant operation without a microcontroller. The LTC4279 simplifies PSE implementation, requiring only a single supply and a small number of passive support components.

The LTC4279 delivers lowest-in-industry heat dissipation by utilizing a low-RDS(ON) external MOSFET and a 0.1Ω sense resistor, eliminating the need for expensive heat sinks and increasing efficiency.

PD discovery uses a proprietary dual-mode 4-point detection mechanism ensuring excellent immunity from false PD detection. Midspan PSEs are supported with physical layer classification and a 2.5 second backoff timer.

Legacy and custom PDs are supported with pin-selectable LEGACY and UltraPWR modes. LEGACY mode detects and powers pre-IEEE specification PDs. UltraPWR mode aggressively turns on and powers custom PDs requiring high inrush and/or operational currents.

Applications

  • PoE PSE Endpoints (Switch/Router)
  • PoE Midspan Power Injectors
  • Power Forwarders
  • Femto Cells
  • Security Systems
Part Models 4
1ku List Price Starting From $4.13

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC4279IS#PBF
  • HTML
  • HTML
LTC4279IS#TRPBF
  • HTML
  • HTML
LTC4279IUFD#PBF
  • HTML
  • HTML
LTC4279IUFD#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 12, 2022

- 22_0252

Epoxy Change from Henkel 8290 to 8290A for 16-Lead SOIC Package

Aug 6, 2022

- 22_0173

Laser Top Mark Conversion for SOICN14 and SOICN16 Packages Assembled on ADPG [PNG]

LTC4279IS#PBF

PRODUCTION

LTC4279IS#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 12, 2022

- 22_0252

arrow down

Epoxy Change from Henkel 8290 to 8290A for 16-Lead SOIC Package

Aug 6, 2022

- 22_0173

arrow down

Laser Top Mark Conversion for SOICN14 and SOICN16 Packages Assembled on ADPG [PNG]

LTC4279IS#PBF

PRODUCTION

LTC4279IS#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

DC2541A

LTC4279 Demo Board | Single Port PoE/PoE+/LTPoE++ PSE Controller (up to 123W)

zoom

DC2541A

LTC4279 Demo Board | Single Port PoE/PoE+/LTPoE++ PSE Controller (up to 123W)

LTC4279 Demo Board | Single Port PoE/PoE+/LTPoE++ PSE Controller (up to 123W)

Product Detail

Demonstration circuit 2541A features the LTC4279, an autonomous single port Power Sourcing Equipment (PSE) controller for use in IEEE 802.3at Type 1, Type 2 and LTPoE++® compliant Power over Ethernet (PoE) systems. The LTC4279 simplifies IEEE and LTPoE++ PSE implementation, requiring only a 45-57V supply and a small number of passive support components.

reference details image

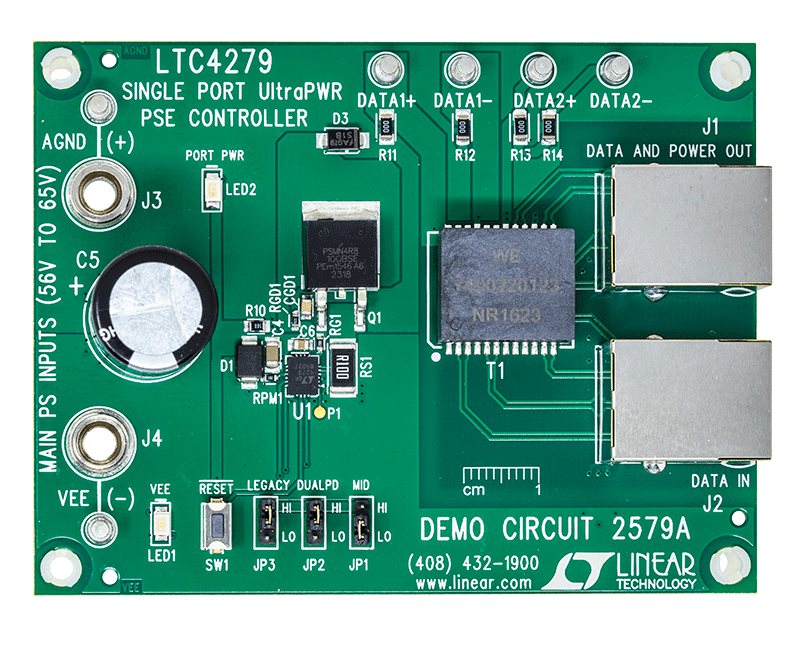

DC2579A

LTC4279 Demo Board | Single Port UltraPWR PSE Controller (123W)

zoom

DC2579A

LTC4279 Demo Board | Single Port UltraPWR PSE Controller (123W)

LTC4279 Demo Board | Single Port UltraPWR PSE Controller (123W)

Product Detail

Demonstration Circuit 2579A features the LTC4279, an autonomous single port power sourcing equipment (PSE) controller, configured in its UltraPWR mode. UltraPWR mode aggressively turns on and powers custom high power PDs requiring high inrush and/or operational currents.

Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
