Features and Benefits
- Robust 35W PD Front End
- IEEE 802.3af Compliant
- Rugged 750mA Power MOSFET with Precision Dual Level Current Limit
- High Performance Synchronous Flyback Controller
- IEEE Isolation Obtained Without an Opto-Isolator
- Adjustable Frequency from 50kHz to 250kHz
- Tight Multi-Output Regulation with Load Compensation
- On-board 25k Signature Resistor
- Programmable Classification Current to 75mA
- Complete Thermal and Over-Current Protection

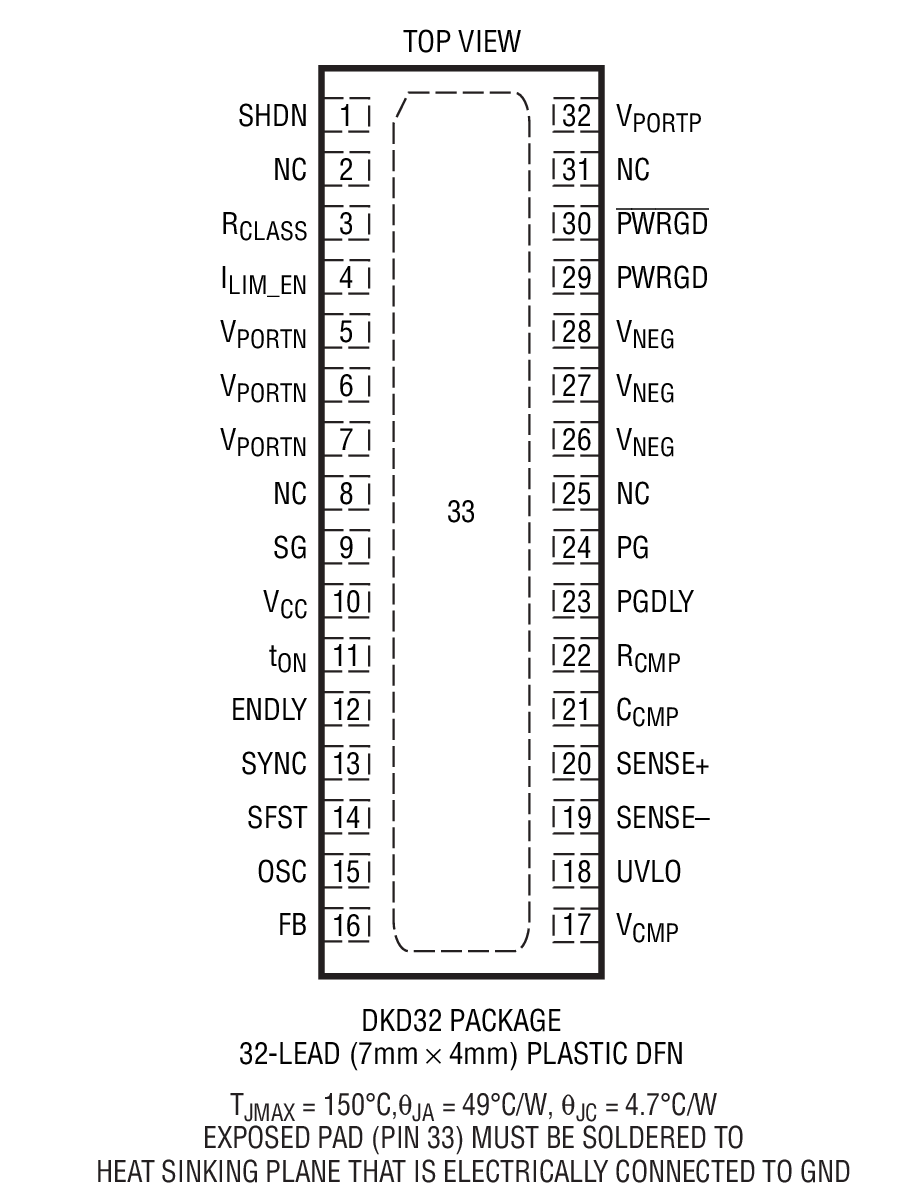

- Available in Compact 32-Pin 7mm × 4mm DFN Package
The LTC4268-1 is an integrated Powered Device (PD) controller and switching regulator intended for IEEE 802.3af and high power PoE applications up to 35W. By including a precision dual current limit, the LTC4268-1 keeps inrush below IEEE 802.3af current limit levels to ensure interoperability success while enabling high power applications with a 750mA operational current limit.
The LTC4268-1 synchronous, current-mode, flyback controller generates multiple supply rails in a single conversion providing for the highest system efficiency while maintaining tight regulation across all outputs. The LTC4268-1 includes patented No-Opto feedback topology to provide full IEEE 802.3af isolation without the need of opto-isolator circuitry.
The oversized power path and high performance flyback controller of the LTC4268-1 combine to make the ultimate solution for power hungry PoE applications such as WAPs, PTZ security cameras, RFID readers and ultra-efficient 802.3af applications running near the 12.95W limit.
The LTC4268-1 is available in a space saving 32-pin DFN package.
- VoIP Phones with Advanced Display Options
- Dual-Radio Wireless Access Points
- PTZ Security Cameras
- RFID Readers
- Industrial Controls
- Magnetic Card Readers
- High Power PoE Systems
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
DC1080A: Demo Board for the LTC4268-1 High Power PD with Synchronous No Opto Flyback Controller.
Documentation & Resources
R535 Reliability Data3/26/201836 K
DC1080A - Demo Manual9/24/2009676K
DN425 - High Power PoE PD Interface with Integrated Flyback Controller11/5/200791K
Power over Ethernet Solutions4/4/20171 M
PoE+ for the Power Hungry4/28/2010683K
LTC4268-1 Companion Parts
Recommended Related Parts
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|LTC4268CDKD-1#PBF||Material Declaration||Reliability Data||32-Lead DFN (7mm x 4mm w/ EP)|
|LTC4268CDKD-1#TRPBF||Material Declaration||Reliability Data||32-Lead DFN (7mm x 4mm w/ EP)|
|LTC4268IDKD-1#PBF||Material Declaration||Reliability Data||32-Lead DFN (7mm x 4mm w/ EP)|
|LTC4268IDKD-1#TRPBF||Material Declaration||Reliability Data||32-Lead DFN (7mm x 4mm w/ EP)|
|Wafer Fabrication Data||R535 Reliability Data|
