LTC4156
Dual-Input Power Manager/3.5A LiFePO4 Battery Charger with I2C Control and USB OTG
Top
Alternative Parts
Overview
Features and Benefits
- High Efficiency Charger Capable of 3.5A Charge Current
- Charge Control Algorithm Specifically Designed for LiFePO4 Batteries (Lithium Iron Phosphate)
- Monolithic Switching Regulator Makes Optimal Use of Limited Power and Thermal Budget
- Dual Input Overvoltage Protection Controller
- Priority Multiplexing for Multiple Inputs
- I2C/SMBus Control and Status Feedback
- NTC Thermistor ADC for Temperature Dependent Charge Algorithms (JEITA)
- Instant-On Operation with Low Battery
- Battery Ideal Diode Controller for Power Management
- USB On-The-Go Power Delivery to the USB Port
- Four Float Voltage Settings (3.45V, 3.55V, 3.6V, 3.8V)

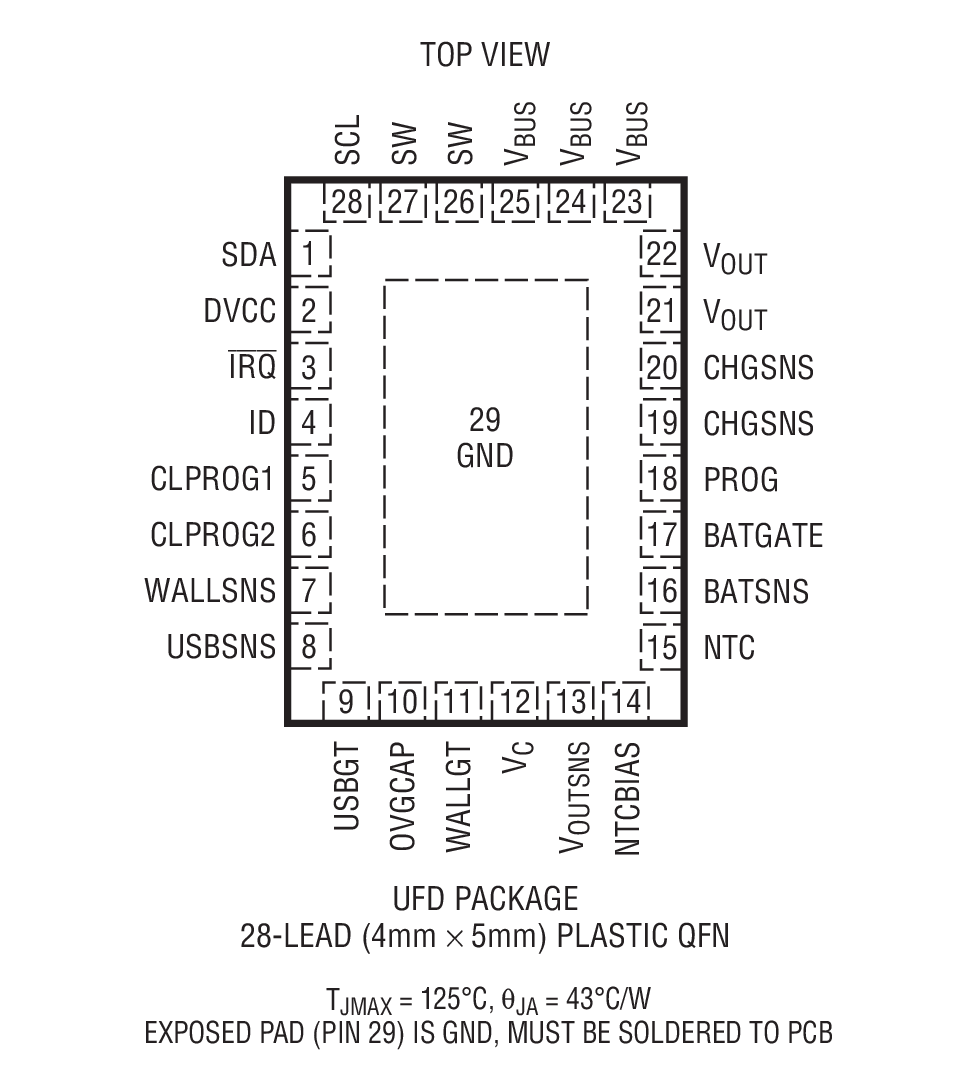

- 28-Lead 4mm × 5mm QFN Package
Product Details

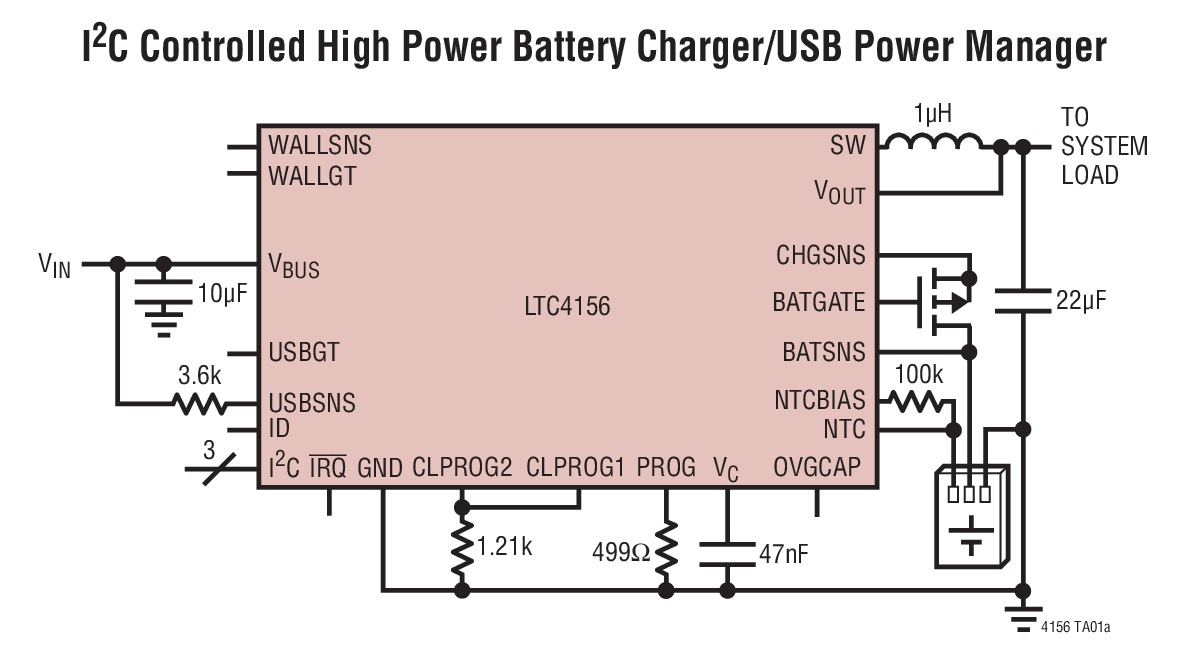

The LTC4156 is a 15 watt I2C controlled power manager with PowerPath™ instant-on operation, high efficiency switching battery charging and USB compatibility. The LTC4156 seamlessly manages power distribution from two 5V sources, such as a USB port and a wall adapter, to a single-cell rechargeable lithium iron phosphate battery and a system load.

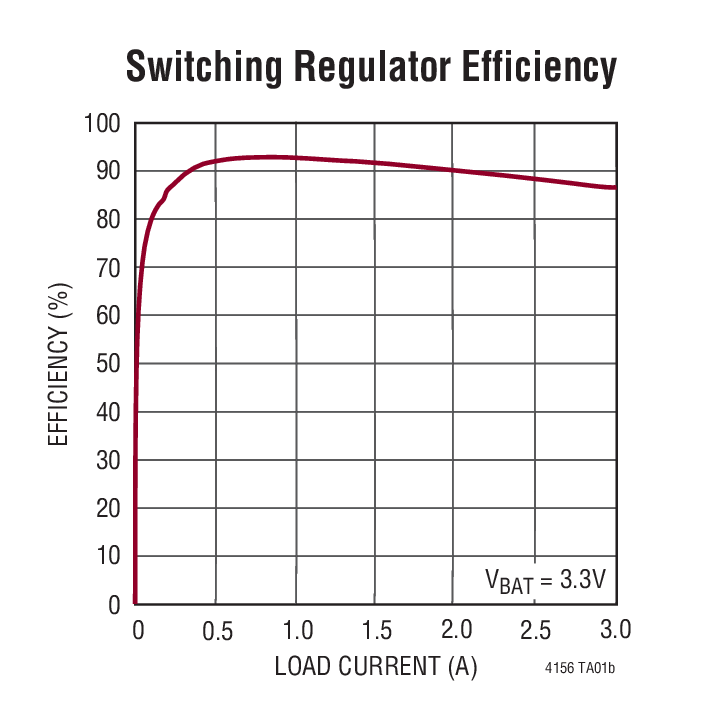

The LTC4156’s switching battery charger automatically limits its input current for USB compatibility, or may draw up to 3A from a high power wall adapter. The high efficiency step-down switching charger is designed to provide maximum power to the application and reduced heat in high power density applications.
I2C adjustability of input current, charge current, battery float voltage, charge termination, and many other parameters allows maximum flexibility. I2C status reporting of key system and charge parameters facilitates intelligent control decisions. USB On-The-Go support provides 5V power back to the USB port without any additional components. A dual-input, priority multiplexing, overvoltage protection circuit guards the LTC4156 from high voltage damage on the VBUS pin.
The LTC4156 is available in the low profile (0.75mm) 28-lead 4mm × 5mm QFN surface mount package.
Applications
- Portable Medical Devices
- Portable Industrial Devices
- Backup Devices
Product Categories
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)
Documentation & Resources
-
R540 Reliability Data3/26/2018
-

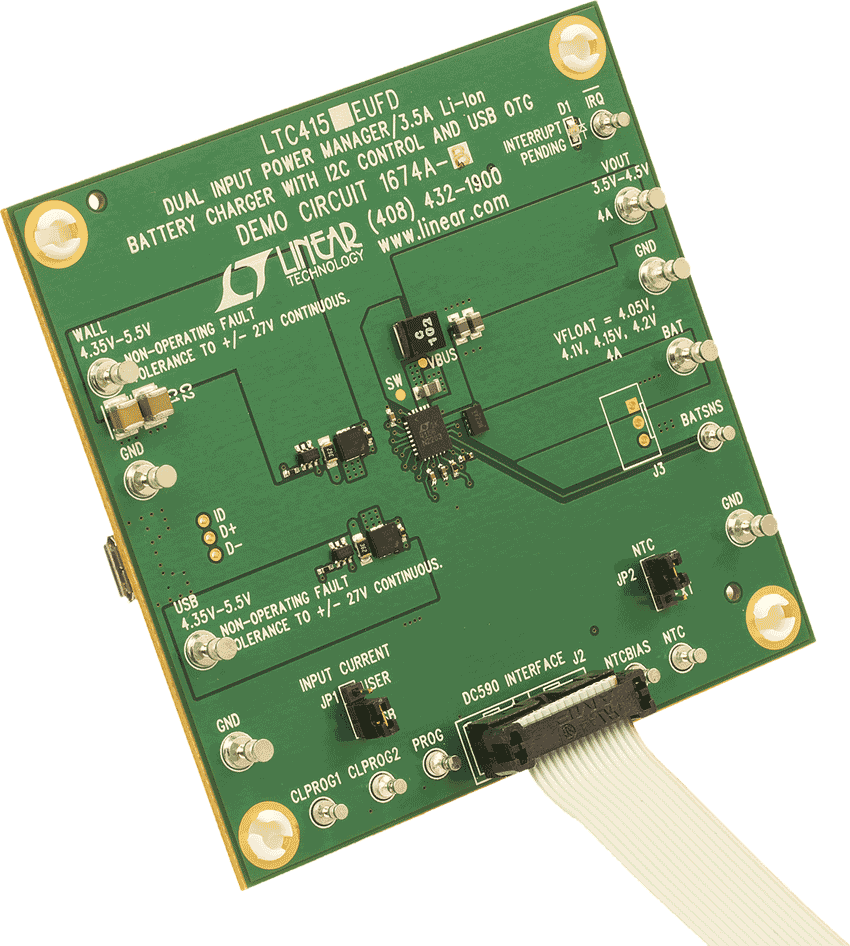

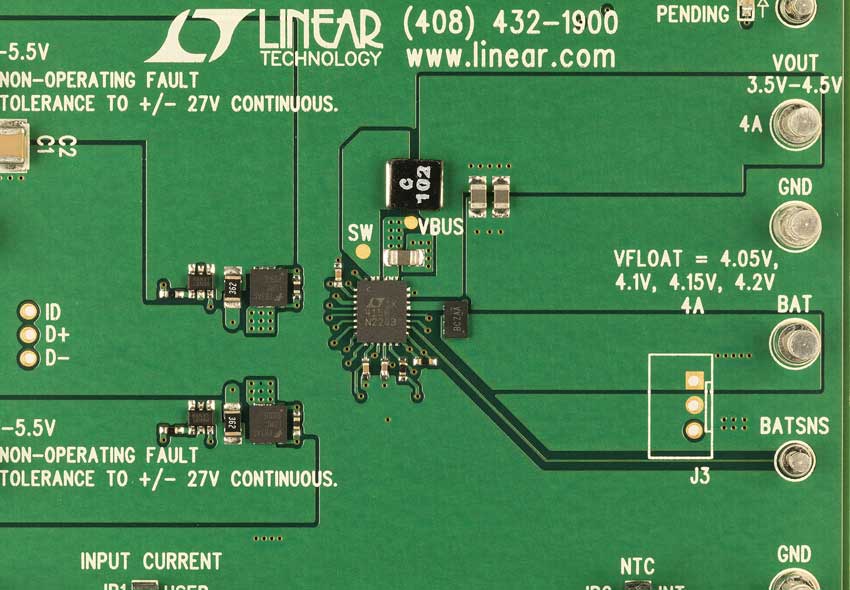

DC1674A-B - Demo Manual3/27/2012
Product Recommendations
LTC4156 Companion Parts
Recommended µModule Isolator
Recommended Related Parts
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LTC4156EUFD#PBF | Material Declaration | Reliability Data | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| LTC4156EUFD#TRPBF | Material Declaration | Reliability Data | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| LTC4156IUFD#PBF | Material Declaration | Reliability Data | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| LTC4156IUFD#TRPBF | Material Declaration | Reliability Data | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| Wafer Fabrication Data | R540 Reliability Data |
