LTC4362-1
LTC4362-2

1.2A Overvoltage/Overcurrent Protector

Data Sheet
Rev. B
icon-recommended Recommended for New Designs
Top
Datasheet
Data Sheet Rev. B
JP
User Guides
1 View All

Alternative Parts

LT4363
LT4363

High Voltage Surge Stopper with Current Limit

LTC4361-1 <br>LTC4361-2
LTC4361-1
LTC4361-2

Overvoltage/Overcurrent Protection Controller

Overview

Features and Benefits

  • 2.5V to 5.5V Operation
  • Overvoltage Protection Up to 28V
  • Internal 40mΩ N-Channel MOSFET and 31mΩ RSENSE
  • Avalanche Rated MOSFET Requires No Input Capacitor or TVS for Most Applications

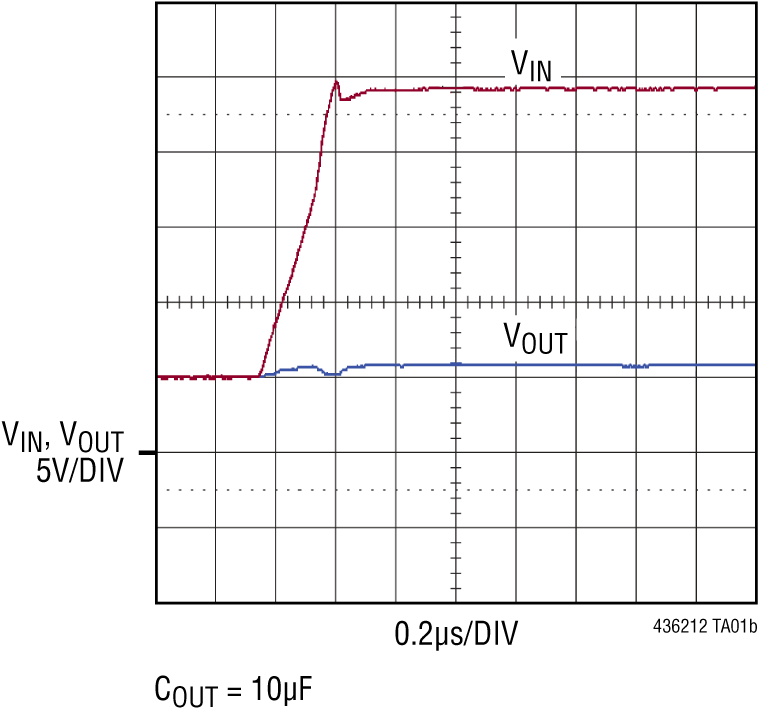

  • <1μs Overvoltage Turn-Off, Gentle Shutdown
  • 2% Accurate 5.8V Overvoltage Threshold
  • 20% Accurate 1.5A Overcurrent Threshold
  • Input Withstands Up to ±25kV HBM ESD with 1μF COUT
  • Controlled Power-Up dV/dt Limits Inrush Current
  • Reverse Voltage Protection Driver
  • Low Current Shutdown
  • Latchoff (LTC4362-1) or Auto-Retry (LTC4362-2) After Overcurrent

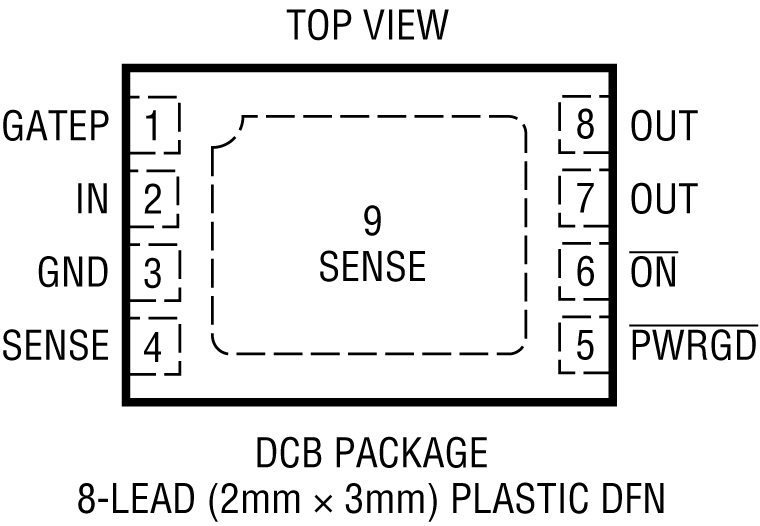

  • Available in 8-Lead DFN 2mm × 3mm Package

Product Details

The LTC4362 monolithic overvoltage/overcurrent protector safeguards 2.5V to 5.5V systems from power supply overvoltage. It is designed for portable devices with multiple power supply options including wall adaptors, car battery adaptors and USB ports.

The LTC4362 controls an internal 40mΩ N-channel MOSFET in series with the input power supply. During overvoltage transients, the LTC4362 turns off the MOSFET within 1μs, isolating downstream components from the input supply. In most applications, the LTC4362 rides through inductive cable transients without requiring transient voltage suppressors or other external components. An internal current sense resistor is used to implement overcurrent protection.

The LTC4362 has a delayed start-up at plug-in and controlled dV/dt ramp-up for inrush current limiting. A PWRGD pin provides power good monitoring for VIN. The LTC4362 features a soft-shutdown controlled by the ON pin and drives an optional external P-channel MOSFET for negative voltage protection. Following an overvoltage condition, the LTC4362 automatically restarts with a 130ms delay. After an overcurrent fault, the LTC4362-1 remains off while the LTC4362-2 automatically restarts after a 130ms delay.

Applications

  • USB Protection
  • Handheld Computers
  • Cell/Smart Phones
  • MP3/MP4 Players
  • Digital Cameras

Product Categories

Markets and Technologies

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

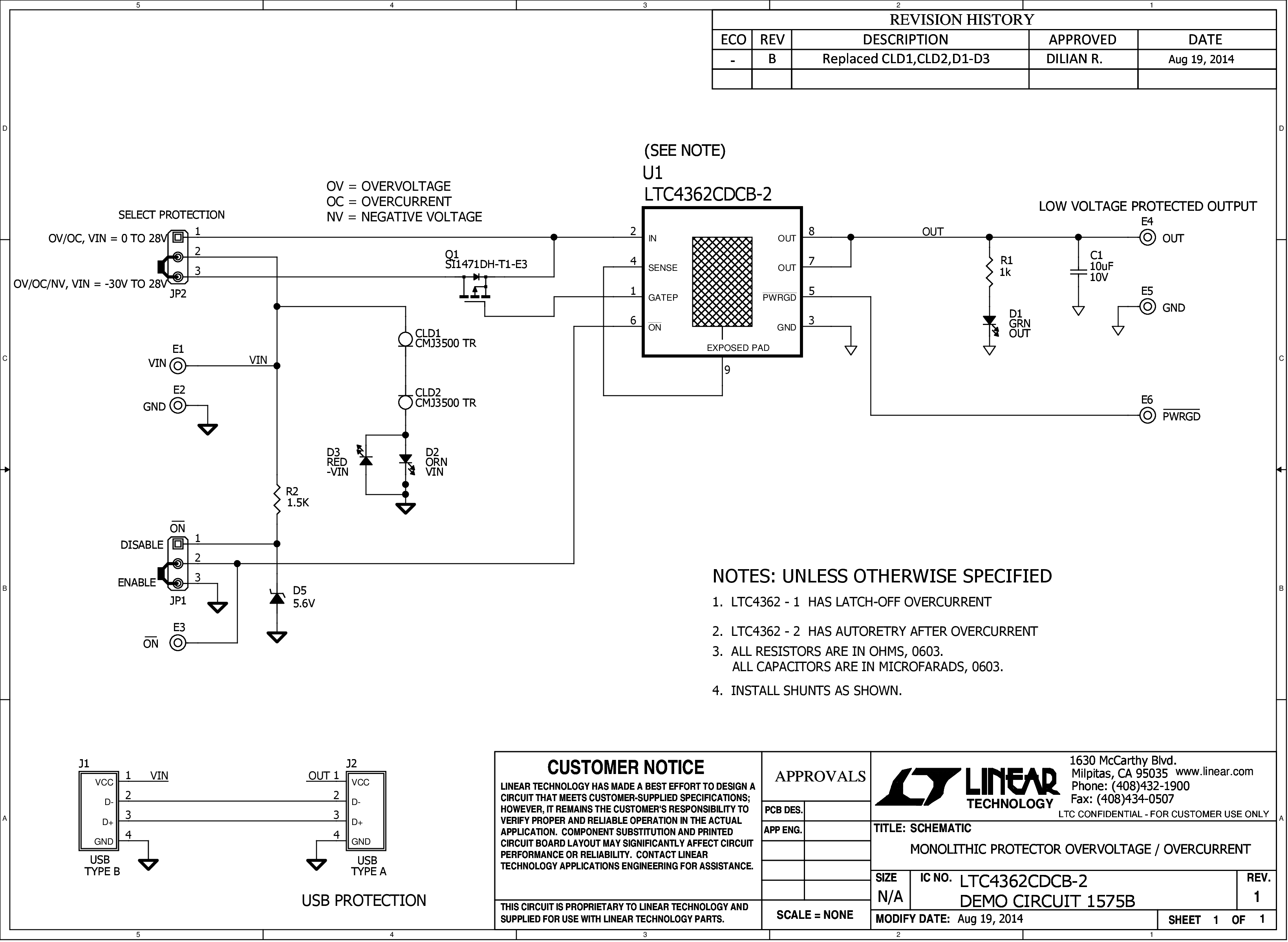

Evaluation Kits (1)

Documentation

Tools & Simulations

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

LTspice

Models for the following parts are available in LTspice:

LTC4362-1
LTC4362-2
