LTC4061

Standalone Linear Li-Ion Battery Charger with Thermistor Input

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $2.66
Features
  • Charge Current Programmable Up to 1A
  • Charges Single-Cell Li-Ion Batteries Directly from USB Port
  • Preset Charge Voltage with ±0.35% Accuracy
  • Thermistor Input for Temperature Qualified Charging
  • Input Supply Present Logic Output
  • Thermal Regulation Maximizes Charge Rate Without Risk of Overheating
  • Programmable Charge Current Detection/ Termination
  • Programmable Charge Termination Timer
  • Smart Pulsing Error Feature
  • SmartStart™ Prolongs Battery Life
  • 20μA Charger Quiescent Current in Shutdown
  • Available in a Low Profile (0.75mm) 10-Lead (3mm × 3mm) DFN Package
Additional Details
show more Icon

The LTC4061 is a full-featured, flexible, standalone linear charger for single-cell Lithium-Ion batteries. It is capable of operating within USB power specifications.

Both programmable time and programmable current based termination schemes are available. Furthermore, the CHRG open-drain status pin can be programmed to indicate the battery charge state according to the needs of the application. Additional safety features designed to maximize battery lifetime and reliability include NTC battery temperature sensing and the SmartStart charging algorithm.

No external sense resistor or external blocking diode is required for charging due to the internal MOSFET architecture. Internal thermal feedback regulates the charge current to maintain a constant die temperature during high power operation or high ambient temperature conditions. The charge current is programmed with an external resistor. With power applied, the LTC4061 can be put into shutdown mode to reduce the supply current to 20μA and the battery drain current to less than 5μA.

Other features include smart recharge, USB C/5 current programming input, undervoltage lockout and AC Present logic output.


   Float Voltage (V)
LTC4061   4.2V
LTC4061-4.4    4.4V

Applications

  • Handheld Computers
  • Portable MP3 Players
  • Digital Cameras
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $2.66
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC4061

Documentation

6
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Data Sheet
  • User Guide
  • Application Note
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 07/22/2010
English

LTC4061: Standalone Linear Li-Ion Battery Charger with Thermistor Input Data Sheet

Open PDF File

redirect
273.00K
download

Download PDF

PDF Vector

PDF

UPDATED 12/21/2010
Japanese

LTC4061: サーミスタ入力を装備したスタンドアロン・リニア・リチウムイオン・バッテリ・チャージャ データシート

Open PDF File

redirect
2.00M
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/27/2018
English
R402 Reliability Data redirect icon

111.66 K

download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English
DC788A - Demo Manual redirect icon

534.00K

download

Download PDF

Application Note

2

PDF Vector

HTML

UPDATED 06/01/2020
English
Reverse Voltage Protection for Battery Chargers redirect icon

PDF Vector

HTML

UPDATED 06/01/2020
Chinese
电池充电器的反向电压保护 redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC4061EDD#PBF 10-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC4061EDD#TRPBF 10-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

Dual-Supply Monitors1
LTC2960
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

36V Nano-Current Two-Input Voltage Monitor

Low Voltage Hot Swap Controllers1
LTC4361-1
LTC4361-2
popup image
Cart

Overvoltage/Overcurrent Protection Controller

PowerPath, Ideal Diodes, and Load Switches1
LTC4412
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Low Loss PowerPath™ Controller in ThinSOT

Pushbutton Controllers1
LTC2955
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Pushbutton On/Off Controller with Automatic Turn-On

Evaluation Kit

Evaluation Kits 1

reference details image

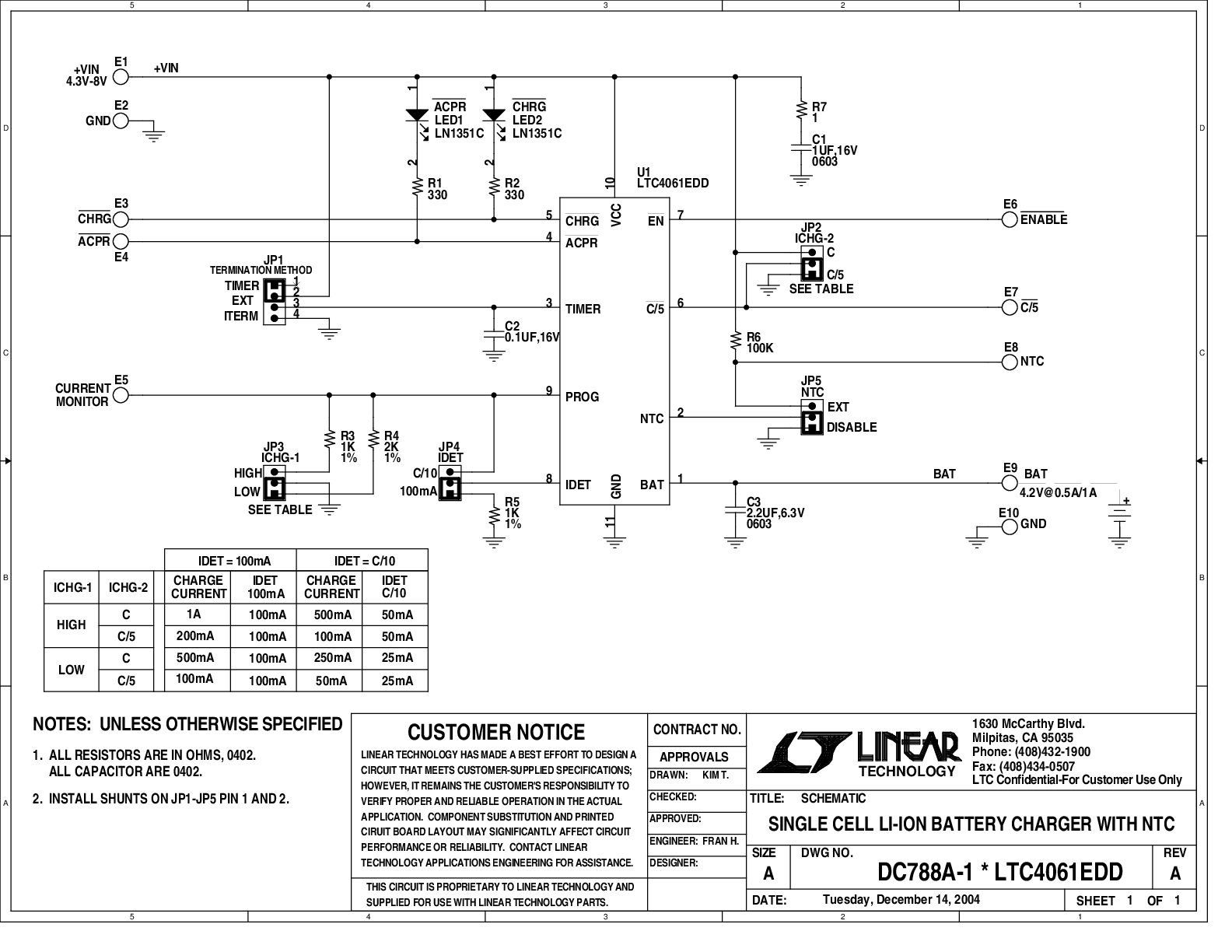

DC788A

LTC4061EDD | Single Cell Li-Ion Battery Charger, VIN = 4.3V to 8V, Batt = 4.2V @ 50mA to 1A

zoom

DC788A

LTC4061EDD | Single Cell Li-Ion Battery Charger, VIN = 4.3V to 8V, Batt = 4.2V @ 50mA to 1A

download icon

Download

 print icon

Print
DC788A
LTC4061EDD | Single Cell Li-Ion Battery Charger, VIN = 4.3V to 8V, Batt = 4.2V @ 50mA to 1A
Buy Now View Details

Product Detail

Demonstration circuit 788A is a complete constant-current, constant-voltage battery charger for one Lithium-Ion cell and featuring the LTC4061EDD. The demo board has an input voltage range of 4.3V to 8V, suitable for USB applications. Jumpers on the board allow charge currents from 50mA to 1A to be programmed and several charge termination methods to be used. Terminals are provided for adding a thermistor for sensing battery temperature, shutting down the charger, monitoring charge current and programming the minimum charge current level for termination (IDETECT).


The LTC4061 features an internal P-channel power MOSFET with a unique thermal feedback loop that reduces the output current under high ambient temperature and/or high power dissipation conditions. This feature allows the charger to provide higher charge currents under normal conditions and still provide safe charging under abnormal conditions such as high ambient temperature, high input voltage or low battery voltage.

Resources

pdf icon

ZIP

DC788A - Design File Download

723.00K

pdf icon

PDF

DC788A - Schematic Download

27.00K

pdf icon

PDF

DC788A - Demo Manual Download

534.00K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

DC788A

LTC4061EDD | Single Cell Li-Ion Battery Charger, VIN = 4.3V to 8V, Batt = 4.2V @ 50mA to 1A
