LTC4054-4.2

PRODUCTION

LTC4054-4.2

Standalone Linear Li-Ion Battery Charger with Thermal Regulation in ThinSOT

PRODUCTION

Complete Charge Cycle (750mAh Battery) slide

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $1.89

Features

Programmable Charge Current Up to 800mA
No MOSFET, Sense Resistor or Blocking Diode Required
Complete Linear Charger in ThinSOT^™ Package for Single Cell Lithium-Ion Batteries
Constant-Current/Constant-Voltage Operation with Thermal Regulation* to Maximize Charge Rate Without Risk of Overheating
Charges Single Cell Li-Ion Batteries Directly from USB Port
Preset 4.2V Charge Voltage with ±1% Accuracy
Charge Current Monitor Output for Gas Gauging*
Automatic Recharge
Charge Status Output Pin
C/10 Charge Termination
25µA Supply Current in Shutdown
2.9V Trickle Charge Threshold (LTC4054)
Available Without Trickle Charge (LTC4054X)
Soft-Start Limits Inrush Current
Available in 5-Lead SOT-23 Package

Additional Details

The LTC4054 is a complete constant-current/constant-voltage linear charger for single cell lithium-ion batteries. Its ThinSOT package and low external component count make the LTC4054 ideally suited for portable applications. Furthermore, the LTC4054 is specifically designed to work within USB power specifications.

No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.2V, and the charge current can be programmed externally with a single resistor. The LTC4054 automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached.

When the input supply (wall adapter or USB supply) is removed, the LTC4054 automatically enters a low current state, dropping the battery drain current to less than 2µA. The LTC4054 can be put into shutdown mode, reducing the supply current to 25µA.

Other features include charge current monitor, undervoltage lockout, automatic recharge and a status pin to indicate charge termination and the presence of an input voltage.


	Max Charge Current	Trickle Charge
LTC4054-4.2	800mA	Yes
LTC4054X-4.2	800mA	No
LTC4054L-4.2	150mA	Yes

Applications

Cellular Telephones, PDAs, MP3 Players
Charging Docks and Cradles
Bluetooth Applications

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $1.89

Technical Documents 5

LTC4054-4.2/LTC4054X-4.2: Standalone Linear Li-Ion Battery Charger with Thermal Regulation in ThinSOT Data Sheet 02/10/2010

R421 Reliability Data 03/23/2018

R415 Reliability Data 03/23/2018

DC569B - Demo Manual 01/26/2017

Reverse Voltage Protection for Battery Chargers 06/01/2020

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC4054ES5-4.2#TRMPBF	5-Lead TSOT-23	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC4054ES5-4.2#TRPBF	5-Lead TSOT-23	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

LTC4054ES5-4.2#TRMPBF
Pin/Package Drawing
5-Lead TSOT-23
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTC4054ES5-4.2#TRPBF
Pin/Package Drawing
5-Lead TSOT-23
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

Companion Parts 2

Parts	Product Life Cycle	Description
Low Voltage Hot Swap Controllers1
LTC4361-1 LTC4361-2		Overvoltage/Overcurrent Protection Controller
PowerPath, Ideal Diodes, and Load Switches1
LTC4417	RECOMMENDED FOR NEW DESIGNS	Prioritized PowerPath^™ Controller

DC569B

LTC4054ES5-4.2 | Li-Ion Linear Battery Charger, 4.25V ≤ VIN ≤ 10V, 1-Cell @ 450mA/600mA ICHARGE

DC569B

LTC4054ES5-4.2 | Li-Ion Linear Battery Charger, 4.25V ≤ VIN ≤ 10V, 1-Cell @ 450mA/600mA ICHARGE

Buy Now View Details

Product Detail

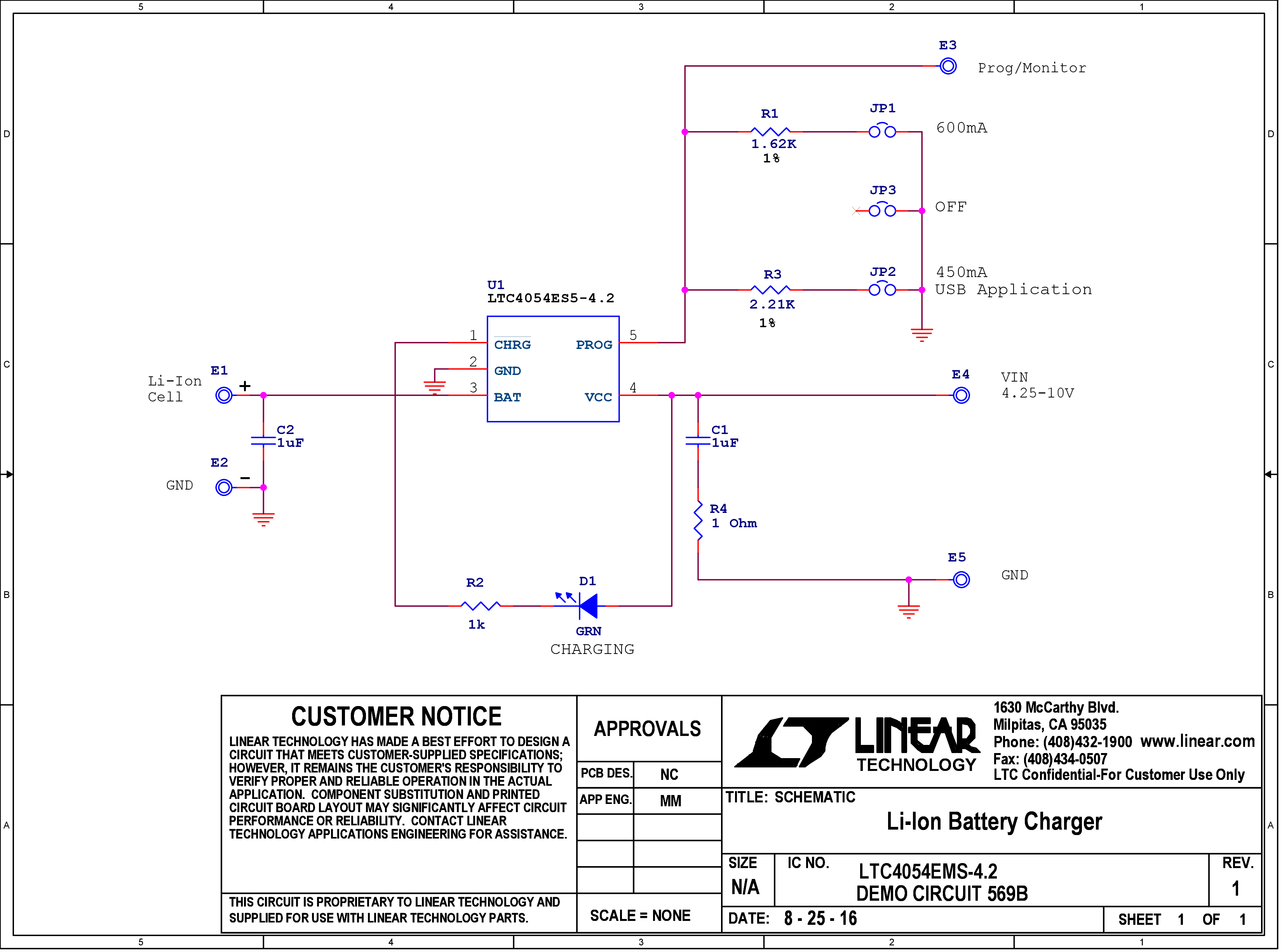

Demonstration circuit 569 is a single cell Li-Ion linear charger in a SOT-23. Charge rates as high as 600mA can be achieved due to the LTC4054’s internal die temperature control loop that prevents excessive PCB heating under worst-case conditions. The user is provided with a control jumper to select between OFF/450mA/600mA charge rates. The reduced charge rate is suitable for USB applications. A charge LED illuminates while the charger is charging the battery.

Resources

PDF

DC569B - Demo Manual

777.00K

PDF

DC569B - Schematic

117.00K

ZIP

DC569B - Design Files

1.00M

DC569B

LTC4054ES5-4.2 | Li-Ion Linear Battery Charger, 4.25V ≤ VIN ≤ 10V, 1-Cell @ 450mA/600mA ICHARGE

LTspice 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
