LTC3871

Bidirectional PolyPhase Synchronous Buck or Boost Controller

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.C)
Documentation View All Documentation
LTspice LTC3871 - Step-Down (Buck) Regulators Download 8.64 KB LTspice LTC3871 Demo Circuit - High Power PolyPhase Bi-Directional (Buck Mode) Converter (30-75V to 12V @ 30A) Download 12 KB LTspice LTC3871 Demo Circuit - High Power PolyPhase Bi-Directional (Boost Mode) Converter (10-13V to 48V @ 7.5A) Download 12.08 KB
Part Models 12
1ku List Price Starting From $6.36
Features
  • Unique Architecture Allows Dynamic Regulation of Input Voltage, Output Voltage or Current
  • VHIGH Voltages Up to 100V
  • VLOW Voltages Up to 30V
  • Synchronous Rectification: Up to 97% Efficiency
  • ADI-Proprietary Advanced Current Mode Control
  • ±1% Voltage Regulation Accuracy Over Temperature
  • Accurate, Programmable Output Current Monitoring and Regulation for Both Buck and Boost Operation
  • Selectable Buck and Boost Current Sense Limits
  • Programmable DRVCC/EXTVCC Optimizes Efficiency
  • Programmable VHIGH UV and OV Thresholds
  • Programmable VLOW OV Threshold
  • Phase-Lockable Frequency: 60kHz to 460kHz
  • Multiphase/Multi-ICs Operation Up to 12 Phases
  • Selectable CCM/DCM Modes
  • Thermally Enhanced 48-Lead LQFP Package
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

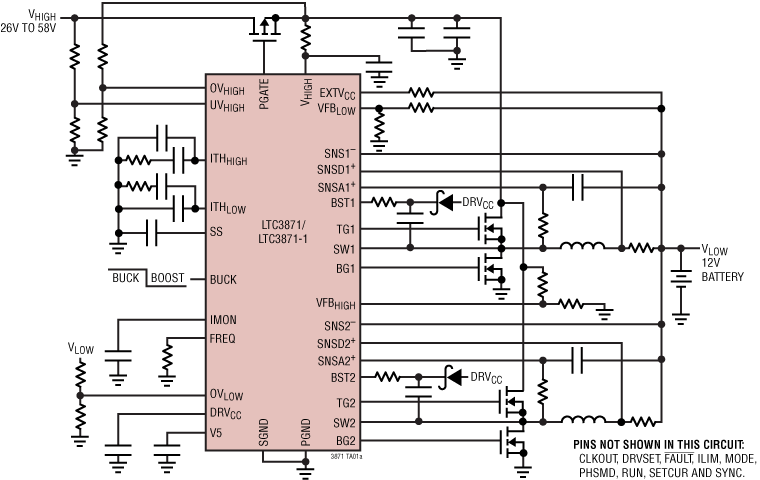

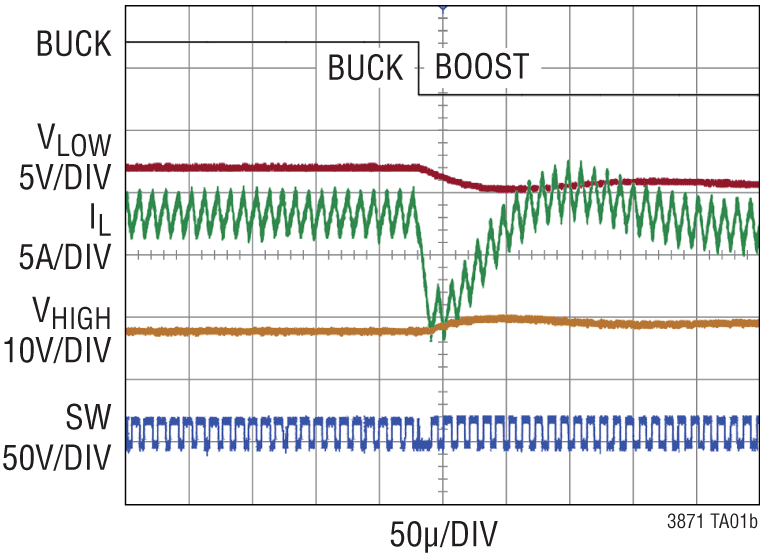

The LTC3871/LTC3871-1 is a high performance bidirectional buck or boost switching regulator controller that operates in either buck or boost mode on demand. It regulates in buck mode from VHIGH-to-VLOW and boost mode from VLOW-to-VHIGH depending on a control signal, making it ideal for 48V/12V automotive dual battery systems. An accurate current programming loop regulates the maximum current that can be delivered in either direction. The LTC3871/LTC3871-1 allows both batteries to supply energy to the load simultaneously by converting energy from one battery to the other.

Its proprietary constant-frequency current mode architecture enhances the signal-to-noise ratio enabling low noise operation and provides excellent current matching between phases. Additional features include discontinuous or continuous mode of operation, OV/UV monitors, independent loop compensation for buck and boost operation, accurate output current monitoring and overcurrent protection. The LTC3871 and LTC3871-1 have different current limit foldback characteristics.

Applications

  • Automotive 48V/12V Dual Battery Systems
  • Backup Power Systems
Show More Arrow image
file View Data Sheet (Rev.C)
Documentation View All Documentation
LTspice LTC3871 - Step-Down (Buck) Regulators Download 8.64 KB LTspice LTC3871 Demo Circuit - High Power PolyPhase Bi-Directional (Buck Mode) Converter (30-75V to 12V @ 30A) Download 12 KB LTspice LTC3871 Demo Circuit - High Power PolyPhase Bi-Directional (Boost Mode) Converter (10-13V to 48V @ 7.5A) Download 12.08 KB
Part Models 12
1ku List Price Starting From $6.36
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC3871

Documentation

8
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • Technical Articles
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 04/05/2024
English

LTC3871: Bidirectional PolyPhase Synchronous Buck or Boost Controller Data Sheet (Rev.C)

Open PDF File

redirect
1.00M
download

Download PDF

PDF Vector

PDF

UPDATED 11/22/2016
Japanese

LTC3871: 双方向PolyPhase同期整流式降圧/昇圧コントローラ データシート

Open PDF File

redirect
1.00M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/01/2016
English
DC2348A - Demo Manual redirect icon

1.00M

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R526 Reliability Data redirect icon

365.77 K

download

Download PDF

Technical Articles

4

PDF Vector

PDF

UPDATED 10/12/2016
English
48V/12V Dual Battery Automotive Systems Require Bi-Directional DC/DC Controllers for Optimum Performance redirect icon

3.00M

download

Download PDF

PDF Vector

HTML

UPDATED 04/01/2020
English
Bipolar, Bidirectional DC-to-DC Supply Sources and Sinks Current from 5 V to 24 V Input redirect icon

PDF Vector

HTML

UPDATED 04/01/2020
Chinese
通过5 V至24 V输入提供双极性、双向DC-DC流入和流出电流 redirect icon

PDF Vector

HTML

UPDATED 04/01/2020
Japanese
バイポーラ双方向DC-DC電源が5V～24V入力の電流をソース／シンク redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Technical Documents 5
show more Icon

Product Selector Card 2

High Voltage Non-Isolated Devices
80V to 150V Non-Isolated DC/DC

Analog Dialogue 1

How to Create a Dual-Output Voltage Rail with Source and Sink Functionality for ATE Applications

Thought Leadership Page 1

Sensor, Power Management, and Bus Solutions as Drivers of Global Megatrends

Video

2

Thumbnail Image

Video

2017-09-18

100V, Bidirectional Multiphase Synchronous Buck or Boost Controller

Learn More
Thumbnail Image

Video

2017-09-18

LTC3871 Bidirectional PolyPhase® Synchronous Buck or Boost Controller - Video Product Brief

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

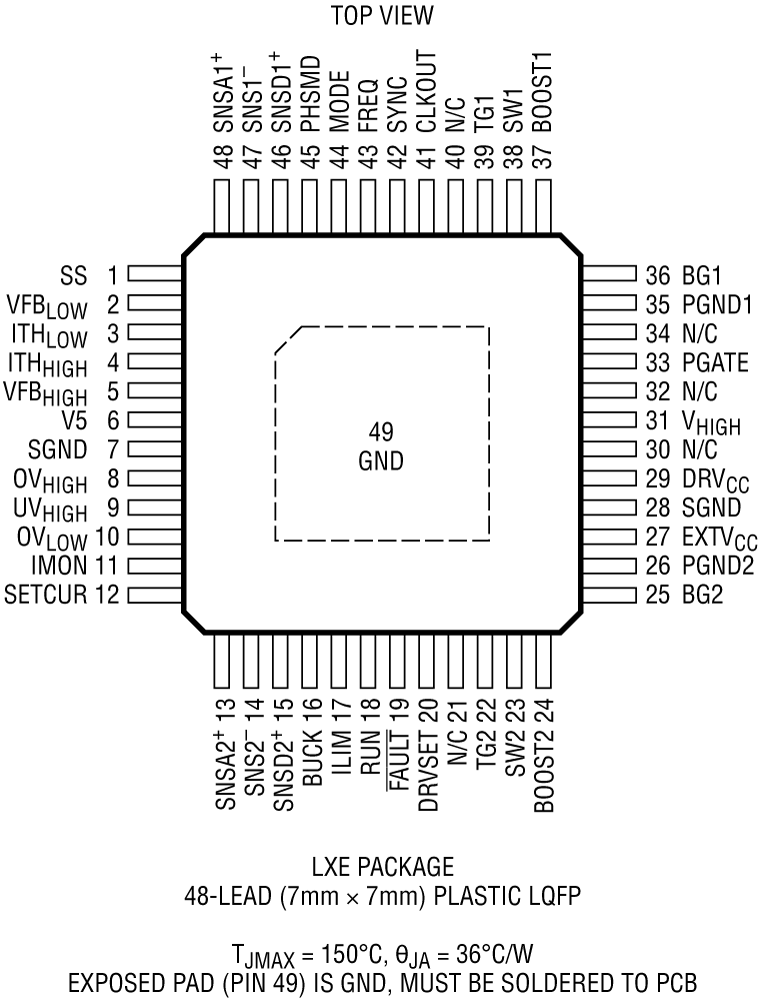

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3871ELXE#PBF 48-Lead LQFP (7mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3871ELXE-1#PBF 48-Lead LQFP (7mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3871ELXE-1#TRPBF 48-Lead LQFP (7mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3871HLXE#3ZZPBF 48-Lead LQFP (7mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3871HLXE#PBF 48-Lead LQFP (7mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3871HLXE#WPBF 48-Lead LQFP (7mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3871HLXE-1#PBF 48-Lead LQFP (7mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3871ILXE#PBF 48-Lead LQFP (7mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3871ILXE#WPBF 48-Lead LQFP (7mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3871ILXE-1#3OZPBF 48-Lead LQFP (7mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3871ILXE-1#3ZZPBF 48-Lead LQFP (7mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3871ILXE-1#PBF 48-Lead LQFP (7mm x 7mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 24, 2021

- 21_0046

Transfer of LQFP and LQFP_EP from AEM to AET

LTC3871ELXE#PBF

PRODUCTION

LTC3871ELXE-1#PBF

PRODUCTION

LTC3871ILXE#PBF

PRODUCTION

LTC3871ILXE-1#PBF

PRODUCTION

pdf

PCN21_0046_Form

external-icon

xls

Material_Report

Download

Qualification Results Summary

Other

Dec 17, 2021

- 21_0046

Transfer of LQFP and LQFP_EP from AEM to AET

LTC3871HLXE#PBF

PRODUCTION

LTC3871HLXE-1#PBF

PRODUCTION

pdf

PCN21_0046_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

pdf

Other

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 24, 2021

- 21_0046

arrow down

Transfer of LQFP and LQFP_EP from AEM to AET

LTC3871ELXE#PBF

PRODUCTION

LTC3871ELXE-1#PBF

PRODUCTION

LTC3871ILXE#PBF

PRODUCTION

LTC3871ILXE-1#PBF

PRODUCTION

pdf

PCN21_0046_Form

external-icon

xls

Material_Report

Download
Qualification Results Summary
Other
Dec 17, 2021

- 21_0046

arrow down

Transfer of LQFP and LQFP_EP from AEM to AET

LTC3871HLXE#PBF

PRODUCTION

LTC3871HLXE-1#PBF

PRODUCTION

pdf

PCN21_0046_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

pdf

Other

external-icon

Software & Part Ecosystem

Parts Product Life Cycle Description

High Voltage Hot Swap Controllers1
LTC4380
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Low Quiescent Current Surge Stopper

Surge Stopper, Overvoltage, and Overcurrent Protection1
LTC4368
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

100V UV/OV and Reverse Protection Controller with Bidirectional Circuit Breaker

Evaluation Kits 2

reference details image

DC2348A-B

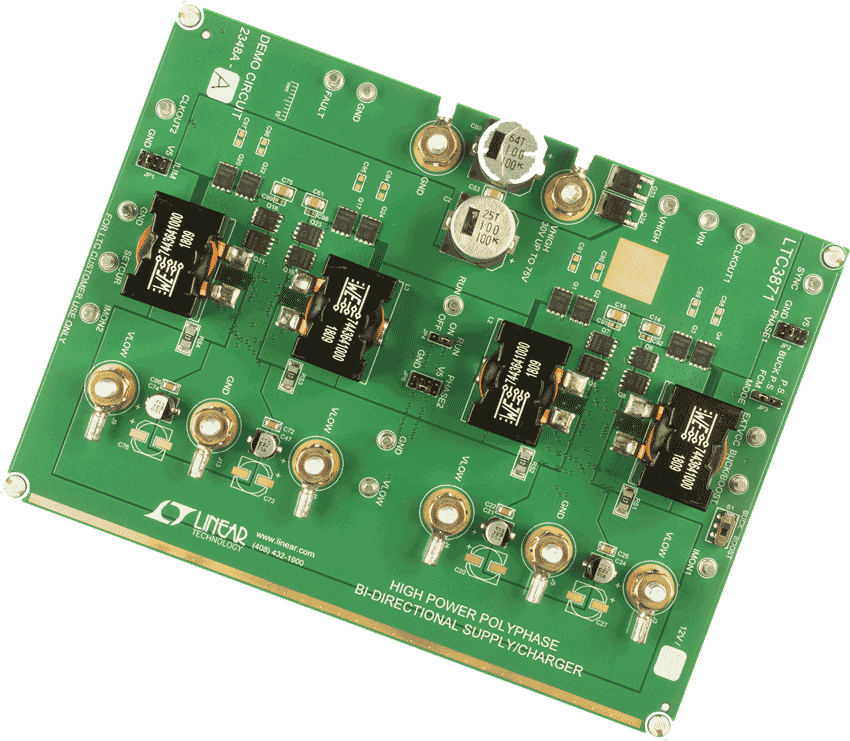

LTC3871HLXE#PBF Demo Board | Bidirectional Controller, Buck Mode: 30V ≤ VIN ≤ 75V, VOUT = 12V @ 30A; Boost Mode: 10V ≤ VIN ≤ 13V, VOUT = 48V @ 7.5A
