Overview

Features and Benefits

  • Supervises 6 Power Supplies
  • I2C Adjustable UV and OV Trip Points
  • Guaranteed Threshold Accuracy: ±1%
  • I2C/SMBus Interface
  • Internal EEPROM
  • 256 Programmable Thresholds per Channel
  • Up to Three Range Settings per Channel
  • Two General Purpose Inputs
  • Three General Purpose Inputs/Outputs
  • Programmable Output Delays
  • Supply Voltage Range, 3.4V to 13.9V
  • Supply Voltage Power Sharing from V1 to V4
  • 16-Lead 5mm × 4mm DFN and SSOP Packages

Product Details

The LTC2933 is an EEPROM configurable voltage supervisor which can simultaneously monitor up to six power supply voltage inputs. Each voltage detector offers I2C programmable over/undervoltage thresholds in various ranges and increments.

Two general purpose inputs (GPI) can be configured as programmable manual reset (MR), UV disable (UVDIS), margin (MARG) or auxiliary comparator (AUXC) inputs. Three general purpose pins (GPIO) can be configured for input or output operation. When configured as an input, a GPIO pin can be mapped to any other GPIO configured as output. The GPIO pins can also be configured as ALERT or fault outputs. Faults can be configured with programmable delay-on-release times. Output type and polarity are also configurable.

Status and history registers log faults and can be polled via the I2C interface. A fault log snapshot is also backed up in internal EEPROM. All parameters are programmable via the I2C interface. Configuration EEPROM supports autonomous operation without additional software.

Applications

  • High Availability Computer Systems
  • Network Servers
  • Telecom Equipment
  • Data Storage

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

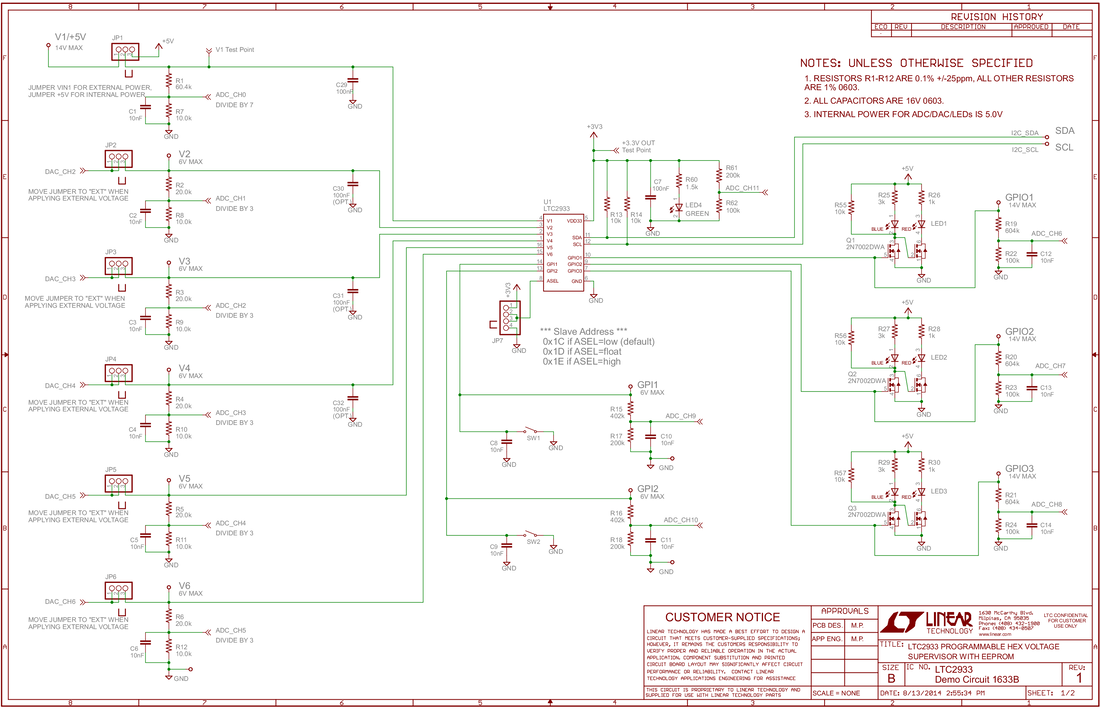

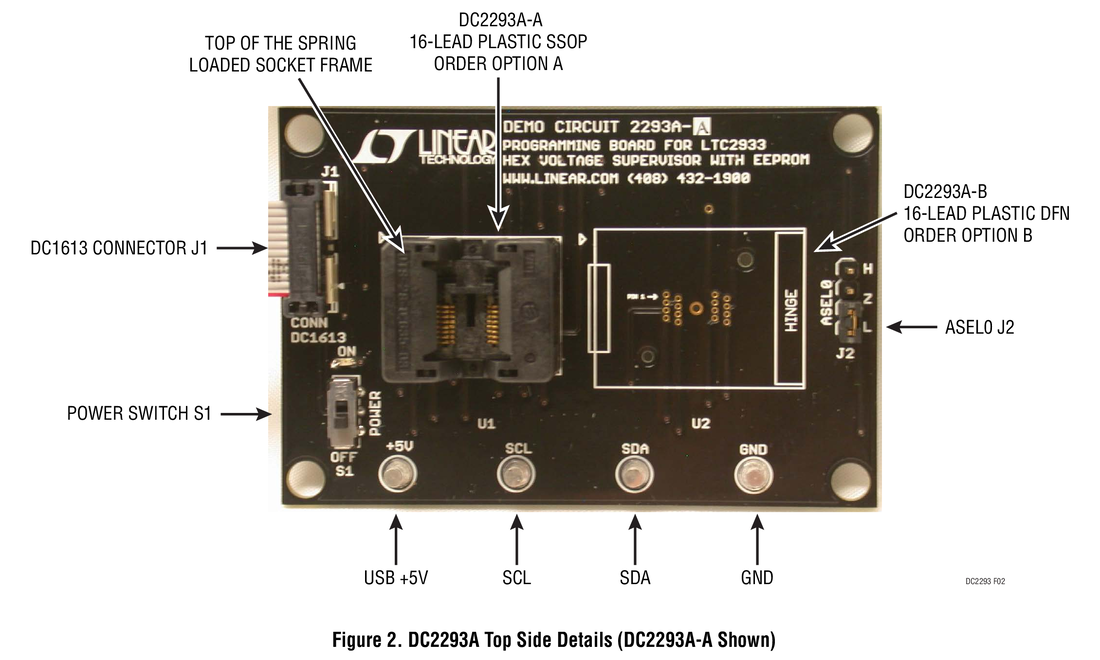

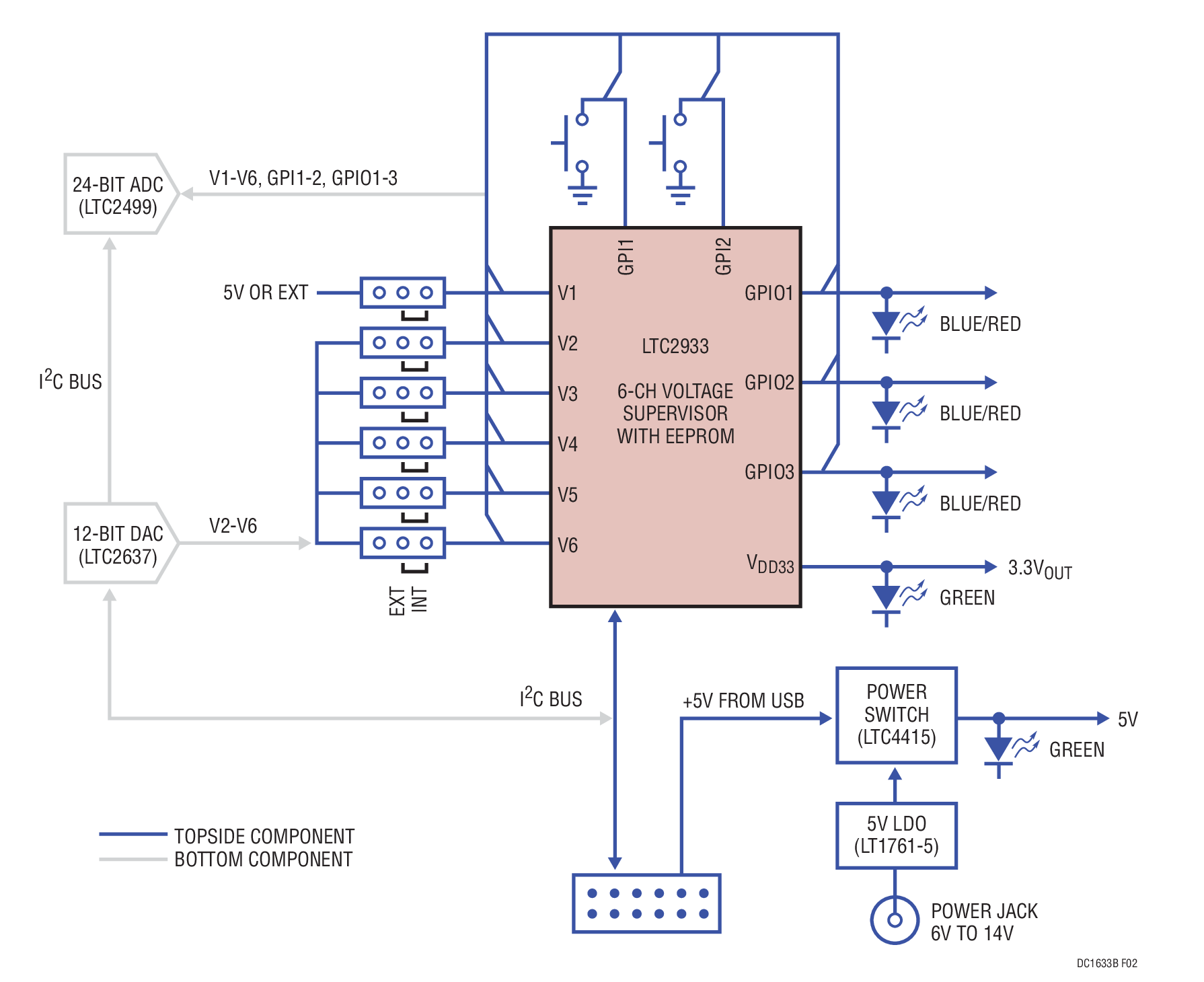

Evaluation Kits (3)

Documentation & Resources

  • View All (12)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (2)
  • Product Selector Card (4)
  • Videos (1)
  • Press Releases (1)
  • Technical Articles (2)
    • Document Type

    Tools & Simulations

    Linduino

    Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

    Linduino code repository on GitHub and instructions on how to use the code.

    Purchase Linduino

    Linduino

    Code Files

    LTC2933 - DC1633B.INO
    LTC2933 Linduino Header File
