Overview

Product Details

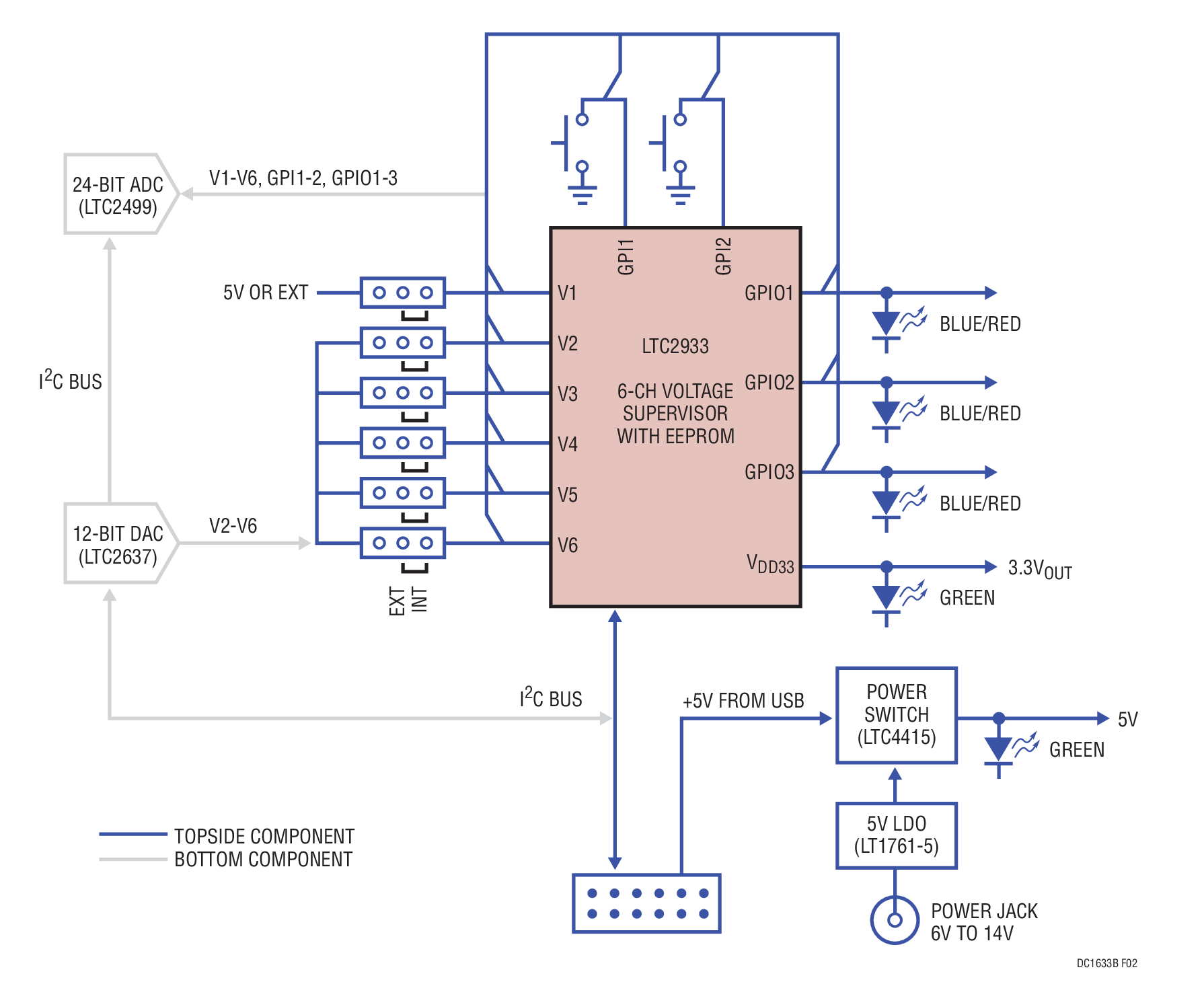

The DC1633B is a demonstration system that showcases the LTC2933, a 6-channel I2C/SMBus voltage supervisor with EEPROM. The LTC2933 simultaneously monitors up to six power supply voltages and detects under/overvoltage conditions. In addition the LTC2933 monitors two GPI pins and is able to drive three GPIO pins to indicate OV, UV, system reset, system alert, or other control signal.

Applicable Parts

Documentation & Resources

  • View All (4)
  • Design Tool (1)

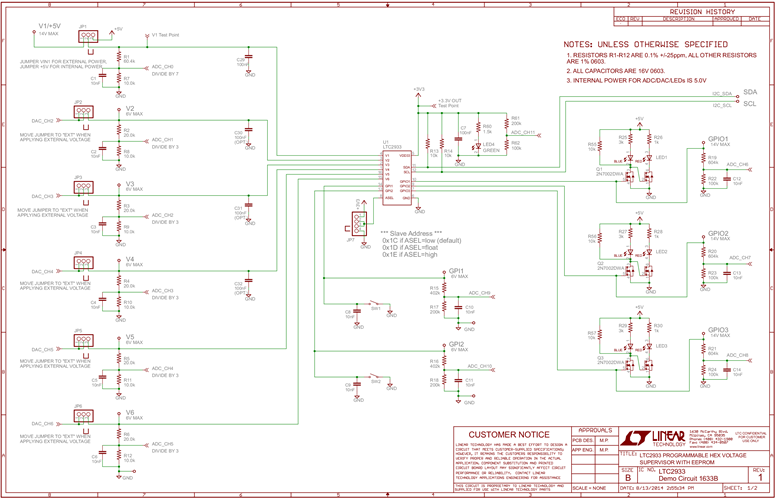

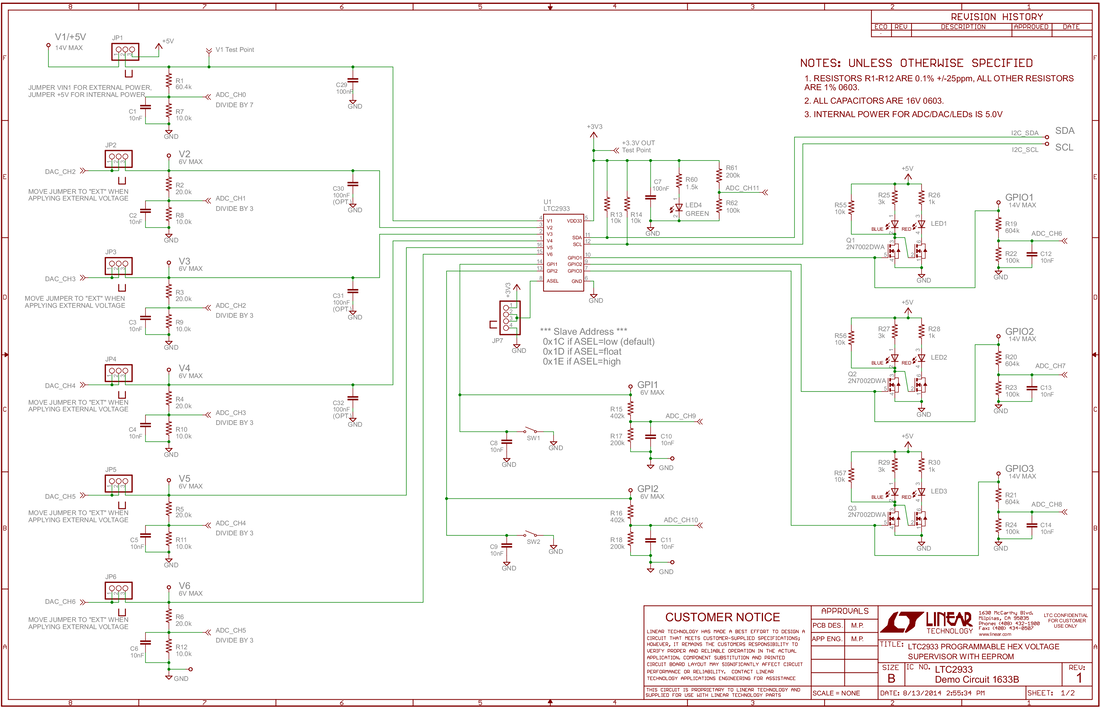

  • Demo Board Schematic (1)
  • User Guide (1)
  • Evaluation Design File (1)
    • Document Type

    Software

    Design Tool

    LTpowerPlay®
    LTpowerPlay® is a powerful, Windows-based development environment supporting Linear Technology's Digital Power System Management (PSM) products.

    Related Hardware (2)

    Controller Boards
