LTC2936
Programmable Hex Voltage Supervisor with EEPROM and Comparator Outputs
Top
Alternative Parts
Overview
Features and Benefits
- Supervises 6 Power Supplies
- I2C Adjustable UV and OV Trip Points
- Guaranteed Threshold Accuracy: ±1% (Maximum)
- I2C/SMBus Interface
- Internal EEPROM
- Six Comparator Outputs
- Fast Comparator Response Time: 7.5μs
- 256 Programmable Thresholds per Channel
- Three Range Settings per Channel
- Two General Purpose Inputs
- Three General Purpose Inputs/Outputs
- Programmable Output Delays
- Can Be Powered from 3.3V, or 3.4V to 13.9V
- 24-Lead 4mm × 5mm QFN and SSOP Packages
Product Details
The LTC2936 is an EEPROM configurable voltage supervisor which can simultaneously monitor up to six power supply voltage inputs. Each voltage detector offers I2C programmable overvoltage/undervoltage thresholds in various ranges and increments and a dedicated comparator output.
Two general purpose inputs (GPI) can be configured as programmable manual reset (MR), UV disable (UVDIS), margin (MARG), Write Protect (WP) or auxiliary comparator (AUXC) inputs. Three general purpose pins (GPIO) can be configured for input or output operation. When configured as an input, a GPIO pin can be mapped to any other GPIO configured as output. The GPIO pins can also be configured as ALERT or fault outputs. Faults can be configured with programmable delay-on-release times. Output type and polarity are also configurable.
Status and history registers log faults and can be polled via the I2C interface. A fault snapshot is also backed up in internal EEPROM. All parameters are programmable via the I2C interface. Configuration EEPROM supports autonomous operation without additional software.
Applications
- High Availability Computer Systems
- Network Servers
- Telecom Equipment
- Data Storage
Product Categories
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (3)
Documentation & Resources
-
R567 Reliability Data3/23/2018
-

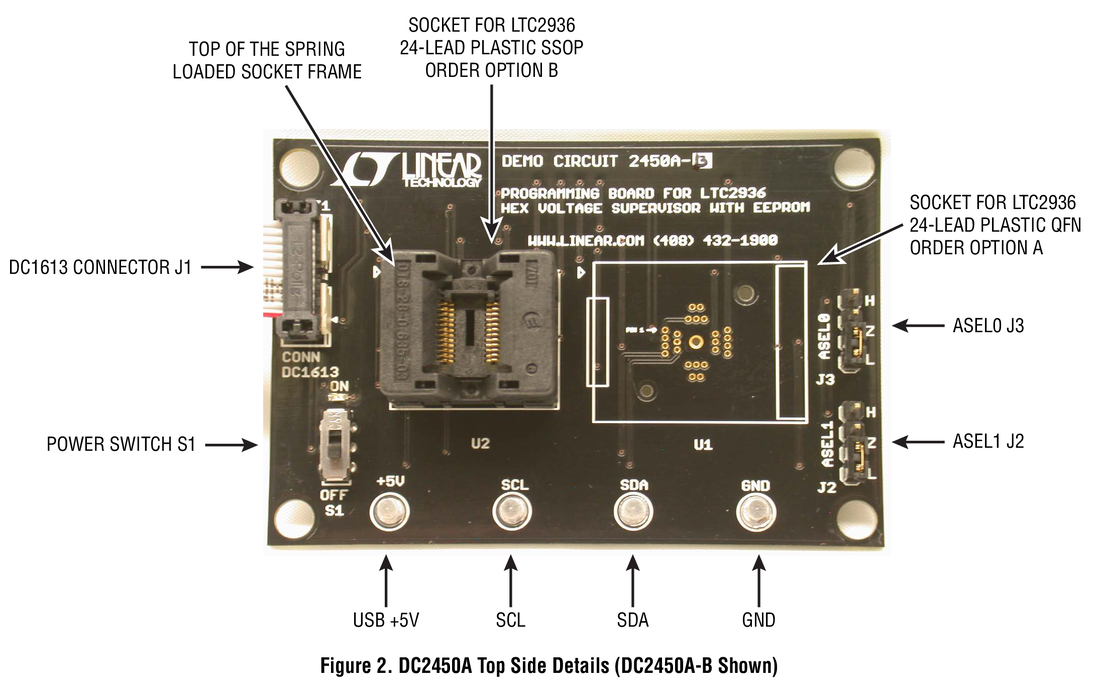

DC2450A - Demo Manual1/25/2016
-

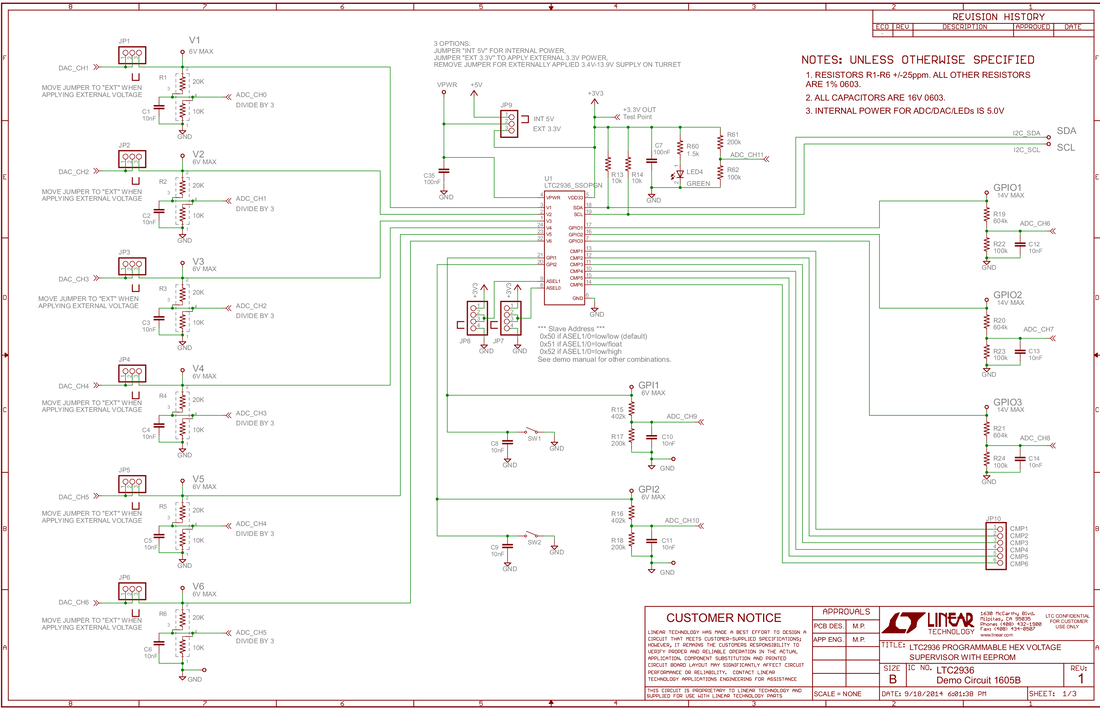

DC1605B - Demo Manual3/25/2015
-
Power Supply Sequencing Simplified8/1/2016
-
I2C Programmable Multichannel Voltage Supervisors with EEPROM4/1/2015 LT Journal
Tools & Simulations
Linduino
Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.
Linduino code repository on GitHub and instructions on how to use the code.
Product Recommendations
LTC2936 Companion Parts
Recommended Related Parts
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LTC2936CGN#PBF | Material Declaration | Reliability Data | 24-Lead SSOP (Narrow 0.15 Inch) | |
| LTC2936CGN#TRPBF | Material Declaration | Reliability Data | 24-Lead SSOP (Narrow 0.15 Inch) | |
| LTC2936CUFD#PBF | Material Declaration | Reliability Data | 24-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| LTC2936CUFD#TRPBF | Material Declaration | Reliability Data | 24-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| LTC2936IGN#PBF | Material Declaration | Reliability Data | 24-Lead SSOP (Narrow 0.15 Inch) | |
| LTC2936IGN#TRPBF | Material Declaration | Reliability Data | 24-Lead SSOP (Narrow 0.15 Inch) | |
| LTC2936IUFD#PBF | Material Declaration | Reliability Data | 24-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| LTC2936IUFD#TRPBF | Material Declaration | Reliability Data | 24-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| Wafer Fabrication Data | R567 Reliability Data |
