LTC2937
Programmable Six Channel Sequencer and Voltage Supervisor with EEPROM
Show More
Not the part you were looking for?
3
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features

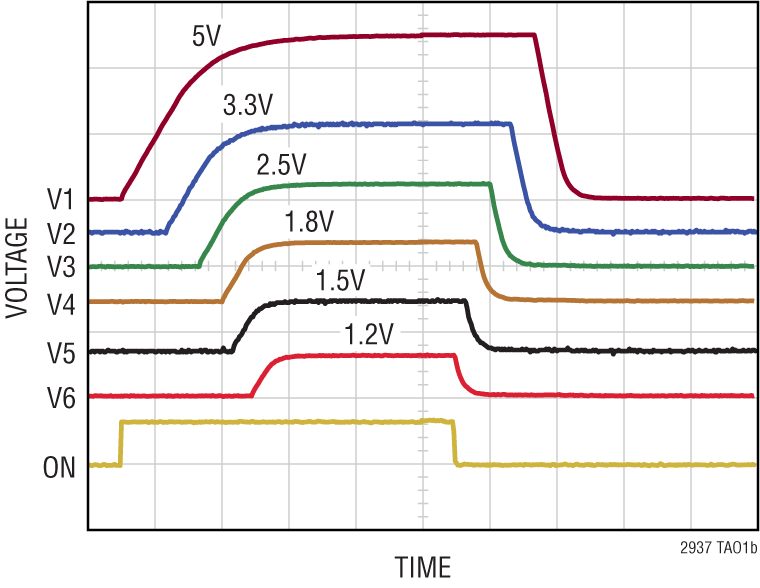

- Time and Event Based Sequencing
- 12 Programmable Undervoltage (UV) and Overvoltage (OV) Comparators: ±0.75% Accuracy
- I2C/SMBus Interface
- Stalled Power Supply Detection
- Single Wire Synchronization Allows Controller Expansion to 50 Devices (300 Power Supplies)
- Configuration and Fault Logging in EEPROM
- EEPROM Specified Over Entire Temperature Range, Rated to 125°C, 10k Writes, 20yr Retention
- Supported by LTpowerPlay® GUI
- Fault and System Status Registers
- Reset Output with Programmable Delay
- Wide Input Supply Voltage Range: 2.9V to 16.5V

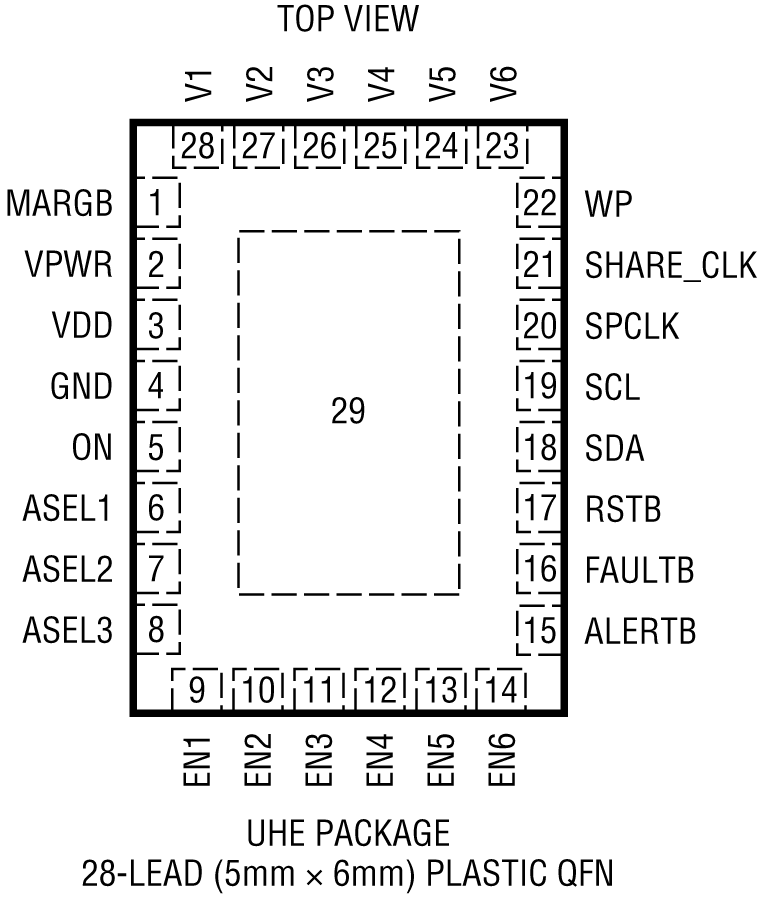

- 28-Lead QFN (5mm × 6mm) Package
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

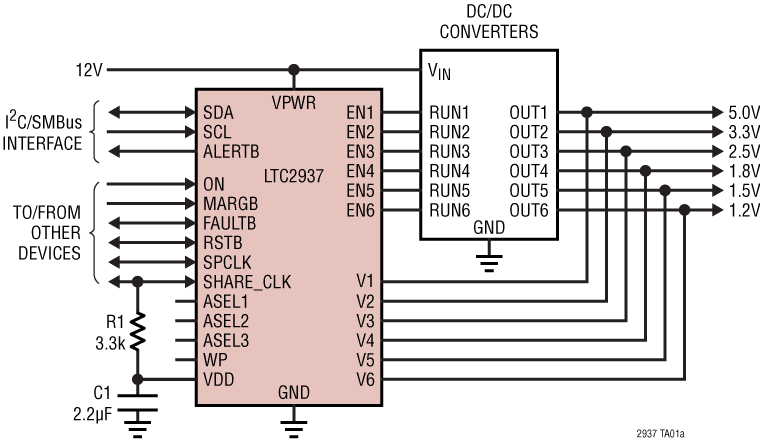

The LTC2937 is a 6-channel power supply sequencer and voltage supervisor. Supplies are enabled or disabled with precise user controlled order and time spacing. To detect power supply output faults during sequencing and monitoring, the LTC2937 accurately monitors supply turn-on/-off delays and output voltage levels. In the event of a fault, response actions include complete power supply shutdown and optional restarts. Root cause of power faults are logged to EEPROM. For systems with high supply count, a simple single wire connection between multiple LTC2937 devices allows sequencing expansion to 300 supplies. After successful sequencing and supply voltage stabilization, the reset output pulls high to initiate microprocessor or other system activity. To accommodate supply margin testing, the reset output can be disabled. Upon supply turn-off, integrated current sources are available as needed to discharge slowly decaying supplies. Configuration EEPROM supports autonomous operation without software.
Applications
- Network Servers
- Data Storage Systems
- Telecom Equipment
- High Availability Computer Systems
3
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
LTC2937
Documentation
Filters
1 Applied
-
All
-
Technical Articles
-
Reliability Data
-
Application Note
-
User Guide
-
Design Note
-
Data Sheet
-
All
-
English
-
Japanese
Data Sheet
1
Technical Articles
1
Reliability Data
1
122.1 K
Application Note
1
User Guide
2
647.00K
4.00M
Design Note
2
444.00K
Documentation
Data Sheet 1
Reliability Data 1
User Guide 2
Application Note 1
Design Note 1
Technical Articles 1
Product Selector Card 5
Webcast 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC2937CUHE#PBF |
28-Lead QFN (5mm x 6mm x 0.75mm w/ EP)
|
|
|
| LTC2937CUHE#TRPBF |
28-Lead QFN (5mm x 6mm x 0.75mm w/ EP)
|
|
|
| LTC2937HUHE#PBF |
28-Lead QFN (5mm x 6mm x 0.75mm w/ EP)
|
|
|
| LTC2937HUHE#TRPBF |
28-Lead QFN (5mm x 6mm x 0.75mm w/ EP)
|
|
|
| LTC2937IUHE#PBF |
28-Lead QFN (5mm x 6mm x 0.75mm w/ EP)
|
|
|
| LTC2937IUHE#TRPBF |
28-Lead QFN (5mm x 6mm x 0.75mm w/ EP)
|
|
|
| LTC2937MPUHE#PBF |
28-Lead QFN (5mm x 6mm x 0.75mm w/ EP)
|
|
|
| LTC2937MPUHE#TRPBF |
28-Lead QFN (5mm x 6mm x 0.75mm w/ EP)
|
|
- LTC2937CUHE#PBF
- Pin/Package Drawing
-
28-Lead QFN (5mm x 6mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2937CUHE#TRPBF
- Pin/Package Drawing
-
28-Lead QFN (5mm x 6mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2937HUHE#PBF
- Pin/Package Drawing
-
28-Lead QFN (5mm x 6mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2937HUHE#TRPBF
- Pin/Package Drawing
-
28-Lead QFN (5mm x 6mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2937IUHE#PBF
- Pin/Package Drawing
-
28-Lead QFN (5mm x 6mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2937IUHE#TRPBF
- Pin/Package Drawing
-
28-Lead QFN (5mm x 6mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2937MPUHE#PBF
- Pin/Package Drawing
-
28-Lead QFN (5mm x 6mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2937MPUHE#TRPBF
- Pin/Package Drawing
-
28-Lead QFN (5mm x 6mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Software & Part Ecosystem
| Parts | Product Life Cycle | Description | ||
|---|---|---|---|---|
|
Digital Power System Managers1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
4-Channel PMBus Power System Manager Featuring Accurate Input Current and Energy Measurement |
|||
|
Quad or More Supply Monitors1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
Programmable Hex Voltage Supervisor with EEPROM and Comparator Outputs |
|||
Evaluation Kits 2

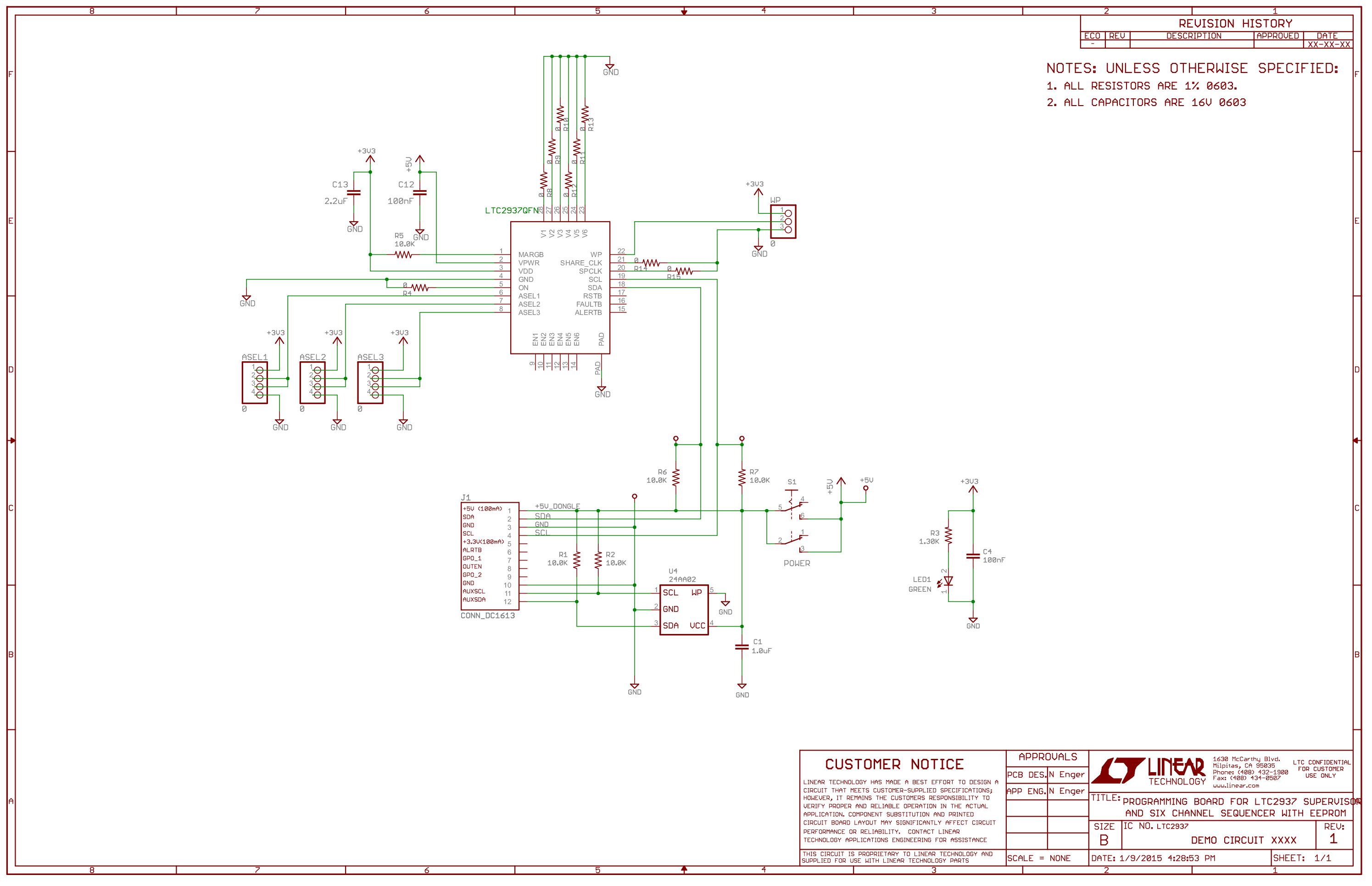

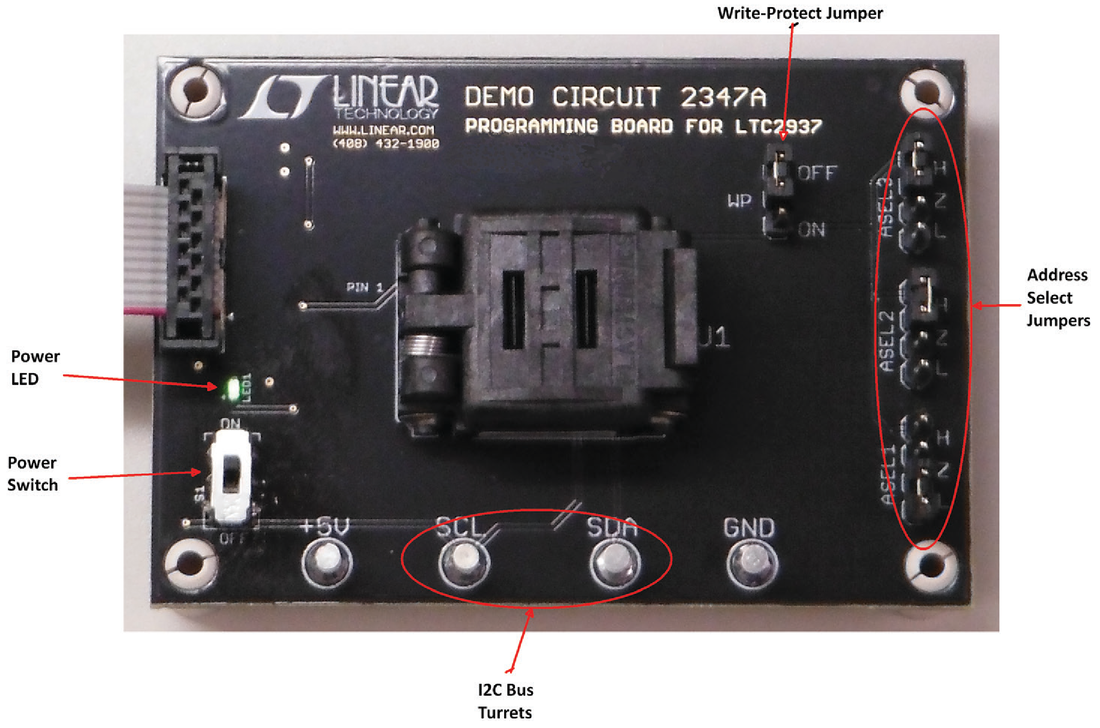

DC2347A
LTC2937 Socketed Programming Board [requires DC1613]
Product Detail
The DC2347A contains only those functions necessary to safely program and verify the LTC2937 configuration EEPROM. It serves no other purpose. The DC2347A holds the LTC2937 in a clamshell socket for convenient access and replacement of parts. The LTpowerPlay™ GUI software, running on a PC, provides a simple interface to program and verify the EEPROM with a user supplied configuration.
Resources

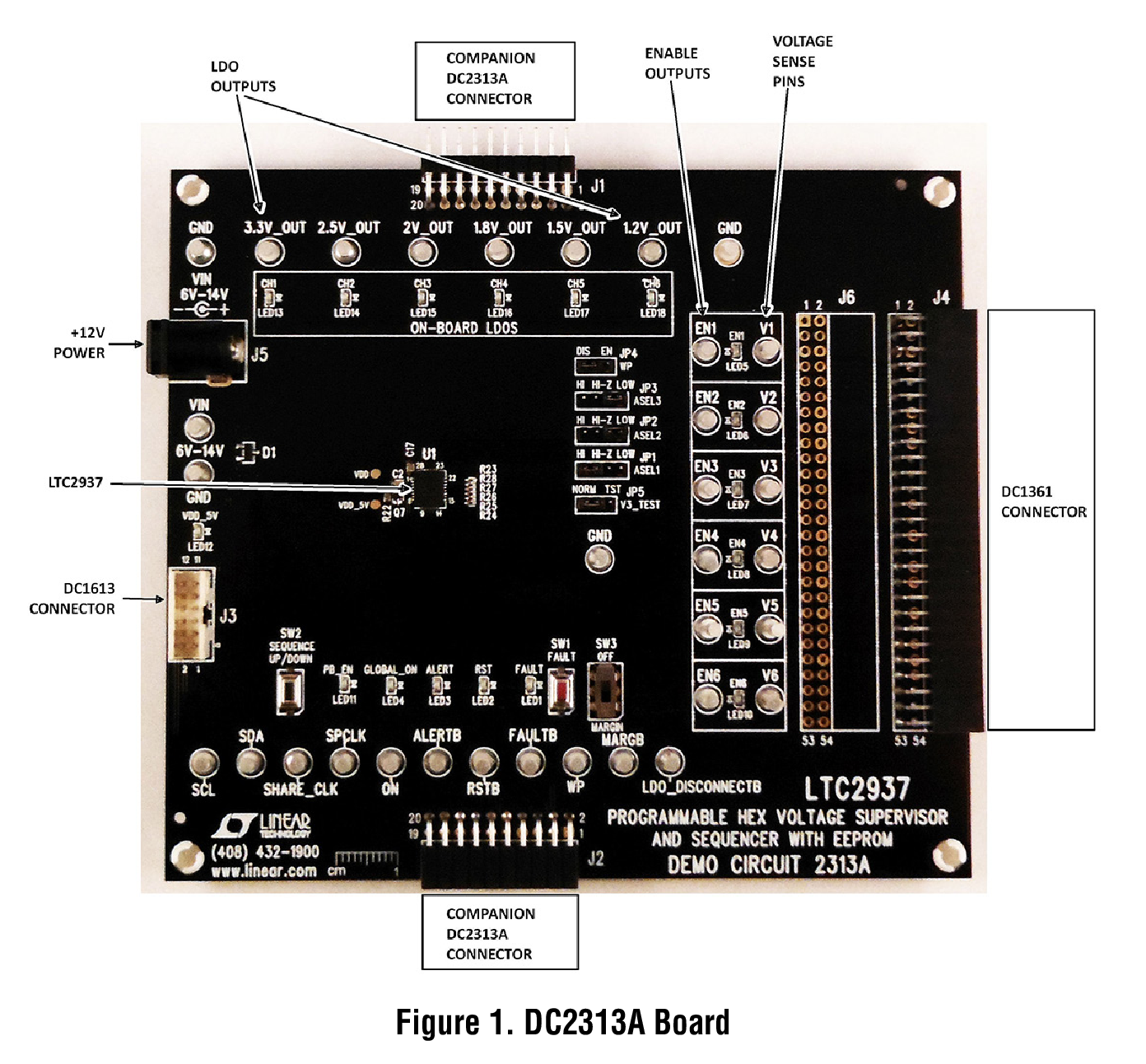

DC2313A
LTC2937 Demo Board | Programmable Six Channel Sequencer and Voltage Supervisor with EEPROM [requires DC1613]
Product Detail
Demonstration circuit 2313A showcases the LTC2937, a programmable six channel power supply sequencer and voltage supervisor.
The LTC2937 provides flexible sequence control for up to six power supplies. It enables and disables the supplies with configurable sequence order and time delays, monitors the supplies for power-up and power-down time, and for overvoltage and undervoltage. It cooperates with other LTC2937 parts in the system to coordinate power sequencing activities. It provides flexible fault response to autonomously supervise the power supplies, and powerful debug tools to diagnose any problem that causes a power- supply fault. It holds configuration in non-volatile EEPROM for completely automatic power system supervision.
Resources
Tools & Simulations 3
Linduino 2
Linduino
Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.
Linduino code repository on GitHub and instructions on how to use the code.
Linduino
LTpowerPlay®
Software Development Kit 1
Reference Designs 1
HTG-VSL1
Versal PRIME /AI PCI Express Platform
Circuits from the lab
Info:Circuits from the lab
Features and Benefits
- Xilinx Versal™ AI Core and Prime series solves a broad range of industry-specific problems with performance and flexibility. Core use cases include storage acceleration, data center network acceleration, 5G xHaul and Passive optical networks.
- The HTG-VSL1 AI Core and Prime PCIe express platform allows easy and versatile functional expansion through two Vita 57.4 compliant High-Pin-Count FMC+ ports and one high-speed AcceleRate® port.
- Analog Devices, Inc. supports power delivery solutions for the HTG-VSL1 for the Versal AI Core and Versal Prime PCIe express platform. DC/DC μModule regulators are used on the HTG-VSL1 to power Xilinx FPGA and/or SoC rails as well as other system rails. These regulators are highly integrated solutions with built in controller, power FETs, inductors, and capacitors that simplify layout and provide robust power delivery performance.
- ADI provides supporting documentation including power schematics, layout, LTpowerPlanner® and applicable LTpowerPlay® configuration files to enable you to validate the power solution for your application seamlessly.
- For a complete list power designs and use cases, please contact your local FAE.
- Key Power DC DC Modules include:
- LTM4700 is a Dual 50A or Single 100A μModule Regulator with Digital Power System Management, PMBus
- LTM4638 is a 15A Step-Down DC/DC μModule Regulator
- LTM4625 is a 5A Step-Down DC/DC μModule Regulator
- LTM4632 is a Triple Output, Step-Down μModule Regulator for DDR-QDR4 Memory
- LTC2937 is a Programmable Six Channel Sequencer and Voltage Supervisor with EEPROM
