LTC1047

PRODUCTION

Dual Micropower Zero-Drift Operational Amplifier with Internal Capacitors

Part Models: 3
1ku List Price: Starting From $7.16

Viewing:

Overview

No External Components Required
Maximum Offset Voltage: 10µV
Maximum Offset Voltage Drift: 50nV/°C
Supply Current: 80µA

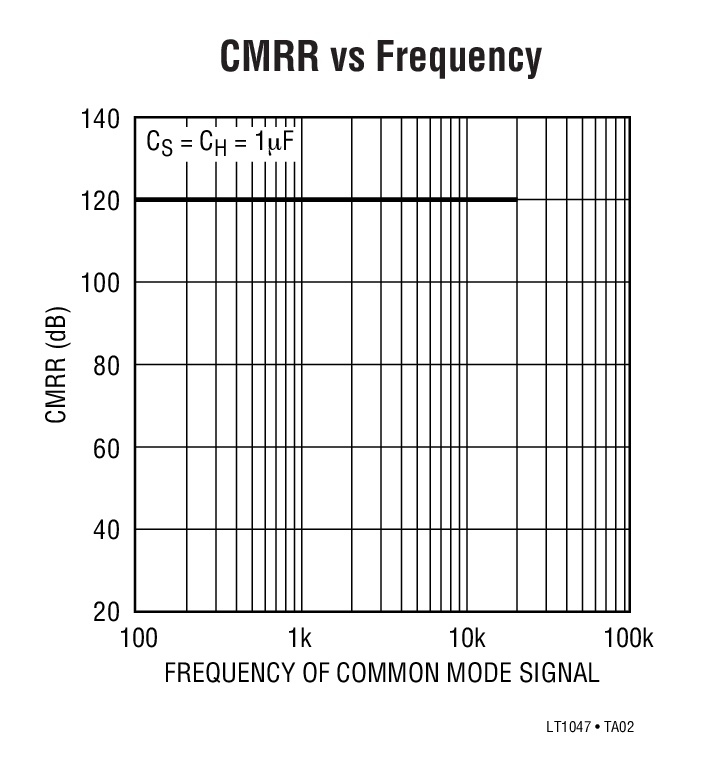

Minimum CMRR: 110dB
Minimum PSRR 110dB
Single Supply Operation 4.75V to 16V
Common Mode Range Includes GND
Output Swings to GND
Typical Overload Recovery Time 70ms
Pin Compatible with Industry Standard Dual Op Amps

The LTC1047 is a micropower, high performance dual zero-drift operational amplifier. The sample-and-hold capacitors usually required by other chopper amplifiers are integrated on-chip, minimizing the need for external components.

The LTC1047 has a typical offset voltage of 3µV, drift of 10nV/°C, input noise voltage typically 3.5µV_P-P, and typical voltage gain of 150dB. The common mode rejection is 110dB minimum, with minimum power supply rejection of 105dB. The LTC1047 also offers a 0.2V/µs slew rate and a gain bandwidth product of 200kHz. Overload recovery time from saturation is 70ms, four times faster than chopper amplifiers with external capacitors.

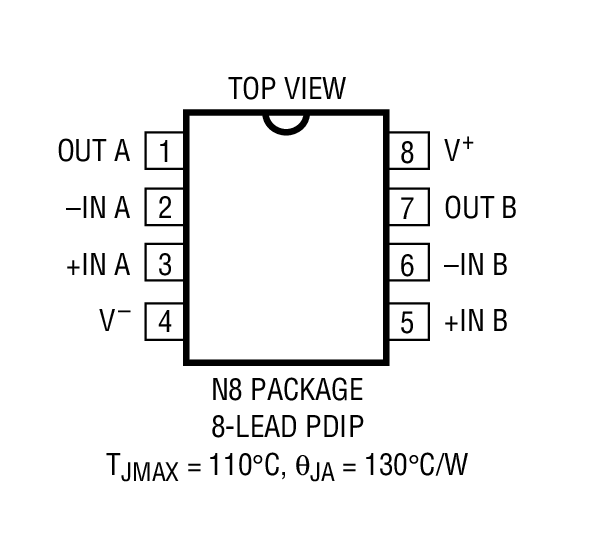

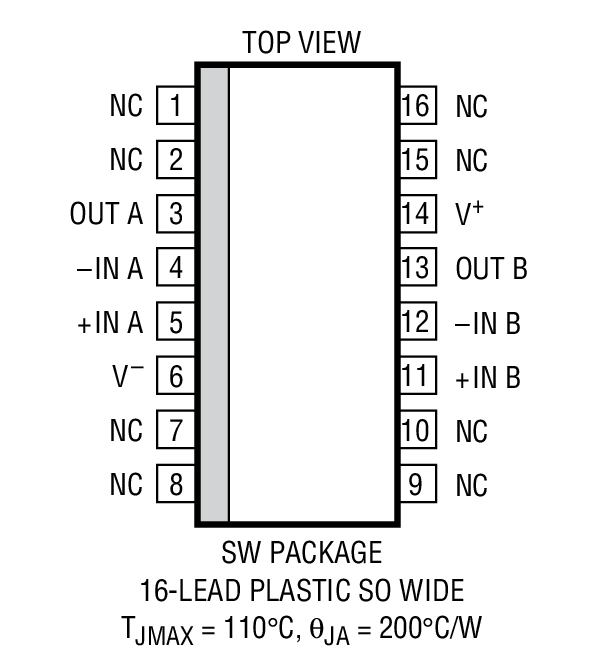

The LTC1047 is available in a standard plastic 8-pin PDIP as well as a 16-pin SW package. The LTC1047 is a plug-in replacement for most dual op amps with improved DC performance and substantial power savings.

Applications

Thermocouple Amplifiers
Electronic Scales

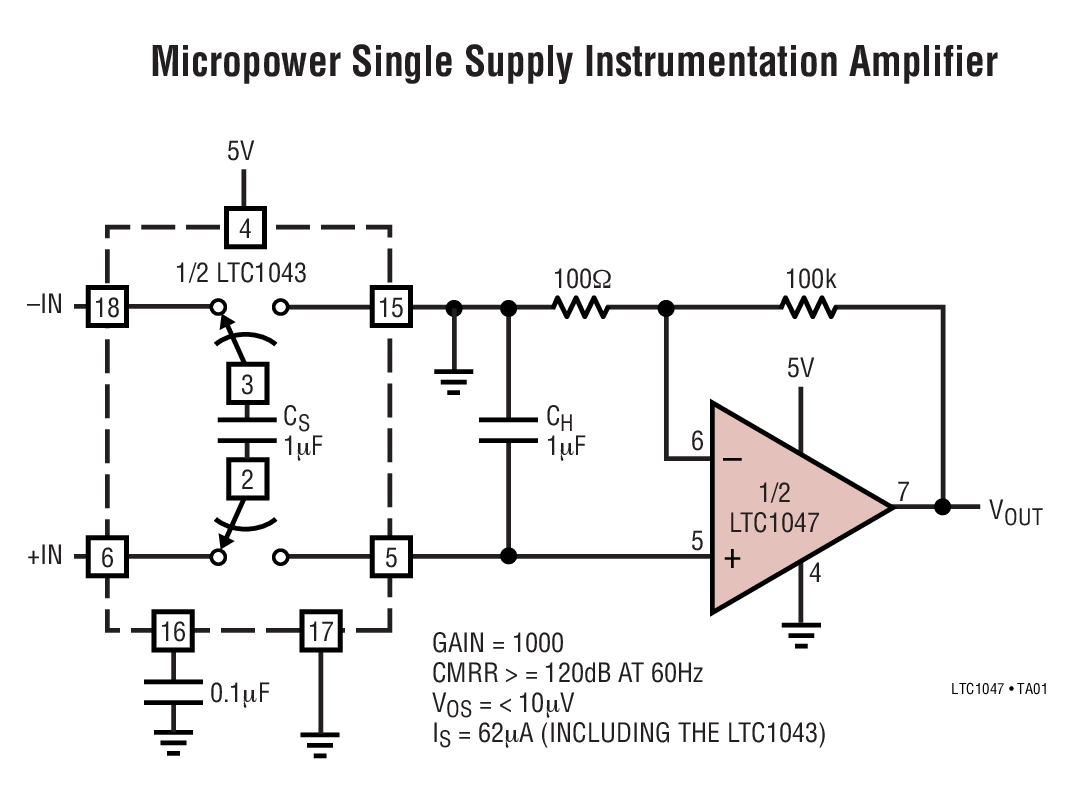

Battery Powered Instrumentation
Strain Gauge Amplifiers
Remote Located Sensors

Part Models: 3
1ku List Price: Starting From $7.16

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC1047CN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1047CSW#PBF	16-Lead SOIC (Wide 0.3 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1047CSW#TRPBF	16-Lead SOIC (Wide 0.3 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 8, 2024 - 24_0234 Migrating Bottom Trace Code Marking to Top Side Laser Marking for PDIP Package
		PCN24_0234_Form Material_Report Marking Comparison
LTC1047CN8#PBF	PRODUCTION	PCN24_0234_Form Material_Report Marking Comparison
Oct 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package
		PCN22_0241_Form Material_Report Qualification Results Summary
LTC1047CN8#PBF	PRODUCTION
Aug 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]
		PCN22_0172_Form Material_Report Delta Qualification Matrix
LTC1047CN8#PBF	PRODUCTION
Aug 10, 2022 - 22_0176 Laser Top Mark Conversion for SOIC_W Packages Assembled in ADPG [PNG] and UTL
		PCN22_0176_Form Material_Report Delta Qualification Matrix
LTC1047CSW#PBF	PRODUCTION
LTC1047CSW#TRPBF	PRODUCTION
