LTC2058

36V, Low Noise Zero-Drift Operational Amplifier

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.0)
Documentation View All Documentation
LTspice LTC2058 Demo Circuit - Carbon Monoxide Sensor Download 3.71 KB LTspice LTC2058 Demo Circuit - Photovoltaic Module Sweep Measurement Download 5.18 KB LTspice LTC2058 - Operational Amplifiers (Op Amps) Download 1.45 KB
Part Models 8
1ku List Price Starting From $1.99
Features
  • Supply Voltage Range: 4.75V to 36V
  • Offset Voltage: 5μV (Maximum)
  • Offset Voltage Drift: 0.025μV/°C
    • Maximum, –40°C to 125°C
  • Input Noise Voltage
    • 200nVP-P, DC to 10Hz (Typ)
    • 9nV/√Hz, 1kHz (Typ)
  • Input Common Mode Range:
    • V– – 0.1V to V+ – 1.5V
  • Rail-to-Rail Output
  • Unity Gain Stable
  • Gain Bandwidth Product: 2.5MHz (Typ)
  • Slew Rate: 1.6V/μs (Typ)
  • AVOL: 150dB (Typ)
  • PSRR: 150dB (Typ)
  • CMRR: 150dB (Typ)
  • Shutdown Mode
Additional Details
show more Icon

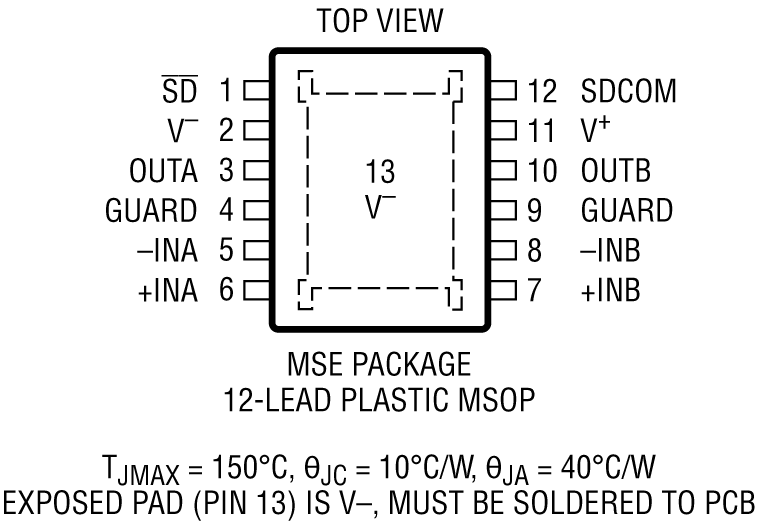

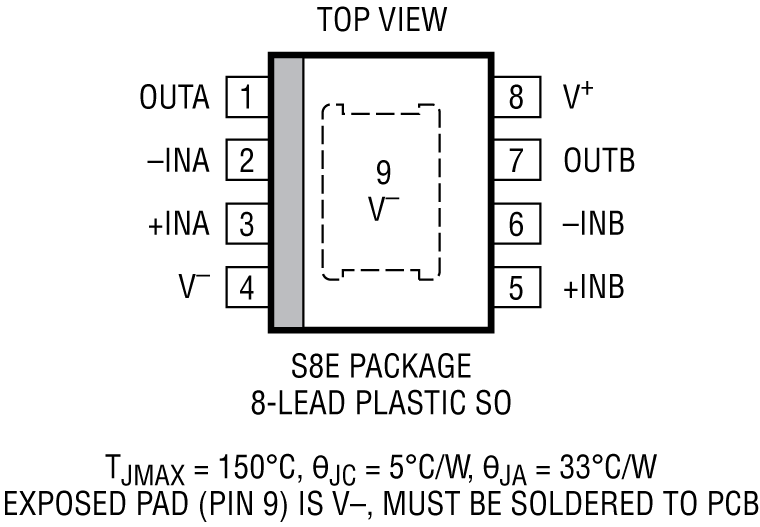

The LTC®2058 is a dual, low noise, zero-drift operational amplifier that offers precision DC performance over a wide supply range of 4.75V to 36V. Offset voltage and 1/f noise are suppressed, allowing this amplifier to achieve a maximum offset voltage of 5μV and a DC to 10Hz input noise voltage of 200nVP-P (Typ). The LTC2058’s selfcalibrating circuitry results in low offset voltage drift with temperature, 0.025μV/°C (Max), and practically zero drift over time. The amplifier also features an excellent power supply rejection ratio (PSRR) of 150dB and a common mode rejection ratio (CMRR) of 150dB (Typ).

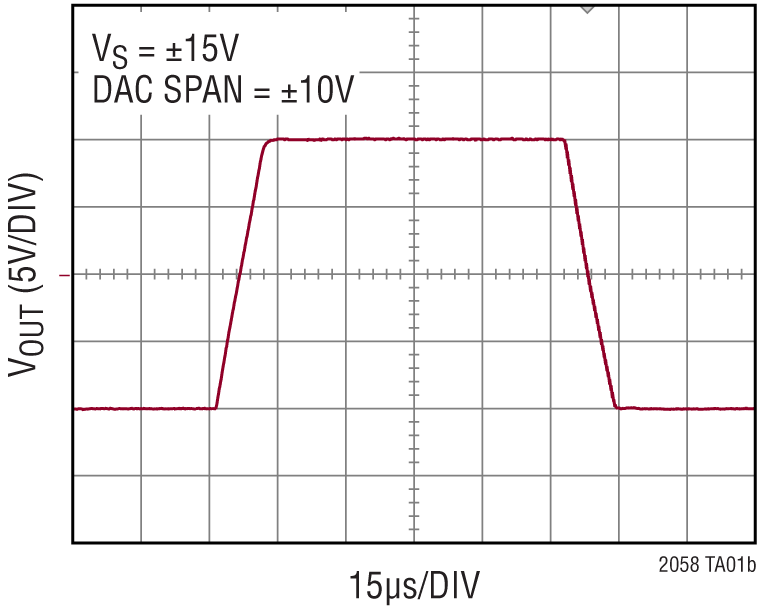

The LTC2058 provides rail-to-rail output swing and an input common mode range that includes the V– rail. In addition to low offset and noise, this amplifier features a 2.5MHz (Typ) gain-bandwidth product and a 1.6V/μs (Typ) slew rate.

Wide supply range, combined with low noise, low offset, and excellent PSRR and CMRR make the LTC2058 well suited for high dynamic-range test, measurement, and instrumentation systems.

Applications

  • High Resolution Data Acquisition
  • Reference Buffering
  • Test and Measurement
  • Electronic Scales
  • Thermocouple Amplifiers
  • Strain Gauges
  • Low Side Current Sense
  • Automotive Monitors and Control
Show More Arrow image
file View Data Sheet (Rev.0)
Documentation View All Documentation
LTspice LTC2058 Demo Circuit - Carbon Monoxide Sensor Download 3.71 KB LTspice LTC2058 Demo Circuit - Photovoltaic Module Sweep Measurement Download 5.18 KB LTspice LTC2058 - Operational Amplifiers (Op Amps) Download 1.45 KB
Part Models 8
1ku List Price Starting From $1.99
