LT8364

RECOMMENDED FOR NEW DESIGNS

LT8364

Low I_Q Boost/SEPIC/Inverting Converter with 4A, 60V Switch

RECOMMENDED FOR NEW DESIGNS

Part Details

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 18

1ku List Price Starting From $2.43

Features

Wide Input Voltage Range: 2.8V to 60V
Ultralow Quiescent Current and Low Ripple Burst Mode^® Operation: I_Q = 9μA
4A, 60V Power Switch
Positive or Negative Output Voltage Programming with a Single Feedback Pin
Programmable Frequency (300kHz to 2MHz)
Synchronizable to an External Clock

Spread Spectrum Frequency Modulation for Low EMI
BIAS Pin for Higher Efficiency
Programmable Undervoltage Lockout (UVLO)

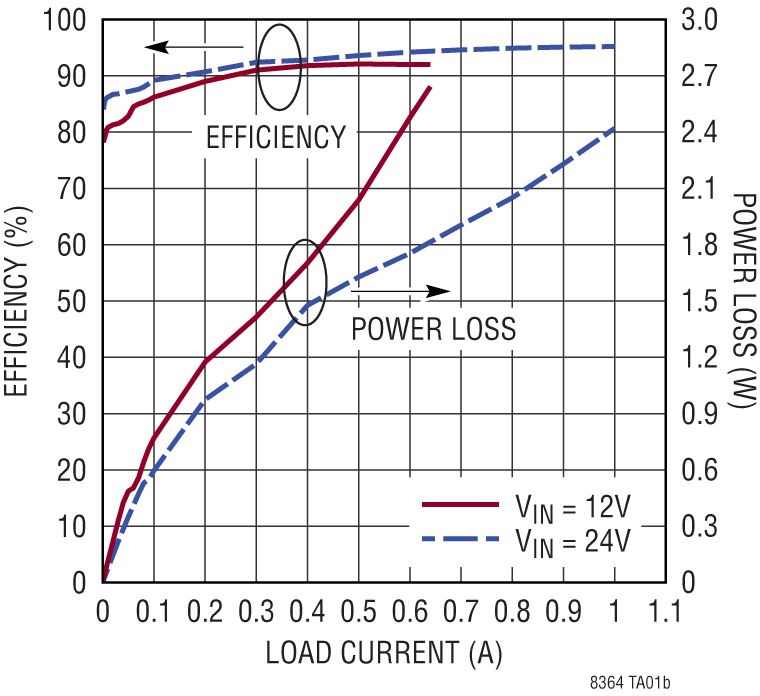

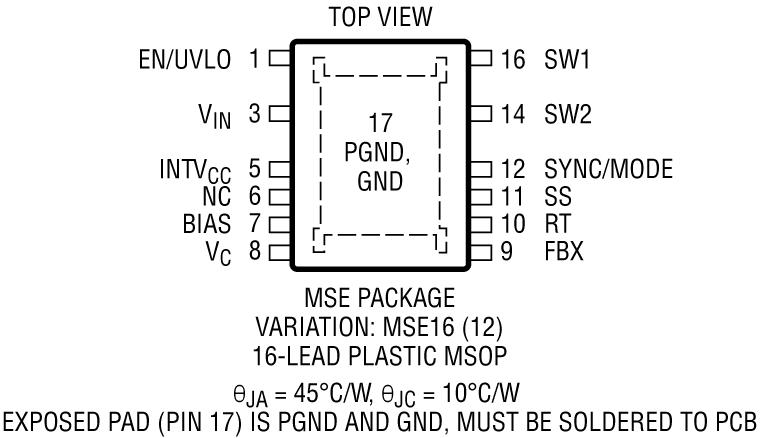

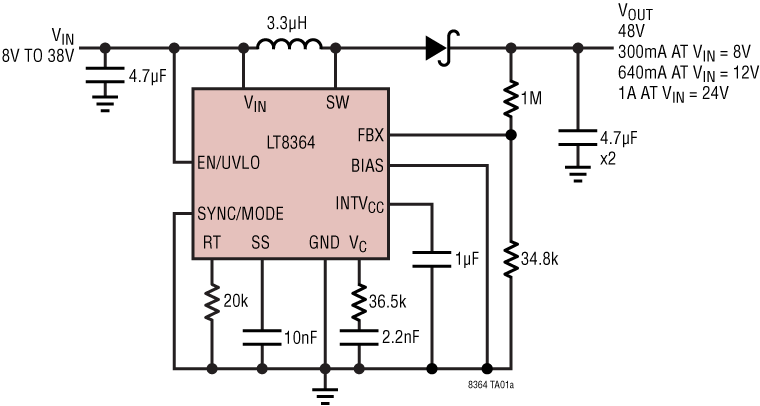

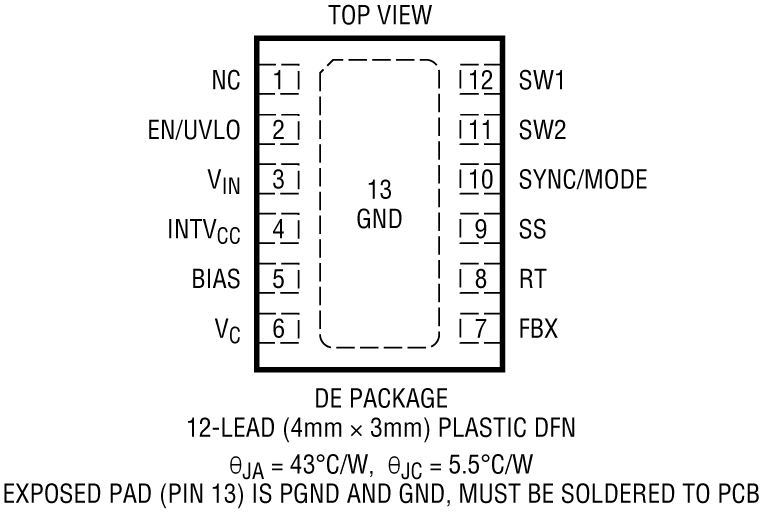

Thermally Enhanced 12-lead 4mm × 3mm DFN and 16-lead MSOP packages
AEC-Q100 Qualified for Automotive Applications

Additional Details

The LT8364 is a current mode DC/DC converter with a 60V, 4A switch operating from a 2.8V to 60V input. With a unique single feedback pin architecture it is capable of boost, SEPIC or inverting configurations. Burst Mode operation consumes as low as 9μA quiescent current to maintain high efficiency at very low output currents, while keeping typical output ripple below 15mV.

An external compensation pin allows optimization of loop bandwidth over a wide range of input and output voltages and programmable switching frequencies between 300kHz and 2MHz. A SYNC/MODE pin allows synchronization to an external clock. It can also be used to select between burst or pulse-skip modes of operation with or without Spread Spectrum Frequency Modulation for low EMI. For increased efficiency, a BIAS pin can accept a second input to supply the INTV_CC regulator. Additional features include frequency foldback and programmable soft-start to control inductor current during startup.

The LT8364 is available in a thermally enhanced 12-lead 4mm × 3mm DFN package or a thermally enhanced 16-lead MSOP package with four pins removed.

Applications

Industrial and Automotive
Telecom
Medical Diagnostic Equipment
Portable Electronics

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 18

1ku List Price Starting From $2.43

Documentation

Technical Documents 3

LT8364: Low I_Q Boost/SEPIC/ Inverting Converter with 4A, 60V Switch Data Sheet (Rev.B) 07/16/2024

R570 Reliability Data 03/23/2018

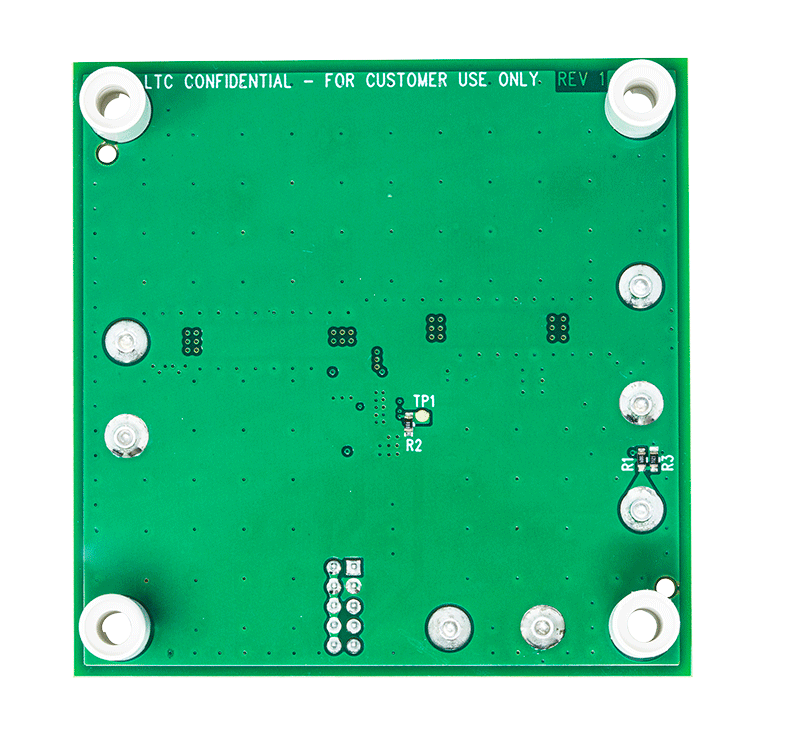

DC2716A - Demo Board Manual 11/30/2017

Reference Materials 2

60 V and 100 V, Low IQ Boost/SEPIC/Inverting Converters for Compact, Efficient, Low EMI Power Supplies 08/03/2018

How to Measure and Determine Soft Start Timing When There Is No Soft Start Equation? 05/15/2024

Design Resources 18

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
