LT8300

100VIN Micropower Isolated Flyback Converter with 150V/260mA Switch

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.A)
Documentation View All Documentation
LTspice LT8300 Demo Circuit - 100V µPower Isolated Flyback Converter (22-75V to 5V @ 0.25A) Download 2.00KB LTspice LT8300 - Switching Regulators Download 1.81 KB
Part Models 14
1ku List Price Starting From $3.61
Features
  • 6V to 100V Input Voltage Range
  • 260mA, 150V Internal DMOS Power Switch
  • Low Quiescent Current
    • 70µA in Sleep Mode
    • 330µA in Active Mode
  • Boundary Mode Operation at Heavy Load
  • Low-Ripple Burst Mode® Operation at Light Load
  • Minimum Load <0.5% (Typ) of Full Output
  • VOUT Set with a Single External Resistor
  • No Transformer Third Winding or Opto-Isolator Required for Regulation
  • Accurate EN/UVLO Threshold and Hysteresis
  • Internal Compensation and Soft-Start
  • 5-Lead TSOT-23 Package
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

The LT8300 is a micropower high voltage isolated flyback converter. By sampling the isolated output voltage directly from the primary-side flyback waveform, the part requires no third winding or opto-isolator for regulation. The output voltage is programmed with a single external resistor. Internal compensation and soft-start further reduce external component count. Boundary mode operation provides a small magnetic solution with excellent load regulation. Low ripple Burst Mode operation maintains high efficiency at light load while minimizing the output voltage ripple. A 260mA, 150V DMOS power switch is integrated along with all high voltage circuitry and control logic into a 5-lead ThinSOT™ package.

The LT8300 operates from an input voltages range of 6V to 100V and can deliver up to 2W of isolated output power. The high level of integration and the use of boundary and low ripple burst modes result in a simple to use, low component count, and high efficiency application solution for isolated power delivery.

Applications

  • Isolated Telecom, Automotive, Industrial, Medical Power Supplies
  • Isolated Auxiliary/Housekeeping Power Supplies
Show More Arrow image
file View Data Sheet (Rev.A)
Documentation View All Documentation
LTspice LT8300 Demo Circuit - 100V µPower Isolated Flyback Converter (22-75V to 5V @ 0.25A) Download 2.00KB LTspice LT8300 - Switching Regulators Download 1.81 KB
Part Models 14
1ku List Price Starting From $3.61
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT8300

Documentation

12
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Design Note
  • Data Sheet
  • User Guide
  • Reliability Data
  • Application Note
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 08/14/2012
English

LT8300: 100VIN Micropower Isolated Flyback Converter with 150V/260mA Switch Data Sheet (Rev.A)

Open PDF File

redirect
307.00K
download

Download PDF

PDF Vector

PDF

UPDATED 09/26/2012
Japanese

LT8300: 150V/260mAスイッチを備えた100V入力のマイクロパワー絶縁型フライバック・コンバータ データシート

Open PDF File

redirect
678.00K
download

Download PDF

Design Note

6

PDF Vector

PDF

UPDATED 02/25/2014
English
DN525 - Monolithic No-Opto Isolated Flyback Converter Provides Versatile Solution redirect icon

252.00K

download

Download PDF

PDF Vector

PDF

UPDATED 02/24/2014
Chinese
DN525 - 无需使用光耦合器的单片隔离型反激式转换器可提供通用型解决方案 redirect icon

380.00K

download

Download PDF

PDF Vector

PDF

UPDATED 03/13/2014
Japanese
DN525 - 幅広いソリューションを提供するオプトカプラ不要のモノリシック 絶縁型フライバック・コンバータ redirect icon

144.00K

download

Download PDF

PDF Vector

PDF

UPDATED 10/24/2012
English
DN509 - Micropower Isolated Flyback Converter with Input Voltage Range from 6V to 100V redirect icon

706.00K

download

Download PDF

PDF Vector

PDF

UPDATED 11/19/2012
Chinese
DN509 - 具 6V 至 100V 输入电压范围的微功率隔离反激式转换器 redirect icon

652.00K

download

Download PDF

PDF Vector

PDF

UPDATED 01/07/2013
Japanese
DN509 - 入力電圧範囲6V ～ 100V のマイクロパワー絶縁型フライバック・ コンバータ redirect icon

297.00K

download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/26/2012
English
DC1825A - Demo Manual redirect icon

181.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/23/2018
English
R570 Reliability Data redirect icon

415.69 K

download

Download PDF

Application Note

2

PDF Vector

PDF

UPDATED 03/11/2019
English
AN-1599: IEC 61000-4-x and CISPR 11 Tested Analog Output Design with the AD5758 for Industrial Process Control Applications (Rev.B) redirect icon

3.08 M

download

Download PDF

PDF Vector

PDF

UPDATED 03/11/2019
Chinese
AN-1599：按照IEC 61000-4-x和CISPR 11标准测试、采用AD5758、适合工业过程控制应用的模拟输出设计 (Rev.0) redirect icon

3.08 M

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

Technical Documents 6
show more Icon

Data Sheet 1

LT8300: 100VIN Micropower Isolated Flyback Converter with 150V/260mA Switch Data Sheet (Rev.A)

Reliability Data 1

R570 Reliability Data

User Guide 1

DC1825A - Demo Manual

Application Note 1

AN-1599: IEC 61000-4-x and CISPR 11 Tested Analog Output Design with the AD5758 for Industrial Process Control Applications (Rev.B)

Design Note 2

DN525 - Monolithic No-Opto Isolated Flyback Converter Provides Versatile Solution
DN509 - Micropower Isolated Flyback Converter with Input Voltage Range from 6V to 100V

Solutions Bulletin & Brochure 2

Isolated Power Your Way
Simple Isolated Power Excellent Regulation Over Line, Load & Temp

Product Selector Card 1

No-Opto Isolated Flyback Converters

Video

1

Thumbnail Image

Video

2017-09-18

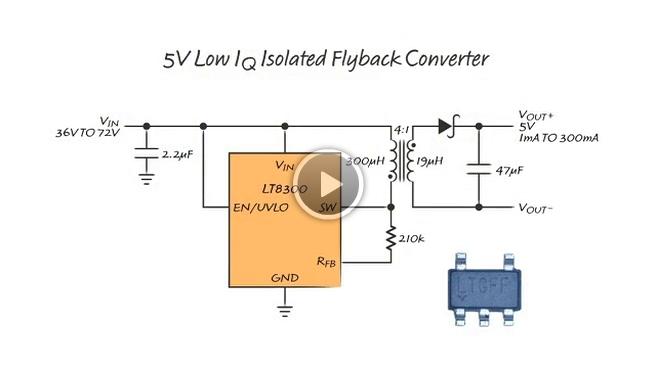

Simple and Efficient Sub-2W Isolated Power Supply

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT8300ES5#TRMPBF 5-Lead TSOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8300ES5#TRPBF 5-Lead TSOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8300ES5#WTRMPBF 5-Lead TSOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8300ES5#WTRPBF 5-Lead TSOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8300HS5#TRMPBF 5-Lead TSOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8300HS5#TRPBF 5-Lead TSOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8300HS5#WTRMPBF 5-Lead TSOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8300HS5#WTRPBF 5-Lead TSOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8300IS5#TRMPBF 5-Lead TSOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8300IS5#TRPBF 5-Lead TSOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8300IS5#WTRMPBF 5-Lead TSOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8300IS5#WTRPBF 5-Lead TSOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8300MPS5#TRMPBF 5-Lead TSOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8300MPS5#TRPBF 5-Lead TSOT-23 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 11, 2019

- 19_0067

Notification of Wafer Fab Location Change for 0.35 BCD Process

LT8300ES5#TRMPBF

PRODUCTION

LT8300ES5#TRPBF

PRODUCTION

LT8300HS5#TRMPBF

PRODUCTION

LT8300HS5#TRPBF

PRODUCTION

LT8300IS5#TRMPBF

PRODUCTION

LT8300IS5#TRPBF

PRODUCTION

LT8300MPS5#TRMPBF

PRODUCTION

LT8300MPS5#TRPBF

PRODUCTION

pdf

PCN19_0067_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

pdf

Qualification Results Summary

external-icon

Detailed Parts List

pdf

Other

external-icon

Sep 14, 2021

- 20_0231

Test Site Transfer from Analog Devices Singapore to Analog Devices General Trias Philippines

LT8300HS5#TRMPBF

PRODUCTION

LT8300HS5#TRPBF

PRODUCTION

pdf

PCN20_0231_Form

external-icon

Test Correlation Report

Other

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Other

Qualification Results Summary

Test Correlation Report

Qualification Results Summary

Test Correlation Report

Qualification Results Summary

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 11, 2019

- 19_0067

arrow down

Notification of Wafer Fab Location Change for 0.35 BCD Process

LT8300ES5#TRMPBF

PRODUCTION

LT8300ES5#TRPBF

PRODUCTION

LT8300HS5#TRMPBF

PRODUCTION

LT8300HS5#TRPBF

PRODUCTION

LT8300IS5#TRMPBF

PRODUCTION

LT8300IS5#TRPBF

PRODUCTION

LT8300MPS5#TRMPBF

PRODUCTION

LT8300MPS5#TRPBF

PRODUCTION

pdf

PCN19_0067_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

pdf

Qualification Results Summary

external-icon
Detailed Parts List

pdf

Other

external-icon
Sep 14, 2021

- 20_0231

arrow down

Test Site Transfer from Analog Devices Singapore to Analog Devices General Trias Philippines

LT8300HS5#TRMPBF

PRODUCTION

LT8300HS5#TRPBF

PRODUCTION

pdf

PCN20_0231_Form

external-icon
Test Correlation Report
Other

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
Other
Qualification Results Summary
Test Correlation Report
Qualification Results Summary
Test Correlation Report
Qualification Results Summary
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

Isolated RS-4851
LTM2881
popup image
Cart

PRODUCTION

Complete Isolated RS485/RS422 μModule Transceiver + Power

PowerPath, Ideal Diodes, and Load Switches1
LTC4359
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Ideal Diode Controller with Reverse Input Protection

Surge Stopper, Overvoltage, and Overcurrent Protection1
LT4363
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

High Voltage Surge Stopper with Current Limit

Parts Product Life Cycle Description
LT8301
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

42VIN Micropower No-Opto Isolated Flyback Converter with 65V/1.2A Switch

Evaluation Kit

Evaluation Kits 1

reference details image

DC1825A

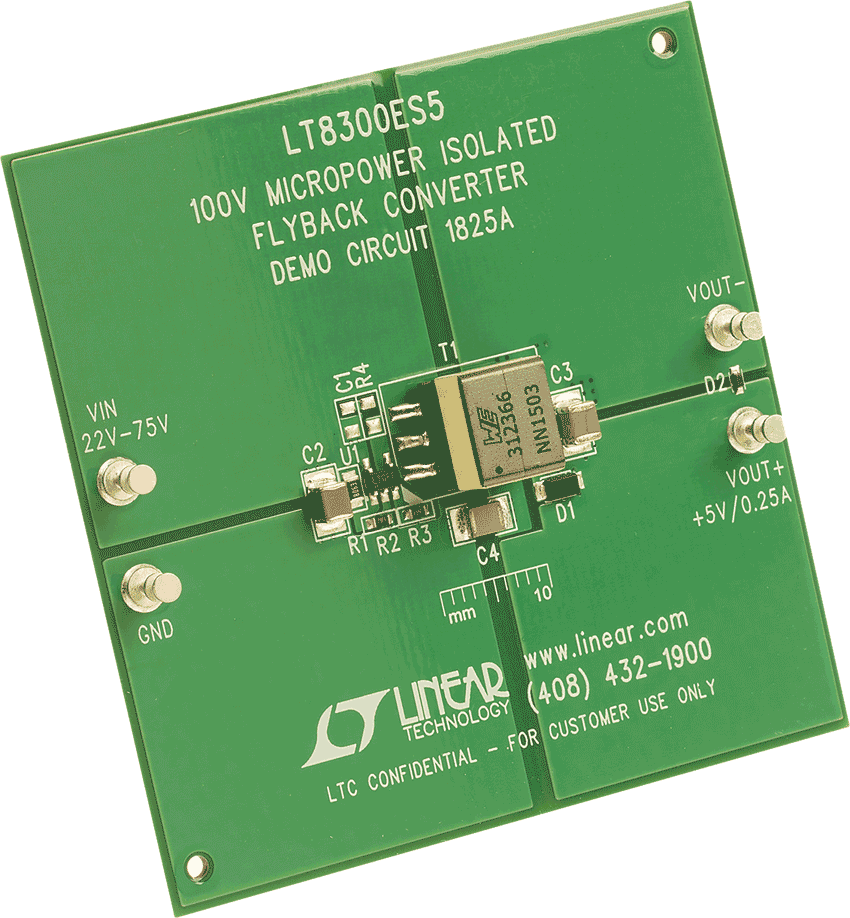

LT8300ES5 Demo Board | Isolated Flyback, 22V ≤ VIN ≤ 75V, VOUT = 5V @ 250mA

zoom

DC1825A

LT8300ES5 Demo Board | Isolated Flyback, 22V ≤ VIN ≤ 75V, VOUT = 5V @ 250mA

download icon

Download

 print icon

Print
DC1825A
LT8300ES5 Demo Board | Isolated Flyback, 22V ≤ VIN ≤ 75V, VOUT = 5V @ 250mA
Buy Now View Details

Product Detail

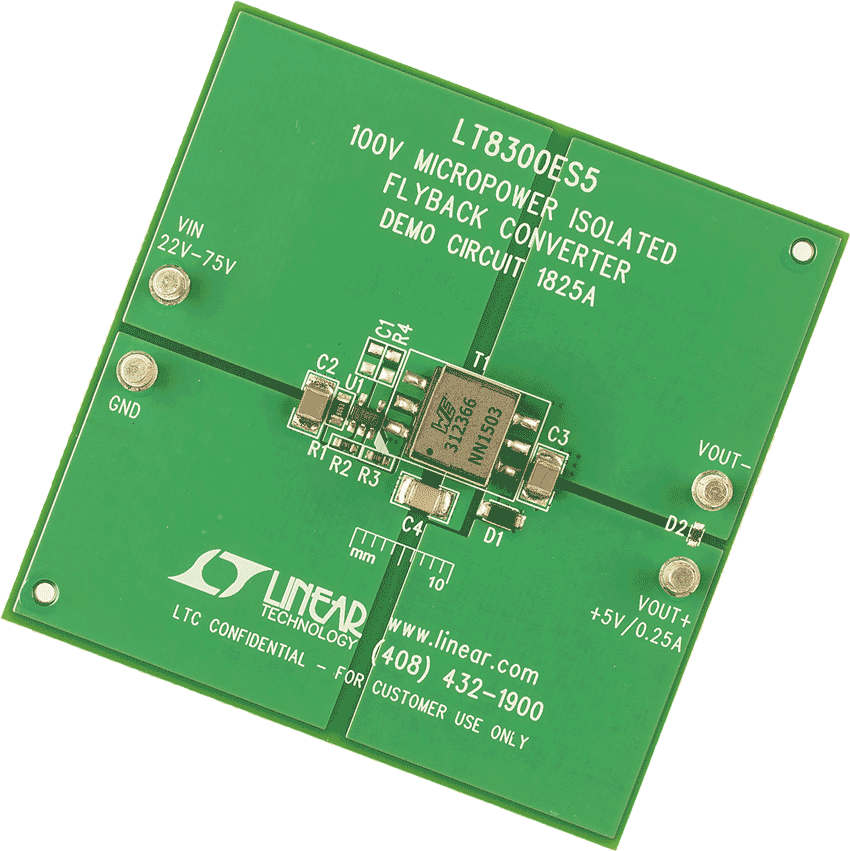

Demonstration circuit 1825A is an isolated flyback converter featuring the LT8300. This demo circuit outputs 5.0V, and maintains tight regulation with a load current from ~1mA to 250mA and over an input from 22V to 75V, with a nominal 48V. The output current capability increases with the input voltage. The DC1825A needs a very small minimum load (~1mA) to regulate the output voltage, thanks to the accurate current limit capability and ultra low switching frequency of the LT8300 at very light load. The standby input current of the demo circuit is less than 400μA (typical) because of the low quiescent current design of the IC and very small minimum load requirement.





Resources

pdf icon

ZIP

DC1825A - Design Files Download

566.00K

pdf icon

PDF

DC1825A - Demo Manual Download

181.00K

pdf icon

PDF

DC1825A - Schematic Download

34.00K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

DC1825A

LT8300ES5 Demo Board | Isolated Flyback, 22V ≤ VIN ≤ 75V, VOUT = 5V @ 250mA
Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LT8300 Demo Circuit - 100V µPower Isolated Flyback Converter (22-75V to 5V @ 0.25A) Download

2.00K

spice tool Lt Spice

LT8300 - Switching Regulators Download

1.81 K

Recently Viewed

Part Details
Documentation
Software & Part Ecosystem
Evaluation Kit
Tools & Simulations
Latest Discussions
