LT3494

Micropower Low Noise Boost Converters with Output Disconnect

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LT3494 - Step-Up (Boost) Regulators Download 1.25 KB LTspice LT3494A Demo Circuit - µPower Low Noise Boost Converter (3.6V to 15V @ 27mA) Download 2.00KB LTspice LT3494 Demo Circuit - µPower Low Noise Boost Converter (3.6V to 15V @ 17mA) Download 1.00KB
Part Models 4
1ku List Price Starting From $1.77
Features
  • Low Quiescent Current
    • 65µA in Active Mode
    • 1µA in Shutdown Mode
  • Switching Frequency is Non-Audible Over Entire Load Range
  • Integrated Power NPN:
    • 350mA Current Limit (LT3494A)
    • 180mA Current Limit (LT3494)
  • Integrated Schottky Diode
  • Integrated Output Disconnect
  • Integrated Output Dimming
  • Wide Input Range: 2.3V to 16V
  • Wide Output Range: Up to 40V
  • Tiny 8-Lead 3mm × 2mm DFN Package
Additional Details
show more Icon

The LT3494/LT3494A are low noise boost converters with integrated power switch, Schottky diode and output disconnect circuitry. The parts use a novel* control technique resulting in low output voltage ripple as well as high efficiency over a wide load current range. This technique guarantees that the switching frequency stays above the audio band for the entire load range. The parts feature a high performance NPN power switch with a 350mA and 180mA current limit for the LT3494A and LT3494 respectively. The quiescent current is a low 65µA, which is further reduced to less than 1µA in shutdown. The internal disconnect circuitry allows the output voltage to be isolated from the input during shutdown. An auxiliary reference input (CTRL pin) overrides the internal 1.225V feedback reference with any lower value allowing full control of the output voltage during operation. The LT3494/LT3494A are available in a tiny 8-lead 3mm × 2mm DFN package.

Applications

  • OLED Power
  • Low Noise Power
  • MP3 Players
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LT3494 - Step-Up (Boost) Regulators Download 1.25 KB LTspice LT3494A Demo Circuit - µPower Low Noise Boost Converter (3.6V to 15V @ 27mA) Download 2.00KB LTspice LT3494 Demo Circuit - µPower Low Noise Boost Converter (3.6V to 15V @ 17mA) Download 1.00KB
Part Models 4
1ku List Price Starting From $1.77
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT3494

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • Technical Articles
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 11/21/2007
English

LT3494: Micropower Low Noise Boost Converters with Output Disconnect Data Sheet

Open PDF File

redirect
266.00K
download

Download PDF

PDF Vector

PDF

UPDATED 04/22/2010
Japanese

LT3494: 出力切断付きマイクロパワー低ノイズ昇圧コンバータ データシート

Open PDF File

redirect
1.00M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English
DC1024A - Demo Manual redirect icon

577.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R530 Reliability Data redirect icon

20.92 K

download

Download PDF

Technical Articles

1

PDF Vector

HTML

UPDATED 06/01/2009
English
Space-Saving, Dual Output DC/DC Converter Yields Plus/Minus Voltage Outputs with (Optional) I2C Programming redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3494AEDDB#TRMPBF 8-Lead DFN (3mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3494AEDDB#TRPBF 8-Lead DFN (3mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3494EDDB#TRMPBF 8-Lead DFN (3mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3494EDDB#TRPBF 8-Lead DFN (3mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Software & Part Ecosystem

Parts Product Life Cycle Description

Surge Stopper, Overvoltage, and Overcurrent Protection1
LTC4365
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Overvoltage, Undervoltage and Reverse Supply Protection Controller

Evaluation Kits 2

reference details image

DC1024A-A

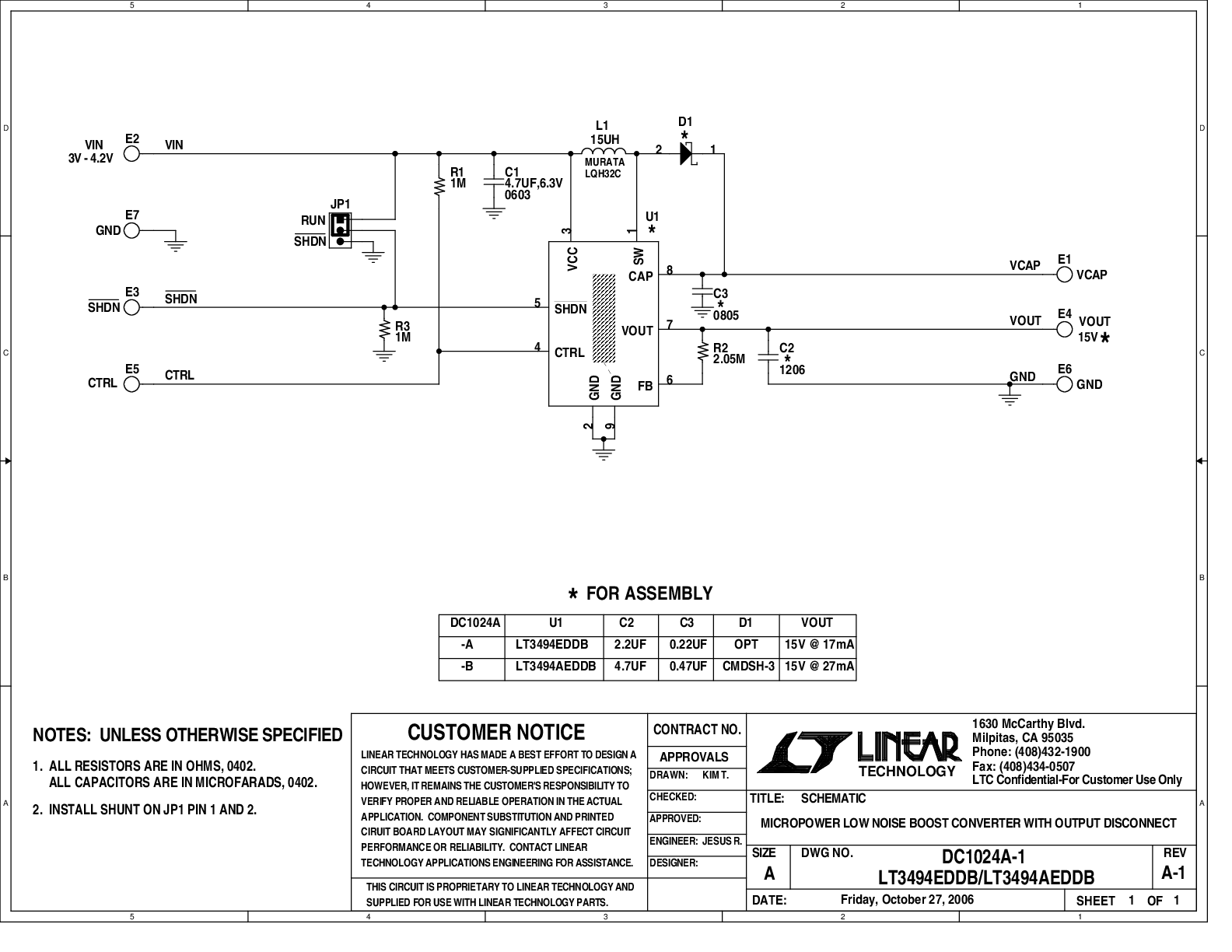

LT3494EDDB Demo Board | 3V-4.2VIN, 15VOUT @ 32mA

zoom

DC1024A-A

LT3494EDDB Demo Board | 3V-4.2VIN, 15VOUT @ 32mA

download icon

Download

 print icon

Print
DC1024A-A
LT3494EDDB Demo Board | 3V-4.2VIN, 15VOUT @ 32mA
Buy Now View Details

Product Detail

Demonstration circuits 1024A-A and 1024A-B are Micropower Low Noise Boost Converters With Output Disconnect featuring the LT3494 and LT3494A respectively. The demo circuits demonstrate small size and low component count in Boost configuration. Both demo versions are designed to convert a 3V-4.2V source to 15V. The only difference is in the load capability. The 1024A–A supplies 17mA at 3VIN while the 1024A–B supplies 27mA, also at 3VIN. The LT3494 features integrated Schottky diode, output disconnect function, dimming control, output sense resistor and non-audible switching frequency over the entire load range.

Resources

pdf icon

PDF

DC1024A - Demo Manual Download

577.00K

pdf icon

ZIP

DC1024A - Design File Download

665.00K

pdf icon

PDF

DC1024A - Schematic Download

25.00K

Show More Arrow image
reference details image

DC1024A-B

LT3494AEDDB Demo Board | 3V-4.2VIN, 15VOUT @ 44mA

zoom

DC1024A-B

LT3494AEDDB Demo Board | 3V-4.2VIN, 15VOUT @ 44mA

download icon

Download

 print icon

Print
DC1024A-B
LT3494AEDDB Demo Board | 3V-4.2VIN, 15VOUT @ 44mA
Buy Now View Details

Product Detail

Demonstration circuits 1024A-A and 1024A-B are Micropower Low Noise Boost Converters With Output Disconnect featuring the LT3494 and LT3494A respectively. The demo circuits demonstrate small size and low component count in Boost configuration. Both demo versions are designed to convert a 3V-4.2V source to 15V. The only difference is in the load capability. The 1024A–A supplies 17mA at 3VIN while the 1024A–B supplies 27mA, also at 3VIN. The LT3494 features integrated Schottky diode, output disconnect function, dimming control, output sense resistor and non-audible switching frequency over the entire load range.

Resources

pdf icon

PDF

DC1024A - Demo Manual Download

577.00K

pdf icon

ZIP

DC1024A - Design File Download

665.00K

pdf icon

PDF

DC1024A - Schematic Download

25.00K

Show More Arrow image

Evaluation Kits2

evaluation kit item images

DC1024A-A

LT3494EDDB Demo Board | 3V-4.2VIN, 15VOUT @ 32mA
evaluation kit item images

DC1024A-B

LT3494AEDDB Demo Board | 3V-4.2VIN, 15VOUT @ 44mA
