ADXL346
3-Axis, ±2 g/±4 g/±8 g/±16 g Ultralow Power Digital Accelerometer
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Ultralow power: as low as 23 μA in measurement mode and 0.2 μA in standby mode at VS = 2.6 V (typical)
- Power consumption scales automatically with bandwidth
- User-selectable resolution
Fixed 10-bit resolution
Full resolution, where resolution increases with g range, up to 13-bit resolution at ±16 g (maintaining 4 mg/LSB scale factor in all g ranges) - Single tap/double tap detection
- Activity/inactivity monitoring
- Freefall detection
- Concurrent four- and six-position orientation detection
- Supply and I/O voltage range:
- 1.7 V to 2.75 V
- SPI (3- and 4-wire) and I2C digital interfaces
- Flexible interrupt modes mappable to either interrupt pin
- See data sheet for additional features
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The ADXL346 is a small, thin, ultralow power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16g. Digital output data is formatted as 16-bit twos complement and is accessible through either an SPI (3- or 4-wire) or I2C® digital interface.
The ADXL346 is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes of less than 1.0°.
Several special sensing functions are provided. Activity and inactivity sensing detect the presence or lack of motion by comparing the acceleration on any axis with user-set thresholds. Tap sensing detects single and double taps in any direction. Free-fall sensing detects if the device is falling. Orientation detection is capable of concurrent four- and six-position sensing and a user-selectable interrupt on orientation change for 2D or 3D applications. These functions can be mapped individually to either of two interrupt output pins. An integrated, patent pending memory management system with 32-level first in, first out (FIFO) buffer can be used to store data to minimize host processor activity and lower overall system power consumption.
Low power modes enable intelligent motion-based power management with threshold sensing and active acceleration measurement at extremely low power dissipation.

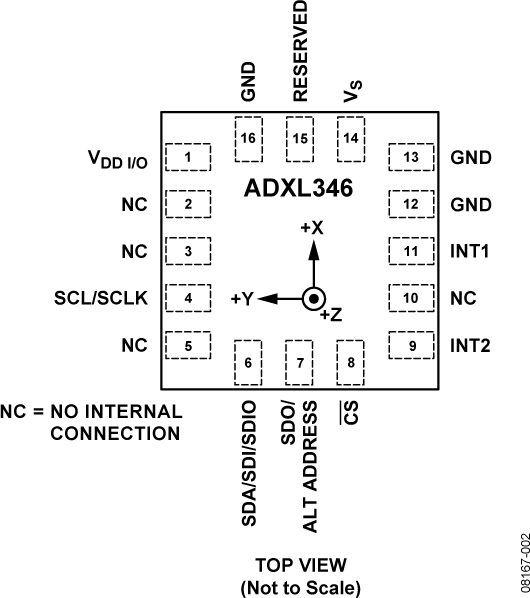

The ADXL346 is supplied in a small, thin, 3 mm × 3 mm × 0.95 mm, 16-lead, plastic package.
APPLICATIONS
- Handsets
- Medical instrumentation
- Gaming and pointing devices
- Industrial instrumentation
- Personal navigation devices
- Hard disk drive (HDD) protection
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADXL346
Documentation
Filters
1 Applied
-
All
-
Evaluation Design File
-
User Guide
-
Product Information
-
Data Sheet
-
Application Note
-
Frequently Asked Question
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
2
Evaluation Design File
4
User Guide
1
WIKI
Product Information
1
WIKI
Application Note
9
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
Frequently Asked Question
1
HTML
Documentation
Data Sheet 1
User Guide 1
Application Note 4
Evaluation Design File 2
Product Information 1
Frequently Asked Question 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADXL346ACCZ-RL |
16-Lead LGA (3mm x 3mm)
|
|
|
| ADXL346ACCZ-RL7 |
16-Lead LGA (3mm x 3mm)
|
|
- ADXL346ACCZ-RL
- Pin/Package Drawing
-
16-Lead LGA (3mm x 3mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADXL346ACCZ-RL7
- Pin/Package Drawing
-
16-Lead LGA (3mm x 3mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Dec 6, 2013
- 13_0321
ADXL345, ADXL346, ADXL337 Die Revision
ADXL346ACCZ-RL
ADXL346ACCZ-RL7
PRODUCTION
Oct 17, 2013
- 13_0021
Qualification of Second Source Supplier for Seal Glass on Capped iMEMS Devices
ADXL346ACCZ-RL
ADXL346ACCZ-RL7
PRODUCTION
Aug 28, 2012
- 12_0203
Transfer ADXL346 Sensor Wafer Fabrication to the TSMC 8" MEMS Only Process
ADXL346ACCZ-RL
ADXL346ACCZ-RL7
PRODUCTION
Oct 31, 2011
- 11_0054
Addition of Advanced Semiconductor Engineering (ASE) Korea as an alternate source and transfer of ADXL346 LGA package
ADXL346ACCZ-RL
ADXL346ACCZ-RL7
PRODUCTION
May 27, 2011
- 11_0091
ADXL346 Die Revision
ADXL346ACCZ-RL
ADXL346ACCZ-RL7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Dec 6, 2013
- 13_0321
ADXL345, ADXL346, ADXL337 Die Revision
ADXL346ACCZ-RL
ADXL346ACCZ-RL7
PRODUCTION
Oct 17, 2013
- 13_0021
Qualification of Second Source Supplier for Seal Glass on Capped iMEMS Devices
ADXL346ACCZ-RL
ADXL346ACCZ-RL7
PRODUCTION
Aug 28, 2012
- 12_0203
Transfer ADXL346 Sensor Wafer Fabrication to the TSMC 8" MEMS Only Process
ADXL346ACCZ-RL
ADXL346ACCZ-RL7
PRODUCTION
Oct 31, 2011
- 11_0054
Addition of Advanced Semiconductor Engineering (ASE) Korea as an alternate source and transfer of ADXL346 LGA package
ADXL346ACCZ-RL
ADXL346ACCZ-RL7
PRODUCTION
May 27, 2011
- 11_0091
ADXL346 Die Revision
ADXL346ACCZ-RL
ADXL346ACCZ-RL7
PRODUCTION
Software & Part Ecosystem
Device Drivers
Looking for Evaluation Software? You can find it here
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 4

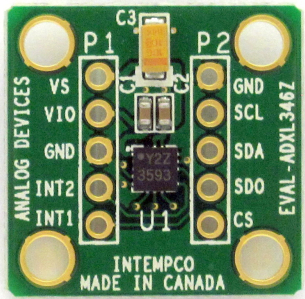

EVAL-ADXL346Z
ADXL346 Breakout Board
Product Detail
The EVAL-ADXL346Z is a simple breakout board that enables easy connection of an ADXL346 into an existing system. The ADXL346 is a digital-output, 3-axis accelerometer whose low power consumption and built-in features make it ideal for use in a wide variety of applications. Due to its small size, the EVAL-ADXL346Z has minimal effect on performance of the system and of the accelerometer, and thus it is ideal for evaluation of the ADXL346 in an existing system. Note that the ADXL346 must be communicated with digitally via SPI or I2C. No processor is included with the EVAL-ADXL346Z; firmware must be supplied externally by the user. For evaluation boards that include a processor, please see the EVAL-ADXL346Z-M and the ADXL346Z-DB.
Resources
131 kB
EVAL-MST-ISEB
Real Time Eval System for Digital Output Sensor
Product Detail
The ISEB is an universal main board and is intended to be used with various satellites of Analog Devices inertial sensors, including analog and digital accelerometers, as well as gyroscopes. The different products are evaluated by means of separate GUIs that are customized for performance and characterization measurements relevant to the inertial sensor being evaluated.
The EVAL-ADxZ-M system contains the ISEB and the EVAL-ADxZ-S satellite. Also included is an USB A to Mini-B cable to connect the ISEB to a PC and an 18-inch, 20-pin ribbon cable to connect the ISEB to the satellite.
Resources
Software
ZIP
7.87 M
ZIP
7.92 M
ZIP
7.84 M
ZIP
6.71 M
ZIP
7.8 M
ZIP
7.88 M
ZIP
7.82 M
ZIP
140.99 M
ZIP
3.33 M
ZIP
12.78 M
EVAL-ADXL346-ISEB
ADXL346-ISEB Evaluation Board
Features and Benefits
- Flexible inertial sensor evaluation platform
- Single main board operates with interchangeable satellite boards
- Separates DUT from controller for accurate environmental testing
- Continuous stream to file data recording
- Standard USB cable for power and communications
- PC-based graphical user interface (GUI)
- Fast, easy installation
Product Detail
The iMEMS® ADXL346 inertial sensor evaluation system is an easy-to-use evaluation tool targeting bench or desktop characterization of Analog Devices, Inc., inertial sensor products. The system consists of the inertial sensor evaluation board (ISEB), or main board, and a satellite board for any Analog Devices inertial sensor product. The ISEB connects directly to a PC via an USB cable, with the USB connection providing both communications and power to the board. The ISEB is connected to the satellite board through a ribbon cable. This cable allows the satellite to be easily manipulated for testing or separately placed into an environmental chamber for temperature or humidity testing. Separating the boards mitigates corruption of data due to the temperature and humidity effects of other components.
The ISEB is an universal main board and is intended to be used with various satellites of Analog Devices inertial sensors, including analog and digital accelerometers, as well as gyroscopes. The different products are evaluated by means of separate GUIs that are customized for performance and characterization measurements relevant to the inertial sensor being evaluated.
The EVAL-ADXL346Z-M system contains the ISEB and the EVAL-ADXL346Z-S satellite. Also included is an USB A to Mini-B cable to connect the ISEB to a PC and an 18-inch, 20-pin ribbon cable to connect the ISEB to the satellite.

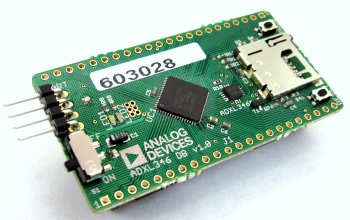

EVAL-ADXL346Z-DB
ADXL346 Datalogger / Development Board
Product Detail
The ADXL346 Development Board is an easy-to-use tool designed to shorten application development time by providing a ready-to-use platform for data collection and firmware development.
The board is pre-configured as a datalogger that can be used to gather data for refining algorithms, tuning thresholds, and generally familiarizing oneself with accelerometer data. Powered by two AAA batteries, the board is completely untethered and integrates seamlessly into portable applications. Logged data is stored on a MicroSD memory card, providing essentially unlimited memory capacity and operating system versatility. Data is stored in a text (.txt) file, so no software installation is required to operate the board or read data. A 2GB MicroSD card and a USB MicroSD card reader are provided with the board.
Additionally, the board is fully programmable, providing a hardware platform on which firmware can be tested in parallel with development of application hardware. Communications and processing are performed by an ARM7-based ADuC7024 micro-controller, and firmware is written in C. A programming cable is provided with the board, and a development environment and header files are supplied on this page. Finally, the platform can be duplicated in the final application, having already been tested with the application firmware. Schematics and layout can be found under the Supporting Documentation tab and can be used freely in your application.
Note that this board is not configured to display real-time data. For real-time evaluation of the ADXL346, please refer to the Inertial Sensor Evaluation Board. For a simple ADXL346 Breakout Board, refer to the EVAL-ADXL346Z.
Resources
Tools & Simulations 1
ADXL345/6 Accelerometer FIFO Over-sampling Calculator
