Overview
Features and Benefits
- Analog I/O
Multichannel, 12-bit, 1 MSPS ADC
Up to 16 ADC channels
Fully differential and single-ended modes
0 V to VREF analog input range12-bit voltage output DACs
Up to 4 DAC outputs available
On-chip voltage reference
On-chip temperature sensor (±3°C)
Voltage comparator
- Microcontroller
ARM7TDMI core, 16-bit/32-bit RISC architecture
JTAG port supports code download and debug - Clocking options
Trimmed on-chip oscillator (±3%)
External watch crystal
External clock source up to 44 MHz
41.78 MHz PLL with programmable divider - See datasheet for additional features
Product Details

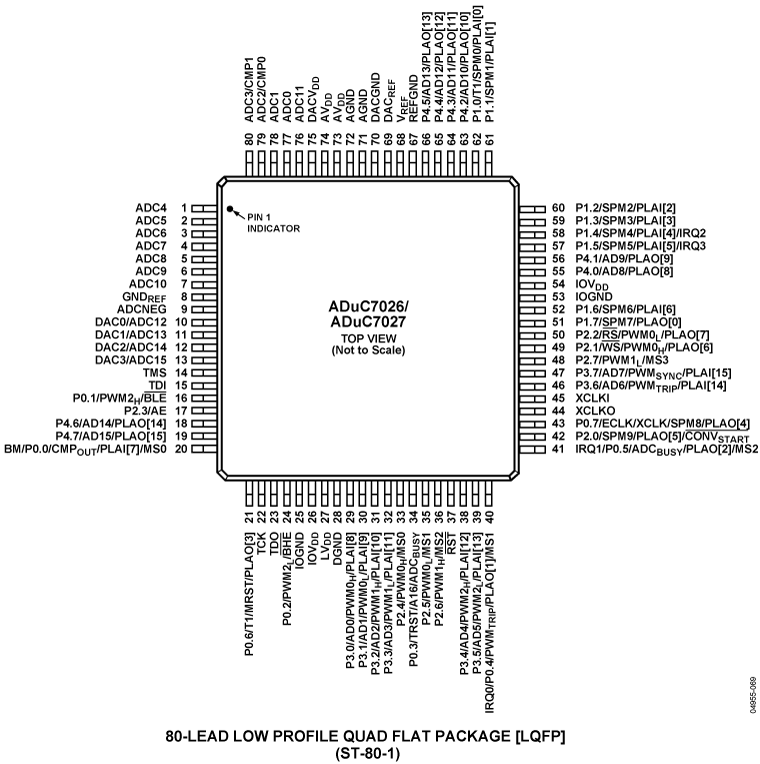

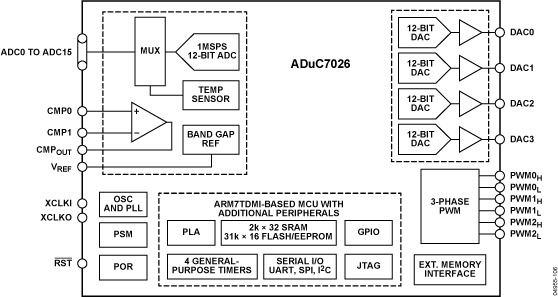

The ADuC7019 / ADuC7020 / ADuC7021 / ADuC7022 / ADuC7024 / ADuC7025 / ADuC7026 / ADuC7027 / ADuC7028 / ADuC7029 are fully integrated, 1 MSPS, 12-bit data acquisition systems incorporating high performance multichannel ADCs, 16-bit/32-bit MCUs, and Flash®/EE memory on a single chip.
The ADC consists of up to 12 single-ended inputs. An additional four inputs are available but are multiplexed with the four DAC output pins. The four DAC outputs are available only on certain models (ADuC7020, ADuC7026, ADuC7028, and ADuC7029). However, in many cases where the DAC outputs are not present, these pins can still be used as additional ADC inputs, giving a maximum of 16 ADC input channels. The ADC can operate in single-ended or differential input mode. The ADC input voltage is 0 V to VREF. A low drift band gap reference, temperature sensor, and voltage comparator complete the ADC peripheral set.
Depending on the part model, up to four buffered voltage output DACs are available on-chip. The DAC output range is programmable to one of three voltage ranges.
The devices operate from an on-chip oscillator and a PLL generating an internal high frequency clock of 41.78 MHz (UCLK). This clock is routed through a programmable clock divider from which the MCU core clock operating frequency is generated. The microcontroller core is an ARM7TDMI®, 16-bit/32-bit RISC machine, which offers up to 41 MIPS peak performance. Eight kilobytes of SRAM and 62 kilobytes of nonvolatile Flash/EE memory are provided on-chip. The ARM7TDMI core views all memory and registers as a single linear array.
On-chip factory firmware supports in-circuit serial download via the UART or I2 C serial interface port; nonintrusive emulation is also supported via the JTAG interface. These features are incorporated into a low cost QuickStart™ development system supporting this MicroConverter® family.
The parts operate from 2.7 V to 3.6 V and are specified over an industrial temperature range of −40°C to +125°C. When operating at 41.78 MHz, the power dissipation is typically 120 mW. The ADuC7019 / ADuC7020 / ADuC7021 / ADuC7022 / ADuC7024 / ADuC7025 / ADuC7026 / ADuC7027 / ADuC7028 / ADuC7029 are available in a variety of memory models and packages (see Ordering Guide).
APPLICATIONS
- Industrial control and automation systems
- Smart sensors, precision instrumentation
- Base station systems, optical networking
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
AN-908: Interfacing the HD44780-Based Character LCD to an ADuC702x (Rev. 0)2/14/2015
-
• AN-908 Companion Code
ZIP -
AN-759: Expanding the Number of DAC Outputs on the ADuC8xx and ADuC702x Families (uC012) (Rev. 0)2/14/2015
-
• AN-759 Companion Code (zip, 3,464 bytes)
ZIP -
AN-806: Flash Programming via I2C—Protocol Type 5 (Rev. D)2/14/2015
-
• AN-806: Companion Code, Schematic and USB Drivers
ZIP -
AN-895: ADuC702x MicroConverter I²C-Compatible Interface (Rev. 0)2/14/2007
-
• AN-895 Companion Code
ZIP -
AN-840: Code Update via I²C®; (Rev. 0)1/17/2007
-
• AN-840 Companion Code
ZIP -
AN-831: Implementing a Counter with the ADuC702x Family (Rev. A)3/31/2006
-
AN-765: Measuring Duration of a Short Pulse on the ADuC702x Family (Rev. 0)3/31/2006
-
AN-798: Using the PWM to Generate Analog Output on the ADuC702x Family (Rev. 0)7/12/2005
-
AN-724: ADuC702x Serial Download Protocol (Rev. C)12/21/2004
-
ADuC7026 Provides Programmable Voltages for Evaluating Multiple Power Supply Systems8/1/2012 Analog Dialogue
-
Part 2: Simplifying Design of Industrial Process-Control Systems with PLC Evaluation Boards9/10/2009
-
Part 1: Simplifying Design of Industrial Process-Control Systems with PLC Evaluation Boards9/10/2009
-
Detecting Human Falls with a 3-Axis Digital Accelerometer7/1/2009 Analog Dialogue
-
Analog Microcontroller Forms Heart of Low-Cost, High-Efficiency PA Monitor3/1/2009 Analog Dialogue
-
Integrated Route Taken to Pulse Oximetry12/26/2004
-
Precision Analog Microcontroller Simplifies Optical Transceiver Design6/3/2004
Software & Systems Requirements
Code Examples
ADuC7019/ADuC702x Code Examples
Reference Designs (1)
Design Resources
