ADUC7020

Precision Analog Microcontroller, 12-Bit Analog I/O, ARM7TDMI® MCU

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 5
1ku List Price Starting From $9.11
Features
  • Analog I/O
    Multichannel, 12-bit, 1 MSPS ADC
    Up to 16 ADC channels
    Fully differential and single-ended modes
    0 V to VREF analog input range12-bit voltage output DACs
    Up to 4 DAC outputs available
    On-chip voltage reference
    On-chip temperature sensor (±3°C)
    Voltage comparator
  • Microcontroller
    ARM7TDMI core, 16-bit/32-bit RISC architecture
    JTAG port supports code download and debug
  • Clocking options
    Trimmed on-chip oscillator (±3%)
    External watch crystal
    External clock source up to 44 MHz
    41.78 MHz PLL with programmable divider
  • See datasheet for additional features
Additional Details
show more Icon

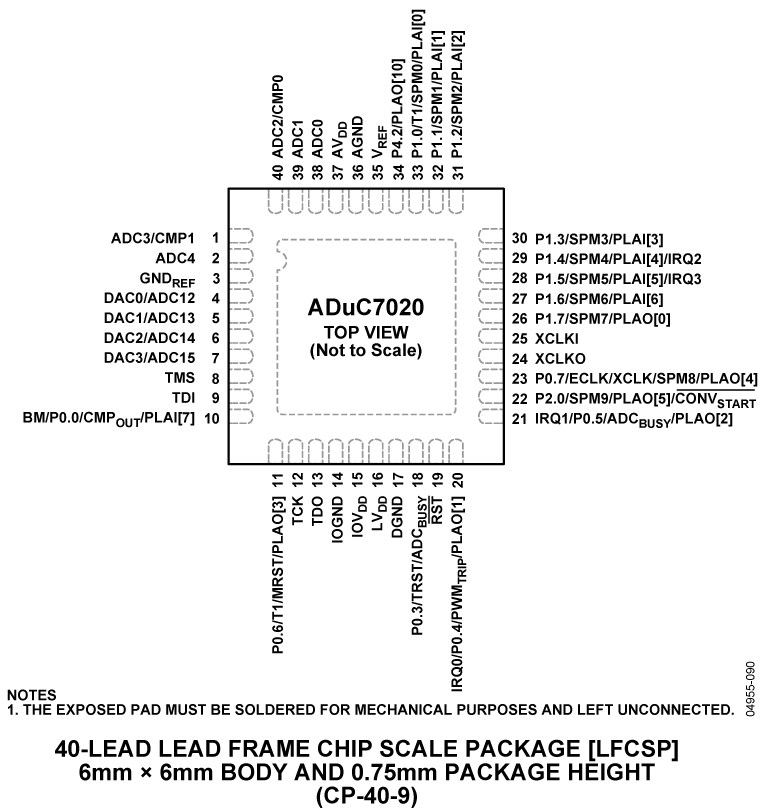

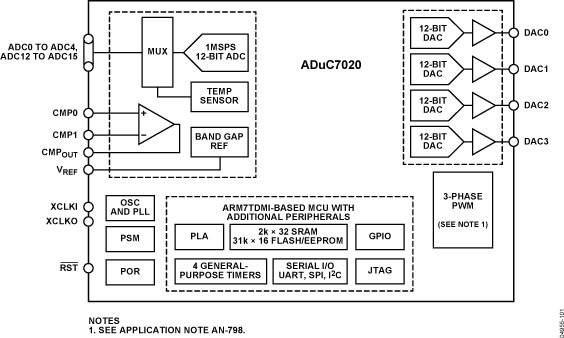

The ADuC7019 / ADuC7020 / ADuC7021 / ADuC7022 / ADuC7024 / ADuC7025 / ADuC7026 / ADuC7027 / ADuC7028 / ADuC7029 are fully integrated, 1 MSPS, 12-bit data acquisition systems incorporating high performance multichannel ADCs, 16-bit/32-bit MCUs, and Flash®/EE memory on a single chip.

The ADC consists of up to 12 single-ended inputs. An additional four inputs are available but are multiplexed with the four DAC output pins. The four DAC outputs are available only on certain models (ADuC7020, ADuC7026, ADuC7028, and ADuC7029). However, in many cases where the DAC outputs are not present, these pins can still be used as additional ADC inputs, giving a maximum of 16 ADC input channels. The ADC can operate in single-ended or differential input mode. The ADC input voltage is 0 V to VREF. A low drift band gap reference, temperature sensor, and voltage comparator complete the ADC peripheral set.

Depending on the part model, up to four buffered voltage output DACs are available on-chip. The DAC output range is programmable to one of three voltage ranges.

The devices operate from an on-chip oscillator and a PLL generating an internal high frequency clock of 41.78 MHz (UCLK). This clock is routed through a programmable clock divider from which the MCU core clock operating frequency is generated. The microcontroller core is an ARM7TDMI®, 16-bit/32-bit RISC machine, which offers up to 41 MIPS peak performance. Eight kilobytes of SRAM and 62 kilobytes of nonvolatile Flash/EE memory are provided on-chip. The ARM7TDMI core views all memory and registers as a single linear array.

On-chip factory firmware supports in-circuit serial download via the UART or I2C serial interface port; nonintrusive emulation is also supported via the JTAG interface. These features are incorporated into a low cost QuickStart development system supporting this MicroConverter® family.

The parts operate from 2.7 V to 3.6 V and are specified over an industrial temperature range of −40°C to +125°C. When operating at 41.78 MHz, the power dissipation is typically 120 mW. The ADuC7019 / ADuC7020 / ADuC7021 /  ADuC7022 / ADuC7024 / ADuC7025 / ADuC7026 / ADuC7027 / ADuC7028 / ADuC7029 are available in a variety of memory models and packages (see Ordering Guide).

APPLICATIONS

  • Industrial control and automation systems
  • Smart sensors, precision instrumentation
  • Base station systems, optical networking
Part Models 5
1ku List Price Starting From $9.11

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADUC7020BCPZ62
  • HTML
  • HTML
ADUC7020BCPZ62-RL7
  • HTML
  • HTML
ADUC7020BCPZ62I
  • HTML
  • HTML
ADUC7020BCPZ62I-RL
  • HTML
  • HTML
ADUC7020BCPZ62IRL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Nov 10, 2022

- 22_0277

Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages

ADUC7020BCPZ62

PRODUCTION

ADUC7020BCPZ62-RL7

PRODUCTION

ADUC7020BCPZ62I

PRODUCTION

ADUC7020BCPZ62I-RL

PRODUCTION

ADUC7020BCPZ62IRL7

PRODUCTION

Aug 1, 2016

- 16_0035

Assembly Relocation of Select LFCSP, Mini-LFCSP and LFCSP Side Solderable Products to STATS ChipPAC China Jiangyin

May 23, 2014

- 13_0233

Assembly Transfer of Select 6x6 and 7x7mm LFCSP Products to STATS ChipPAC China.

Mar 7, 2012

- 10_0241

Conversion of LFCSP package outline from Punch to Sawn of package sizes 4x4, 5x5, 6x6 and 7x7mm and a transfer of assembly site.

ADUC7020BCPZ62

PRODUCTION

ADUC7020BCPZ62-RL7

PRODUCTION

ADUC7020BCPZ62I

PRODUCTION

ADUC7020BCPZ62I-RL

PRODUCTION

ADUC7020BCPZ62IRL7

PRODUCTION

Oct 18, 2016

- 16_0036

Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select LFCSP Products

Aug 6, 2014

- 13_0232

Assembly and Test Transfer of Select 6x6 and 7x7mm LFCSP Products to STATS ChipPAC China

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Nov 10, 2022

- 22_0277

arrow down

Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages

ADUC7020BCPZ62

PRODUCTION

ADUC7020BCPZ62-RL7

PRODUCTION

ADUC7020BCPZ62I

PRODUCTION

ADUC7020BCPZ62I-RL

PRODUCTION

ADUC7020BCPZ62IRL7

PRODUCTION

Aug 1, 2016

- 16_0035

arrow down

Assembly Relocation of Select LFCSP, Mini-LFCSP and LFCSP Side Solderable Products to STATS ChipPAC China Jiangyin

May 23, 2014

- 13_0233

arrow down

Assembly Transfer of Select 6x6 and 7x7mm LFCSP Products to STATS ChipPAC China.

Mar 7, 2012

- 10_0241

arrow down

Conversion of LFCSP package outline from Punch to Sawn of package sizes 4x4, 5x5, 6x6 and 7x7mm and a transfer of assembly site.

ADUC7020BCPZ62

PRODUCTION

ADUC7020BCPZ62-RL7

PRODUCTION

ADUC7020BCPZ62I

PRODUCTION

ADUC7020BCPZ62I-RL

PRODUCTION

ADUC7020BCPZ62IRL7

PRODUCTION

Oct 18, 2016

- 16_0036

arrow down

Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select LFCSP Products

Aug 6, 2014

- 13_0232

arrow down

Assembly and Test Transfer of Select 6x6 and 7x7mm LFCSP Products to STATS ChipPAC China

Evaluation Kit

Evaluation Kits 1

EVAL-ADUC7020

ADUC7019/20/21/22 Quick Start Development System

zoom

EVAL-ADUC7020

ADUC7019/20/21/22 Quick Start Development System

ADUC7019/20/21/22 Quick Start Development System

Product Detail

Development systems for evaluation of the ADuC7019/ ADuC7020/ ADuC7021/ ADuC7122, fully integrated, 1 MSPS, 12-bit data acquisition systems incorporating high performance multichannel ADCs, 16-bit/32-bit MCUs, and Flash/EE memory on a single chip.

The QuickStart and QuickStart Plus Kits for the ADuC702x Precision Analog Microcontrollers feature debug via UART and an assembly & C-source debugging environment. In addition the QuickStart Plus Kit allows true non-intrusive JTAG emulation. You may who already have this emulator if you have evaluated other ADuC parts from Analog Devices. These kits are intended for any new users who want to have a comprehensive hardware development environment.


ADI also provides a MiniKit. This kit is ideal for system prototyping, student projects or university labs.
