Features
- Dual 16 bit SAR ADCs with no missing codes, 13+ ENOB, 380ns conversion speed for high precision closed loop control.
- 240 MHz ARM Cortex M4 Core with Floating Point Unit to support advanced programming models and complex algorithms.
- 384KB SRAM and 2MB flash memory for large program size.
- Advanced PWM and timer functions for improved torque ripple and motor performance.
- SINC filters for glueless connection to AD74xx isolated converters.
- Harmonic Analysis Engine for compliant grid connection.
- Ethernet and USB to support networked interfaces.
- Two CAN interfaces, three UARTS, two SPIs, two SPORTs, eight 32-bit timers, two two-wire interfaces and four quadrature encoder interfaces.
- 16 bit asynchronous memory bus for external SRAM or FPGA interfacing.
- 24x24 176 lead LQFP package with 91 GPIO pins and 16 ADC input pins optimized for motor control applications.
- Up to 105C ambient operating temperature for support of industrial applications.
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The ADSP-CM408F Mixed-Signal Control Processor integrates dual high precision 16 bit ADCs and an ARM® Cortex-M4TM processor core with floating-point unit operating at 240 MHz core clock frequency and integrating 384KB of SRAM memory, 2M byte of flash memory, and accelerators and peripherals optimized for motor control, photo-voltaic (PV) inverter control and other embedded control applications.
2
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADSP-CM408F
Documentation
Filters
1 Applied
-
All
-
Application Note
-
Informational
-
Integrated Circuit Anomaly
-
Technical Articles
-
Processor Manual
-
User Guide
-
Data Sheet
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
1
ADSP-CM402F/CM403F/CM407F/CM408F/CM409F: Mixed-Signal Control Processor with ARM Cortex-M4 and 16-bit ADCs Data Sheet (Rev.A)
Application Note
19
HTML
HTML
HTML
Informational
2
HTML
HTML
Integrated Circuit Anomaly
1
Technical Articles
2
470 kB
Processor Manual
2
User Guide
2
Documentation
Data Sheet 1
User Guide 1
Application Note 10
EE-361: ADSP-CM40x Power Supply Transistor Selection Guidelines (Rev.1)
EE-363: ADSP-CM40x Serial Flash Execute-in-Place Technology (Rev.2)
EE-359: ADSP-CM40x Boot Time Optimization and Device Initialization (Rev.2)
EE-365: Maximizing ADC Sampling Rate on ADSP-CM40x Mixed-Signal Control Processors (Rev.1)
EE-380: ADSP-CM40x Board Design Guidelines for Optimal ADC Performance
AN-1407: ADSP-CM402F/ADSP-CM403F/ADSP-CM407F/ADSP-CM408F/ADSP-CM409F Pulse Width Modulator in AC Motor Control Applications (Rev.0)
AN-1397: Using the ADM3065E 50 Mbps RS-485 Transceiver in EnDat Motor Control Encoder Applications (Rev.A)
AN-1265: Isolated Motor Control Feedback Using the ADSP-CM402F/ADSP-CM403F/ADSP-CM407F/ADSP-CM408F SINC Filters and the AD7401A (Rev.B)
AN-1267: Motor Control Feedback Sample Timing Using the ADSP-CM408F ADC Controller (Rev.A)
AN-1554: Pairing the fido5100 and fido5200 REM Switches with a Host and Network Processor
Technical Articles 1
Processor Manual 1
Integrated Circuit Anomaly 1
Informational 2
Webcast 2
Video
8
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADSP-CM408CSWZ-AF |
176-Lead LQFP_EP (24mm x 24mm w/ heatsink)
|
|
|
| ADSP-CM408CSWZ-BF |
176-Lead LQFP_EP (24mm x 24mm w/ heatsink)
|
|
- ADSP-CM408CSWZ-AF
- Pin/Package Drawing
-
176-Lead LQFP_EP (24mm x 24mm w/ heatsink)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADSP-CM408CSWZ-BF
- Pin/Package Drawing
-
176-Lead LQFP_EP (24mm x 24mm w/ heatsink)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Oct 18, 2016
- 16_0034
Assembly Relocation of Select LQFP,LQFP_EP,MQFP,TQFP,TQFP_EP Products to Stats ChipPAC China Jiangyin
ADSP-CM408CSWZ-AF
PRODUCTION
ADSP-CM408CSWZ-BF
PRODUCTION
Jul 22, 2020
- 20_0025
Obsolescence and Direct Replacement Options for ADSP-CM40xF Products with Internal Flash Memory
ADSP-CM408CSWZ-AF
PRODUCTION
ADSP-CM408CSWZ-BF
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Oct 18, 2016
- 16_0034
Assembly Relocation of Select LQFP,LQFP_EP,MQFP,TQFP,TQFP_EP Products to Stats ChipPAC China Jiangyin
ADSP-CM408CSWZ-AF
PRODUCTION
ADSP-CM408CSWZ-BF
PRODUCTION
Jul 22, 2020
- 20_0025
Obsolescence and Direct Replacement Options for ADSP-CM40xF Products with Internal Flash Memory
Software & Part Ecosystem
Software Development Tools
CrossCore® Utilities
Looking for Evaluation Software? You can find it here
Evaluation Kits 1
EVAL-CM40X-EZLITE

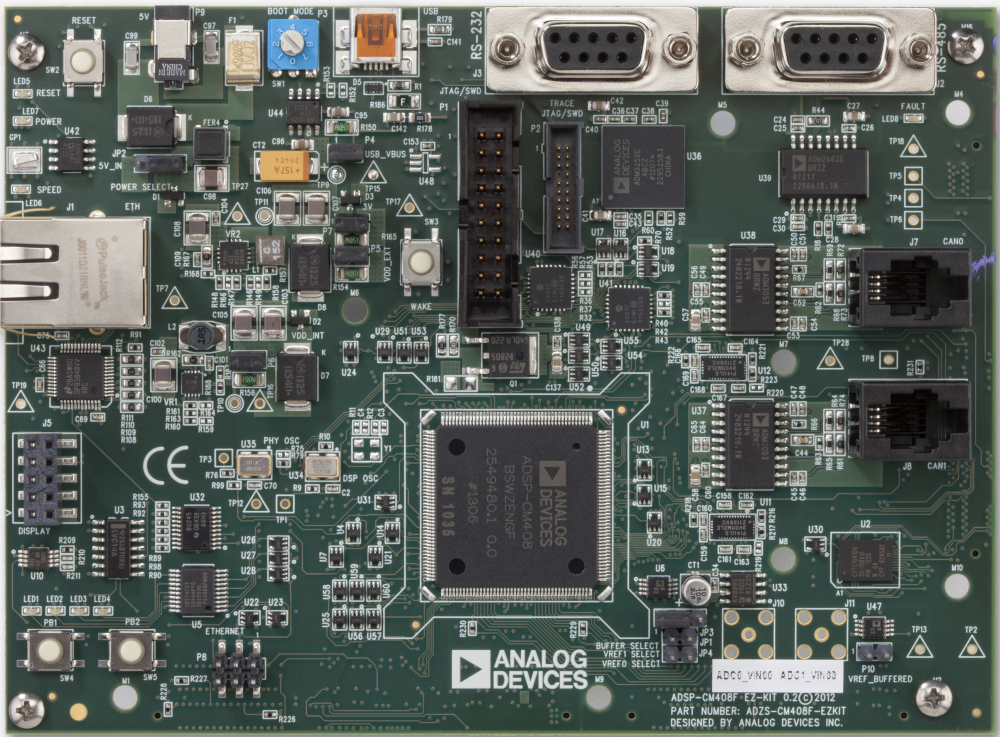

The ADSP-CM40x EZ-Kit Lite evaluation hardware provides low-cost hardware solutions for evaluating the ADSP-CM40x mixed-signal control processor family.
Features and Benefits
- ADSP-CM408F mixed-signal control processor
- 2 – 16-bit t ADCs with 8 inputs each
- 10/100 Ethernet PHY
- USB
- 2 – CAN interfaces ADI ADM3053
- RS-485 transceiver ADI ADM2682E
- RS-232 transceiver ADI ADM3252E
- 256K x 16–bit (4 Mb) SRAM
- 2 Mb internal quad SPI flash
- 40 character TWI display
- Expansion Interface
- ADSP-CM403F mixed-signal control processors
- 2 – 16-bit t ADCs with 12 inputs each
- 2 – 12-bit DACs
- CAN interface ADI ADM3053
- RS-232 transceiver ADI ADM3252E
- 256K x 16–bit (4 Mb) SRAM
- 2 Mb internal quad SPI flash
- 40 character TWI display
- Expansion Interface
Product Detail
The ADSP-CM403F EZ-KIT Lite and ADSP-CM408F EZ-KIT Lite include all hardware necessary to immediately begin evaluation.
- The ADSP-CM403F EZ-Board™ (for evaluating ADSP-CM402F & ADSP-CM403F) and the ADSP-CM408F EZ-Board™ (for evaluating ADSP-CM407F & ADSP-CM408F).
- The J-LINK LITE ARM debug probe from Segger.
The ADSP-CM403F EZ-Board and the ADSP-CM408F EZ-Board can also be purchased separately, if a debug probe is already available to the customer.
The ADSP-CM40x Board Design Database contains all of the electronic information required for the design, layout, fabrication and assembly of the ADSP-CM40x EZ-Boards, and is available to download from the Products Download area on this page.
Two expansion connectors are available for connecting probing boards that extend the system’s evaluation capabilities:

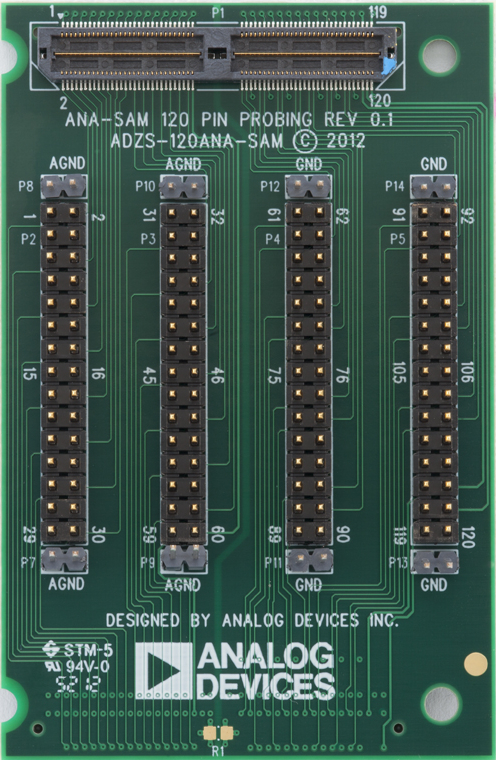

- Analog 120-Pin Probing Board - The board provides probing points for any analog signal of the 120-pin expansion interface connector.

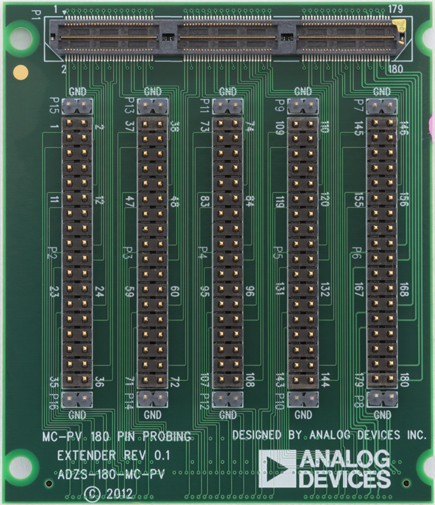

- PWM 180-Pin Probing Board - The board provides probing points for any PWM/digital signal of the 180-pin expansion interface connector.
