ADMV1013S

The ADMV1013S is a wideband, microwave upconverter optimized for point-to-point microwave radio designs operating in the 24 GHz to 44 GHz RF range.

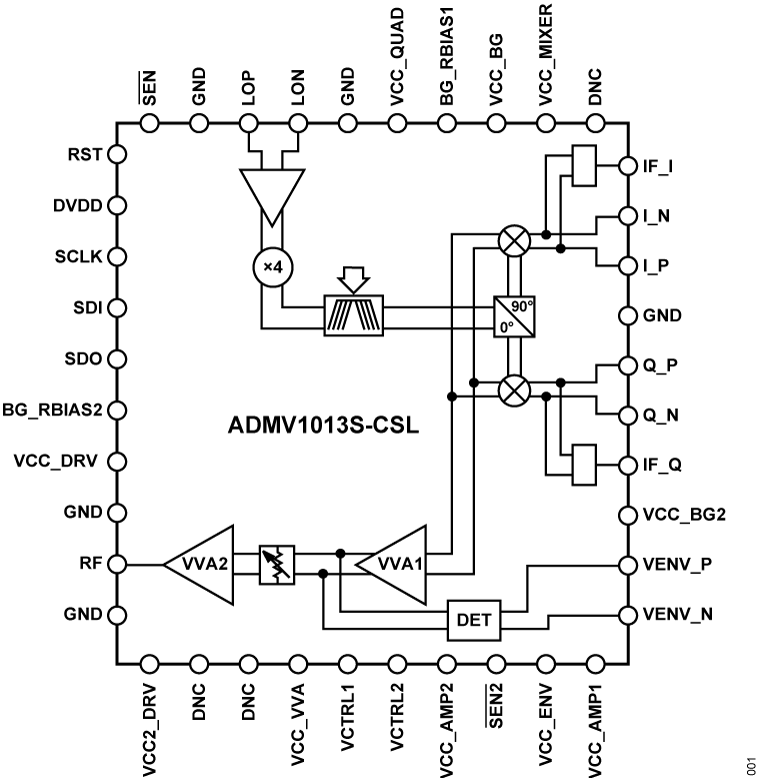

The upconverter offers two modes of frequency translation. The device is capable of direct conversion to RF from baseband in-phase quadrature (I/Q) input signals, as well as single-sideband (SSB) upconversion from complex intermediate frequency (IF) inputs. The baseband I/Q input path can be disabled and modulated complex IF signals, anywhere from 0.8 GHz to 6.0 GHz, can be inserted in the IF path and upconverted to 24 GHz to 44 GHz while suppressing the unwanted sideband by typically better than 26 dBc. The serial port interface (SPI) allows adjustment of the quadrature phase and mixer gate voltage to allow optimum sideband suppression and local oscillator (LO) nulling. In addition, the SPI allows powering down the output envelope detector to reduce power consumption.

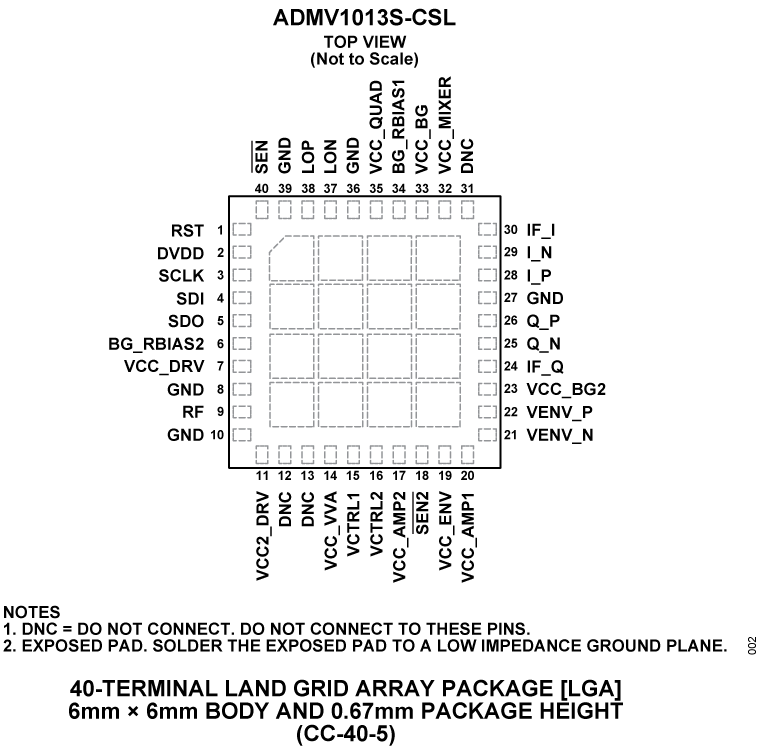

The ADMV1013S upconverter comes in a 40-terminal land grid array package (LGA) package. The ADMV1013S operates over the −40°C to +85°C case temperature range.

Additional application and technical information can be found in the Commercial Space Products Program brochure and ADMV1013 data sheet.

APPLICATIONS

• Low Earth orbit (LEO) and medium Earth orbit (MEO) satellites
• Geosynchronous Earth orbit (GEO) satellites
• Avionics
• Point to point microwave radios
• Radar and electronic warfare systems
