ADL6010

Fast Responding, 45 dB Range, 0.5 GHz to 43.5 GHz Envelope Detector

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 8
1ku List Price
price unavailable
Features
  • Schottky diode detector with linearization
  • Broadband 50 Ω input impedance
  • Accurate response from 0.5 GHz to 43.5 GHz with minimal slope variation
  • Input range of −30 dBm to +15 dBm, referred to 50 Ω
  • Excellent temperature stability
  • 2.1 V/VPEAK (output voltage per input peak voltage) slope at 10 GHz
  • Fast envelope bandwidth: 40 MHz
  • Fast output rise time: 4 ns
  • Low power consumption: 1.6 mA at 5.0 V

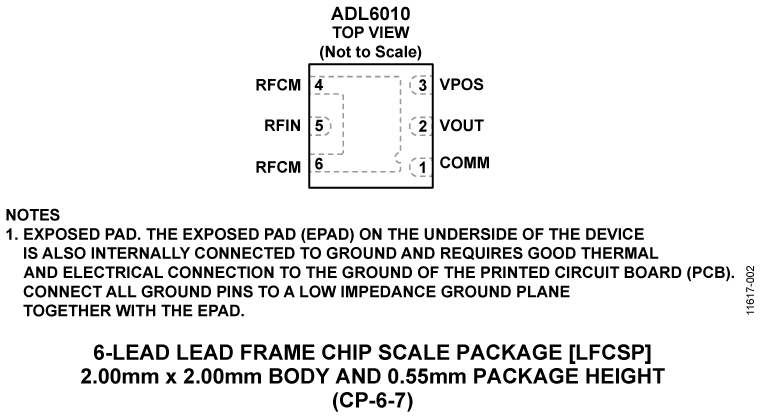

  • 2 mm × 2 mm, 6-lead LFCSP package
Additional Details
show more Icon

The ADL6010 is a versatile, broadband envelope detector covering the microwave spectrum. It provides state-of-the-art accuracy with very low power consumption (8 mW) in a simple, easy to use 6-lead format. The output is a baseband voltage proportional to the instantaneous amplitude of the radio frequency (RF) input signal. It exhibits minimal slope variation of the RF input to envelope output transfer function from 0.5 GHz to 43.5 GHz.

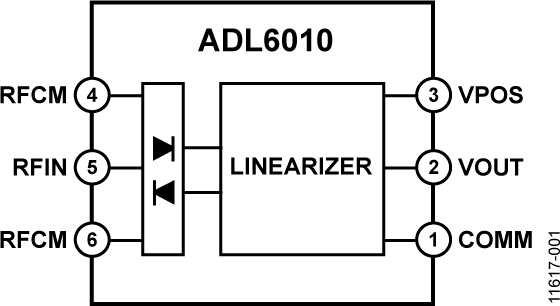

The detector cell uses a proprietary eight Schottky diode array followed by a novel linearizer circuit that creates a linear voltmeter with an overall scaling factor (or transfer gain) of nominally ×2.2 relative to the voltage amplitude of the input.

Although the ADL6010 is not inherently a power responding device, it remains convenient to specify the input in this way. Thus, the permissible input power, relative to a 50 Ω source input impedance, ranges from −30 dBm to +15 dBm. The corresponding input voltage amplitudes of 11.2 mV to 1.8 V generate quasi-dc outputs from about 25 mV to 4 V above common (COMM).

A subtle aspect of the balanced detector topology is that no even-order distortion, caused by nonlinear source loading, occurs at the input. This is an important benefit in applications where a low ratio coupler is used to extract a signal sample and is a significant improvement over traditional diode detectors.

The power equivalent of a fluctuating RF input amplitude can be extracted by the addition of an rms-to-dc converter IC. Alternatively, the baseband output can be applied to a suitably fast analog-to-digital converter (ADC) and the rms value (and other signal metrics, such as peak to average ratio) calculated in the digital domain.

The output response accuracy is insensitive to variation in the supply voltage, which can range from 4.75 V to 5.25 V. The ultralow power dissipation contributes to its long-term stability.

The ADL6010ACPZN is specified for operation from −40°C to +85°C, and the ADL6010SCPZN is specified for operation from −55°C to +125°C. Both are available in a 6-lead, 2 mm × 2 mm LFCSP package.

Applications

  • Microwave point to point links
  • Microwave instrumentation
  • Radar-based measurement systems
Part Models 8
1ku List Price
price unavailable

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADL6010ACPZN
  • HTML
  • HTML
ADL6010ACPZN-R2
  • HTML
  • HTML
ADL6010ACPZN-R7
  • HTML
  • HTML
ADL6010CHIPS
  • HTML
  • HTML
ADL6010CHIPS-SX
  • HTML
  • HTML
ADL6010SCPZN
  • HTML
  • HTML
ADL6010SCPZN-R2
  • HTML
  • HTML
ADL6010SCPZN-R7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 1, 2016

- 16_0035

Assembly Relocation of Select LFCSP, Mini-LFCSP and LFCSP Side Solderable Products to STATS ChipPAC China Jiangyin

Aug 30, 2022

- 22_0192

Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 1, 2016

- 16_0035

arrow down

Assembly Relocation of Select LFCSP, Mini-LFCSP and LFCSP Side Solderable Products to STATS ChipPAC China Jiangyin

Aug 30, 2022

- 22_0192

arrow down

Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

EVAL-ADL6010

ADL6010 Evaluation Board

zoom

EVAL-ADL6010

ADL6010 Evaluation Board

ADL6010 Evaluation Board

Product Detail

The ADL6010-EVALZ is a fully populated, 4-layer, Rogers 4003-based evaluation board. For normal operation, it requires a 5 V/27 mA power supply. The 5 V power supply must be connected to the VPOS and GND test loops. The RF input signal is applied to the 2.92 mm connector (RFIN). The output voltage is available on the SMA connector (VOUT) or on the test loop (V_VOUT).

Resources

Tools & Simulations

Tools & Simulations 1

Reference Designs

Reference Designs 3

Voltage Standing Wave Ratio (VSWR) Evaluation Board Measurement Setup

Calibration-Free Return Loss Measurement System

Circuit Block Diagram

20 GHz to 37.5 GHz, RF Automatic Gain Control (AGC) Circuit

Microwave Power Meter Simplified Schematic

A 40 GHz Microwave Power Meter with a Range from −30 dBm to +15 dBm
