ADG1604

1 Ω Typical On Resistance, ±5 V, +12 V, +5 V, and +3.3 V, 4:1 Multiplexer

Buy Now

Production

Top

Overview

Features and Benefits
Product Details

Features and Benefits

1 Ω typical on resistance
0.2 Ω on resistance flatness
±3.3 V to ±8 V dual-supply operation
3.3 V to 16 V single-supply operation
No V_L supply required
3 V logic-compatible inputs
Rail-to-rail operation
Continuous current per channel

LFCSP: 504 mA
TSSOP: 315 mA

14-lead TSSOP and 16-lead, 4 mm × 4 mm LFCSP

Product Details

The ADG1604 is a complementary metal-oxide semiconductor (CMOS) analog multiplexer and switches one of four inputs to a common output, D, as determined by the 3-bit binary address lines, A0, A1, and EN. Logic 0 on the EN pin disables the device. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. All switches exhibit break-before-make switching action. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.

The ultralow on resistance of these switches make them ideal solutions for data acquisition and gain switching applications where low on resistance and distortion is critical. The on resistance profile is very flat over the full analog input range, ensuring excellent linearity and low distortion when switching audio signals.

The CMOS construction ensures ultralow power dissipation, making the devices ideally suited for portable and batterypowered instruments.

Product Highlights

1.6 Ω maximum on resistance over temperature.
Minimum distortion: THD + N = 0.007%.
3 V logic-compatible digital inputs: V_INH = 2.0 V, V_INL = 0.8 V.
No V_L logic power supply required.
Ultralow power dissipation: <16 nW.
14-lead TSSOP and 16-lead, 4 mm × 4 mm LFCSP.

Applications

Communication systems
Medical systems
Audio signal routing
Video signal routing
Automatic test equipment
Data acquisition systems
Battery-powered systems
Sample-and-hold systems
Relay replacements

Product Categories

Switches and Multiplexers
- Dual-Supply Analog Switches and Multiplexers
- Single-Supply Analog Switches and Multiplexers

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (2)

EVAL-16LFCSP

Evaluation Board for the 16-Lead LFCSP Devices in the Switches and Multiplexers Portfolio

EVAL-14TSSOPEBZ

EVAL-14TSSOPEBZ Evaluation Board

EVAL-16LFCSP

View Detailed Evaluation Kit Information

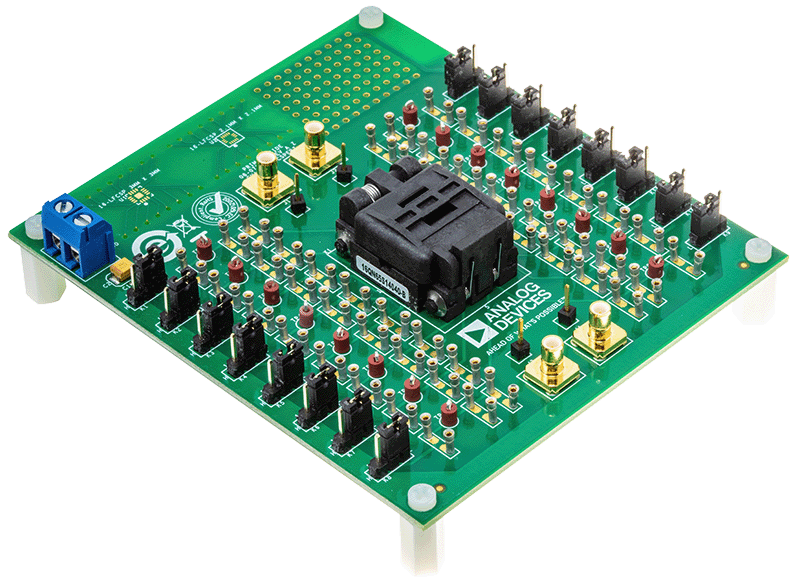

The EVAL-16LFCSPEBZ enables easy evaluation of the 16-lead lead frame chip scale package (LFCSP) devices in the Switches and Multiplexers Portfolio that are purchased separately. The EVAL-16LFCSPEBZ is supplied with a clamshell socket to secure a 16-lead LFCSP device to the evaluation board without the need for soldering. In addition, there are three sets of gold pin connectors in each trace, for board flexibility and reusability for multiple evaluations.

Figure 1 in the user guide shows the EVAL-16LFCSPEBZ. A 16-lead LFCSP device can be inserted into the socket in the center of the evaluation board. Each device pin has a corresponding three-pin header link, from K1 to K16. This can either be connected to an external signal source by removing the corresponding link or use the link to choose between V_DD or GND. A wire screw terminal, J5, supplies the V_DD and GND. The Subminiature Version B (SMB) connectors on the EVAL-16LFCSPEBZ allow additional external signals to be supplied to the device. In addition, there is a perfboard space and two 16-lead LFCSP pads (3 mm x 3 mm and 2.1 mm x 2.1 mm) available on top of the EVAL-16LFCSPEBZ for prototyping.

The full specifications of the device under test (DUT) are available in the corresponding product data sheet, which must be consulted with the EVAL-16LFCSPEBZ user guide when using the EVAL-16LFCSPEBZ.

Features & Benefits

16-lead, 4 mm × 4 mm LFCSP evaluation board
Easily changeable clamshell socket for the main device
Gold pin connectors for the addition of passive components
SMB connectors for the input and output of signals
Additional space on board for prototyping

Resources

UG-2093: Evaluation Board for the 16-Lead LFCSP Devices in the Switches and Multiplexers Portfolio (Rev. 0)

PDF

562.19 K

EVAL-14TSSOPEBZ

View Detailed Evaluation Kit Information

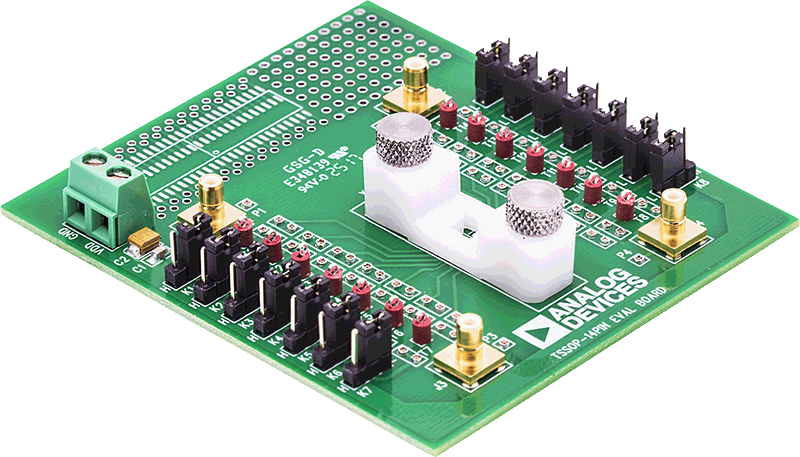

The EVAL-14TSSOPEBZ evaluation board evaluates 14-lead TSSOP devices in the Switches and Multiplexers Portfolio that must be purchased separately from the evaluation board. A clamp is supplied with the EVAL-14TSSOPEBZ to secure a 14-lead TSSOP device to the evaluation board without the need for soldering, making the board reusable for multiple devices.

A 14-lead TSSOP device can be clamped or soldered to the center of the evaluation board. Each pin of the device that the eval board evaluates has a corresponding link from K1 to K14 that can be set to either VDD or GND. A wire screw terminal supplies VDD and GND. SMB connectors on the board allow additional external signals to be supplied to the device. In addition, there is space available at the top of the board for prototyping.

For full details, see the corresponding product data sheet, which must be used in conjunction with this user guide when using the evaluation board.

Features & Benefits

14-lead TSSOP evaluation board
Clamp allows the main device to be easily changed
Gold pin connectors allow the addition of passive components
SMB connectors for the input/output of signals
Additional space on-board to allow for prototyping

Resources

UG-1208: Evaluation Board for 14-Lead TSSOP Devices in the Switches and Multiplexers Portfolio (Rev. 0)

PDF

301.6 K

Documentation & Resources

Data Sheets

ADG1604: 1 Ω Typical On Resistance, ±5 V, +12 V, +5 V, and +3.3 V, 4:1 Multiplexer Data Sheet (Rev. B)
9/8/2009

PDF

449 K

Application Notes

AN-1024: How to Calculate the Settling Time and Sampling Rate of a Multiplexer (Rev. 0)
7/31/2009

PDF

210 kB

User Guides

UG-1208: Evaluation Board for 14-Lead TSSOP Devices in the Switches and Multiplexers Portfolio (Rev. 0)
11/13/2017

PDF

301K

Informational

iCMOS Technology Enabling the +/-10V World
3/26/2015

Product Selection Guide

Switches and Multiplexers Product Selection Guide
5/9/2008

PDF

614 K

Reference Designs (1)

CN0568

Fast switching, High Performance PLL and Quadband VCO Frequency Synthesizer

CN0568

Fast switching, High Performance PLL and Quadband VCO Frequency Synthesizer

CN0568

Fast switching, High Performance PLL and Quadband VCO Frequency Synthesizer

View Detailed Reference Design Information

Features & Benefits

8GHz - 26GHz Frequency Operation
Quadband VCO provides Low Phase Noise over Wideband
Onboard Reference Clock for ease of Use
Arduino Form Factor Compatible

Parts Used

Resources

CN0568 Design Files

ZIP

2.02 M
