ADF4150HV

High Voltage, Fractional-N / Integer-N PLL Synthesizer

RECOMMENDED FOR NEW DESIGNS

ADF4150HV Functional Block Diagram slide

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $3.31

Features

Fractional-N synthesizer and integer-N synthesizer
High voltage charge pump: VP = 6 V to 30 V Tuning range: 1.0 V to 29 V (or ±1 V from VP supply rails)
RF bandwidth to 3.0 GHz
Programmable divide-by-1/-2/-4/-8/-16 outputs
Synthesizer power supply: 3.0 V to 3.6 V
Programmable dual-modulus prescaler of 4/5 or 8/9
Programmable output power level
Programmable charge pump currents
RF output mute function
3-wire serial interface
Analog and digital lock detect

Additional Details

The ADF4150HV is a 3.0 GHz, fractional-N or integer-N frequency synthesizer with an integrated high voltage charge pump. The synthesizer can be used to drive external wideband VCOs directly, eliminating the need for operational amplifiers to achieve higher tuning voltages. This simplifies design and reduces cost while improving phase noise, in contrast to active filter topologies, which tend to degrade phase noise compared to passive filter topologies.

The VCO frequency can be divided by 1, 2, 4, 8, or 16 to allow the user to generate RF output frequencies as low as 31.25 MHz. For applications that require isolation, the RF output stage can be muted. The mute function is both pin- and software-controllable.

A simple 3-wire interface controls all on-chip registers. The charge pump operates from a power supply ranging from 6 V to 30 V, whereas the rest of the device operates from 3.0 V to 3.6 V. The ADF4150HV can be powered down when not in use.

Applications

Wireless infrastructure
Microwave point-to-point/point-to-multipoint radios
VSAT radios
Test equipment
Private/land mobile radio

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $3.31

Technical Documents 6

ADF4150HV: High Voltage, Fractional-N/Integer-N PLL Synthesizer Data Sheet (Rev.0) 05/05/2010

UG-483: Evaluating the ADF4150HV PLL Frequency Synthesizer 06/13/2014

UG-406: Evaluation Board for the ADF4150HV PLL Frequency Synthesizer 09/14/2015

UG-476: PLL Software Installation Guide 08/10/2015

Driving the VCO of a High Voltage Phase-Locked Loop Frequency Synthesizer Circuit 03/01/2020

FAQ 03/03/2022

Reference Materials 5

RF, Microwave, and Millimeter Wave Product Selection Guide 07/13/2018

CN0228: Single Supply Powers a 28 V, High Voltage Phase-Locked Loop (PLL) Synthesizer 06/27/2014

Power Management Design for PLLs 09/01/2011

Fundamentals of Frequency Synthesis, Part 1: Phased Locked Loops 04/10/2017

Fundamentals of Frequency Synthesis, Part 2: Direct Digital Synthesis (DDS) 04/10/2017

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

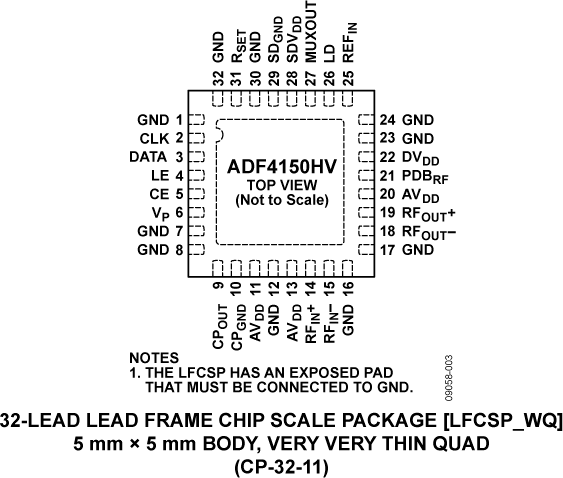

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADF4150HVBCPZ	32-Lead LFCSP (5mm x 5mm x 0.85mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADF4150HVBCPZ-RL7	32-Lead LFCSP (5mm x 5mm x 0.85mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

ADF4150HVBCPZ
Pin/Package Drawing
32-Lead LFCSP (5mm x 5mm x 0.85mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADF4150HVBCPZ-RL7
Pin/Package Drawing
32-Lead LFCSP (5mm x 5mm x 0.85mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

PCN/PDN Information

Filter by Model

Part Models

Product Lifecycle

PCN

Nov 10, 2022

- 22_0277

Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages

ADF4150HVBCPZ

PRODUCTION

ADF4150HVBCPZ-RL7

PRODUCTION

pdf

PCN22_0277_Form

xls

Material_Report

pdf

Detailed Change Description

pdf

Qualification Plan

pdf

Qualification Plan

pdf

Qualification Results Summary

Aug 1, 2016

- 16_0035

Assembly Relocation of Select LFCSP, Mini-LFCSP and LFCSP Side Solderable Products to STATS ChipPAC China Jiangyin

ADF4150HVBCPZ

PRODUCTION

ADF4150HVBCPZ-RL7

PRODUCTION

pdf

PCN16_0035_Form

xls

Material_Report

pdf

Qualification Results Summary

pdf

Qualification Results Summary

pdf

Qualification Results Summary

Jun 19, 2014

- 13_0259

Assembly Transfer of Select 5x5mm Multi-Die LFCSP Products to STATS ChipPAC China

ADF4150HVBCPZ

PRODUCTION

ADF4150HVBCPZ-RL7

PRODUCTION

pdf

PCN13_0259_Form

xls

Material_Report

Detailed Change Description

pdf

Qualification Results Summary

Filter by Model

Part Models

Product Lifecycle

PCN

Nov 10, 2022

- 22_0277

Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages

ADF4150HVBCPZ

PRODUCTION

ADF4150HVBCPZ-RL7

PRODUCTION

pdf

PCN22_0277_Form

xls

Material_Report

pdf

Detailed Change Description

pdf

Qualification Plan

pdf

Qualification Plan

pdf

Qualification Results Summary

Aug 1, 2016

- 16_0035

Assembly Relocation of Select LFCSP, Mini-LFCSP and LFCSP Side Solderable Products to STATS ChipPAC China Jiangyin

ADF4150HVBCPZ

PRODUCTION

ADF4150HVBCPZ-RL7

PRODUCTION

pdf

PCN16_0035_Form

xls

Material_Report

pdf

Qualification Results Summary

pdf

Qualification Results Summary

pdf

Qualification Results Summary

Jun 19, 2014

- 13_0259

Assembly Transfer of Select 5x5mm Multi-Die LFCSP Products to STATS ChipPAC China

ADF4150HVBCPZ

PRODUCTION

ADF4150HVBCPZ-RL7

PRODUCTION

pdf

PCN13_0259_Form

xls

Material_Report

Detailed Change Description

pdf

Qualification Results Summary

Companion Parts 4

Parts	Product Life Cycle	Description
Frequency Dividers, Prescalers, and Counters1
ADF5001	PRODUCTION	4 GHz TO 18 GHz Divide-by-4 Prescaler
Internal Power Switch Boost Regulators1
ADP1613	PRODUCTION	650 kHz /1.3 MHz Step-Up PWM DC-to-DC Switching Converter with 2.0 A Current Limit
Positive Linear Regulators (LDO)2
ADP150	PRODUCTION	Ultralow Noise, 150 mA CMOS Linear Regulator
ADP151	PRODUCTION	Ultralow Noise, 200 mA, CMOS Linear Regulator

EVAL-ADF4150HV

ADF4150HV Evaluation Board

ADF4150HV Evaluation Board

Download

EVAL-ADF4150HV

ADF4150HV Evaluation Board

Buy Now View Details

Product Detail

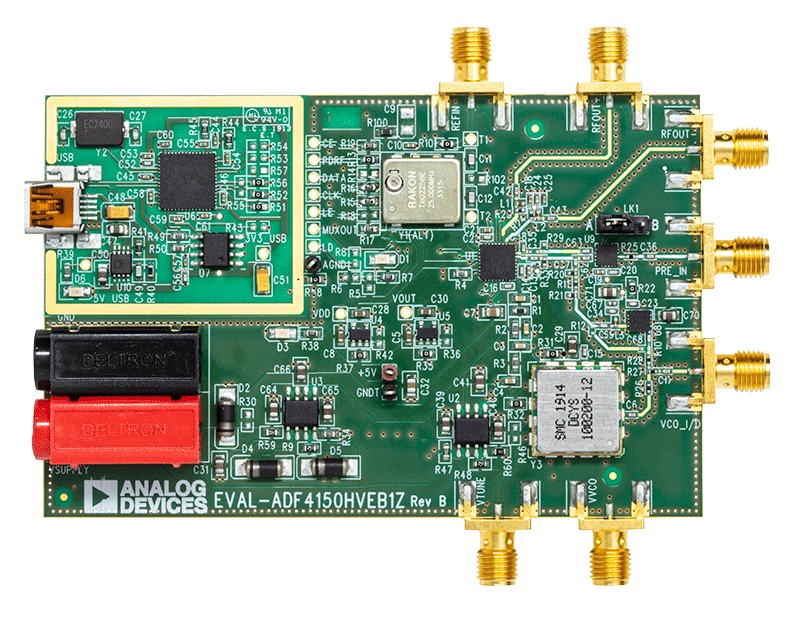

The Eval-ADF4150HVEB1Z is a fully populated, 4-layers evaluation board which allows evaluation of the ADF4150HV high voltage, fractional-N PLL synthesizer.

The board contains 25 MHz TCXO working as reference signal and a VCO covering octave frequency range from 1 GHz to 2 GHz. VCO output and RF outputs are connected to edge-mounted SMA connectors, which allows easy connection to a spectrum analyzer. For normal operation it requires two external supplies (30 V / 40 mA for VCO and 5 V / 180 mA for the rest of the board).

The ADF4150HV evaluation board software controls the operation of the ADF4150HV evaluation board from a PC over a USB port. The software installation program is available on the CD attached to evaluation kit. The software has to be installed before connecting the board to the PC and it will be available under Programs -> Analog Devices -> ADF4150HV.

Resources

pdf

UG-483: Evaluating the ADF4150HV PLL Frequency Synthesizer

1036 kB

pdf

UG-406: Evaluation Board for the ADF4150HV PLL Frequency Synthesizer

1457 kB

pdf

UG-476: PLL Software Installation Guide

520 kB

PDF

UG-476: PLL Software Installation Guide

421.58 K

ZIP

ADF4150HV Design Files

792.48 K

Software

ZIP

ADF4150/ADF4150HV/ADF4151/ADF4152HV Evaluation Board Software

21.19 M

EVAL-ADF4150HV

ADF4150HV Evaluation Board

ADIsimPLL™

ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.

Open Tool

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool
