AD9953
400 MSPS, 14-Bit, 1.8 V CMOS Direct Digital Synthesizer
Top
Overview
Features and Benefits
- 400 MSPS internal clock speed
- Integrated 14-bit DAC
- 32-bit tuning word
- Phase noise ≤ –120 dBc/Hz at 1 kHz offset (DAC output)
- Excellent dynamic performance:
>80 dB SFDR at 160 MHz (±100 kHz offset) AOUT - Serial input/output (I/O) control
- 1.8 V power supply
- Software and hardware controlled power-down

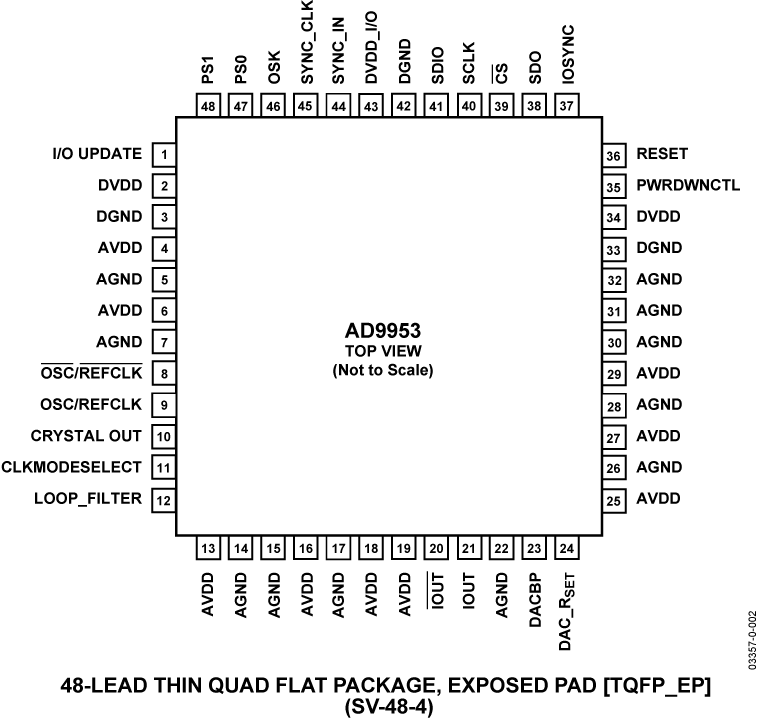

- 48-lead TQFP/EP package
- PLL REFCLK multiplier (4× to 20×)
- Internal oscillator, can be driven by a single crystal
- Phase modulation capability
- Multichip synchronization
Product Details

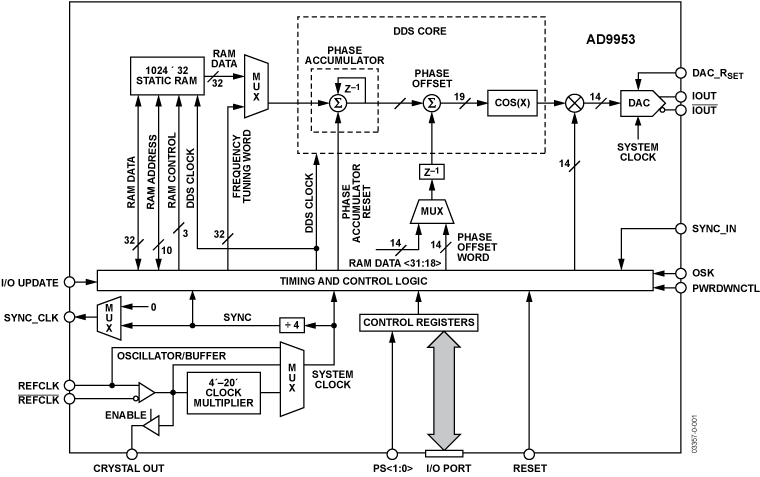

The AD9953 is a direct digital synthesizer (DDS) featuring a 14-bit DAC operating up to 400 MSPS. The AD9953 uses advanced DDS technology, coupled with an internal high speed, high performance DAC to form a digitally programmable, complete high frequency synthesizer capable of generating a frequency-agile analog output sinusoidal waveform at up to 200 MHz. The AD9953 includes an integrated 1024 × 32 static RAM to support flexible frequency sweep capability in several modes. The AD9953 is designed to provide fast frequency hopping and fine tuning resolution (32-bit frequency tuning word). The frequency tuning and control words are loaded into the AD9953 via a serial I/O port.
The AD9953 is specified to operate over the extended industrial temperature range of –40°C to +105°C.
Applications
- Agile VHF/UHF LO frequency synthesis
- FM chirp source for radar and scanning systems
- Nonlinear-shaped PSK/FSK modulator
- Test and measurement equipment
