AD9154

Quad, 16-Bit, 2.4 GSPS, TxDAC+® Digital-to-Analog Converter

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 4
1ku List Price Starting From $102.72
Features
  • Supports input data rates up to 1 GSPS
  • Proprietary, low spurious and distortion design
    Single carrier LTE 20 MHz bandwidth (BW), ACLR = 77 dBc at 180 MHz IF
    Six carrier GSM IMD = 78 dBc, 600 kHz carrier spacing at 180 MHz IF
    SFDR = 72 dBc at 180 MHz IF, −6 dBFS single tone
  • Flexible 8-lane JESD204B interface
  • Multiple chip synchronization
    Fixed latency
    Data generator latency compensation
  • Input signal power detection
  • High performance, low noise phase-locked loop (PLL) clock multiplier
  • Digital inverse sinc filter
  • Digital quadrature modulation using a numerically controlled oscillator (NCO)
  • Nyquist band selection—mix mode
  • Selectable 1×, 2×, 4×, and 8× interpolation filters
  • Low power: 2.11 W at 1.6 GSPS, full operating conditions

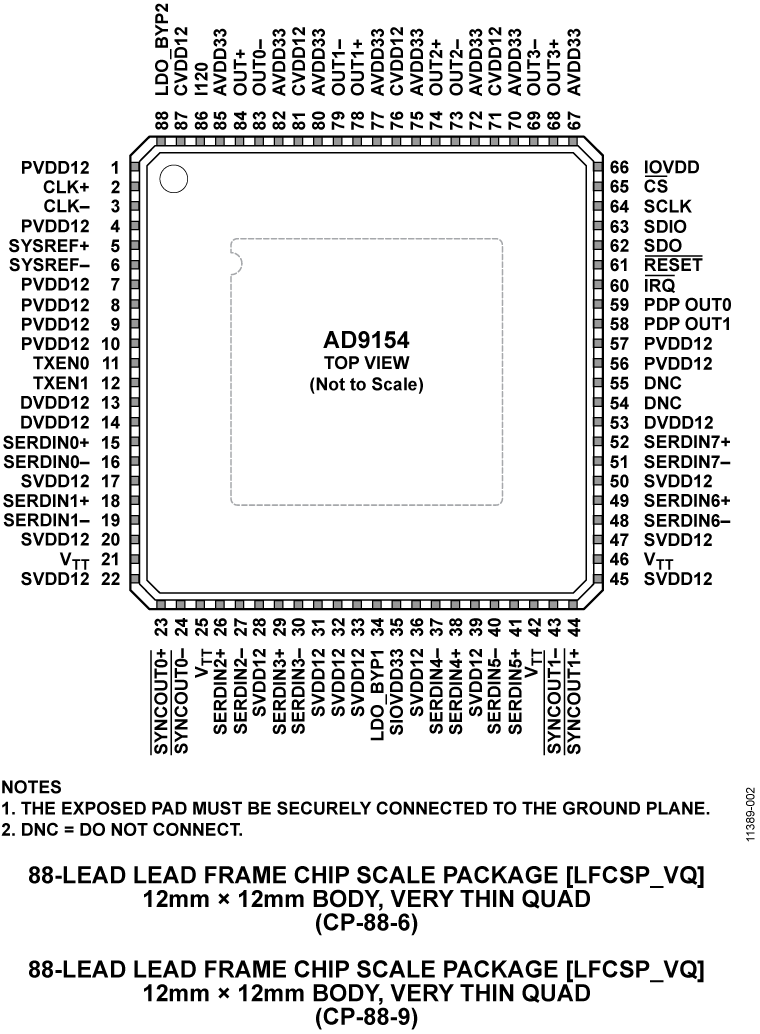

  • 88-lead, exposed pad LFCSP
Additional Details
show more Icon

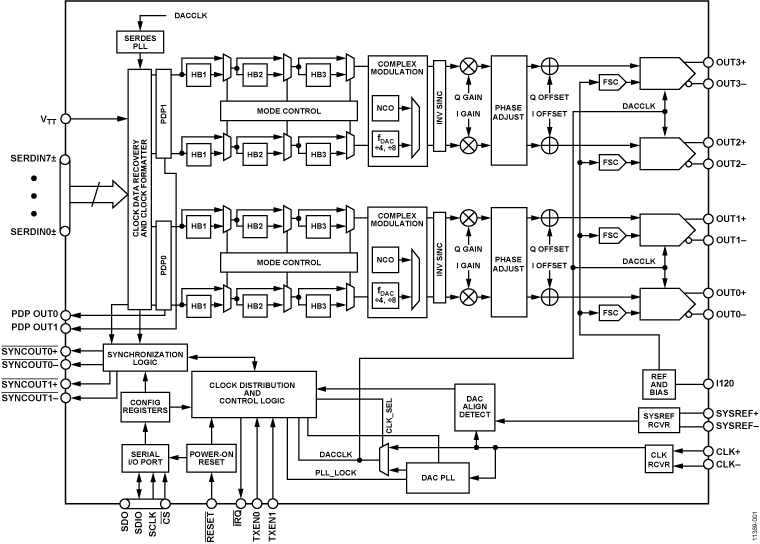

The AD9154 is a quad, 16-bit, high dynamic range digital-to-analog converter (DAC) that provides a maximum sample rate of 2.4 GSPS, permitting multicarrier generation up to the Nyquist frequency in baseband mode. The AD9154 includes features optimized for direct conversion transmit applications including complex digital modulation, input signal power detection, and gain, phase, and offset compensation. The DAC outputs are optimized to interface seamlessly with the ADRF6720-27 radio frequency quadrature modulator (AQM) from Analog Devices, Inc. In mix mode, the AD9154 DAC can reconstruct carriers in the second and third Nyquist Zones. A serial port interface (SPI) provides the programming/readback of internal parameters. The full-scale output current can be programmed over a range of 4 mA to 20 mA. The AD9154 is available in two different 88-lead LFCSP packages.

Product Highlights

  • Ultrawide signal bandwidth enables emerging wideband and multiband wireless applications.
  • Advanced low spurious and distortion design techniques provide high quality synthesis of wideband signals from baseband to high intermediate frequencies.
  • JESD204B Subclass 1 support simplifies multichip synchronization.
  • Small package size with a 12 mm × 12 mm footprint.

Applications

  • Wireless communications
    Multicarrier LTE and GSM base stations
    Wideband repeaters
    Software defined radios
  • Wideband communications
    Point to point microwave radio
  • Transmit diversity, multiple input/multiple output (MIMO)
  • Instrumentation
  • Automated test equipment
Part Models 4
1ku List Price Starting From $102.72

close icon

Documentation

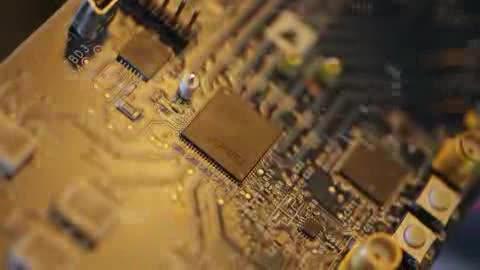

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD9154BCPAZ
  • HTML
  • HTML
AD9154BCPAZRL
  • HTML
  • HTML
AD9154BCPZ
  • HTML
  • HTML
AD9154BCPZRL
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 26, 2023

- 23_0025

Package Outline Drawing and Data Sheet Revision for Select LFCSP Products in Amkor

AD9154BCPAZ

PRODUCTION

AD9154BCPAZRL

PRODUCTION

AD9154BCPZ

PRODUCTION

AD9154BCPZRL

PRODUCTION

Sep 1, 2016

- 16_0169

AD9154 Die Revision and Data Sheet Update

AD9154BCPAZ

PRODUCTION

AD9154BCPAZRL

PRODUCTION

AD9154BCPZ

PRODUCTION

AD9154BCPZRL

PRODUCTION

Dec 15, 2014

- 14_0265

AD9154 Die Revision

AD9154BCPZ

PRODUCTION

AD9154BCPZRL

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 26, 2023

- 23_0025

arrow down

Package Outline Drawing and Data Sheet Revision for Select LFCSP Products in Amkor

AD9154BCPAZ

PRODUCTION

AD9154BCPAZRL

PRODUCTION

AD9154BCPZ

PRODUCTION

AD9154BCPZRL

PRODUCTION

Sep 1, 2016

- 16_0169

arrow down

AD9154 Die Revision and Data Sheet Update

AD9154BCPAZ

PRODUCTION

AD9154BCPAZRL

PRODUCTION

AD9154BCPZ

PRODUCTION

AD9154BCPZRL

PRODUCTION

Dec 15, 2014

- 14_0265

arrow down

AD9154 Die Revision

AD9154BCPZ

PRODUCTION

AD9154BCPZRL

PRODUCTION

Software & Part Ecosystem


JESD204x Frame Mapping Table Generator
Info:False

The JESD204x Frame Mapping Table Generator tool consists of two Windows executables that will allow the user to input any valid combination of JESD204x parameters (L, M, F, S, NP) in order to output a .csv file that illustrates the frame mapping of the JESD204x mode in table format. There is an executable that allows the user to input a single JESD204x mode and another, that allows the user to input the parameters for multiple JESD204x modes in a specified .csv format in order to output a .csv file that illustrates the frame mapping of each of the JESD204x modes that were input into separate tables.


JESD204 Interface Framework
Info:False

Integrated JESD204 software framework for rapid system-level development and optimization

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits 2

reference details image

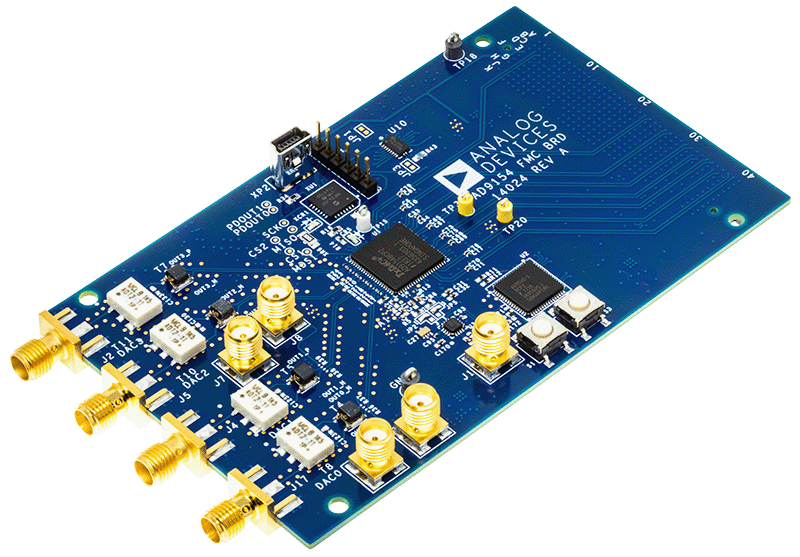

EVAL-AD9154

Evaluation Board for AD9154 Quad, 16-Bit, 2.4 GSPS, TxDAC+® Digital-to-Analog Product

zoom

EVAL-AD9154

Evaluation Board for AD9154 Quad, 16-Bit, 2.4 GSPS, TxDAC+® Digital-to-Analog Product

Evaluation Board for AD9154 Quad, 16-Bit, 2.4 GSPS, TxDAC+® Digital-to-Analog Product

Product Detail

The AD9154-EBZ, AD9154-M6720-EBZ and the AD9154-FMC-EBZ supports the AD9154 which is a quad, 16-bit, high dynamic range digital-to-analog converter(DAC) that provides a maximum sample rate of 2.4 GSPS, permitting multicarrier generation up to the Nyquist frequency in baseband mode. The AD9154 includes features optimized for direct conversion transmit applications including complex digital modulation, input signal power detection, and gain, phase, and offset compensation. The DAC outputs are optimized to interface seamlessly with the ADRF672x radio frequency quadrature modulators (AQMs) from Analog Devices, Inc. In Mix-Mode, the AD9154 DACs can reconstruct carriers in the 2nd and 3rd Nyquist Zones. A serial port interface (SPI) provides for programming/readback of internal parameters. Full-scale output current can be programmed over a range of 4 mA to 20 mA.

reference details image

ADS7-V2EBZ

FPGA Based Data Capture Kit

zoom

ADS7-V2EBZ

FPGA Based Data Capture Kit

FPGA Based Data Capture Kit

Features and Benefits

  • Based on Virtex-7 FPGA
  • One (1) FMC-HPC connector
  • Ten (10) 13.1 Gbps transceivers supported
  • Two (2) DDR3-1866 DIMMs
  • Simple USB port interface (2.0)



Product Detail

The ADS7-V2 Evaluation Board was developed to support the evaluation of Analog Devices high speed A/D converters, D/A converters and Transceivers with JESD204B bit rates up to 13.1 Gbps. The Quick Start Wiki site listed below provides a high level overview of the platform. In addition, each use case of the board has its own section (e.g. Using the ADS7-V2 for High Speed A/D Converter Evaluation). The ADS7-V2 is intended to be used only with specified Analog Devices Evaluation Boards. The ADS7-V2 is not intended to be used as a development platform, and no support is available for standalone operation. Please refer to Xilinx and its approved distributors for FPGA Development Kits
