AD5460

RECOMMENDED FOR NEW DESIGNS

Quad-Channel, Software Configurable Analog Output

The AD5460 is a quad-channel, voltage and current output digital- to-analog converter (DAC) that operates with a wide range of power supply and flexible configurations. AD5460 has adaptive power switching drivers.

Data Sheet (Rev. SpD) Product Selection Table

Part Models: 2
1ku List Price: Starting From $9.75

Viewing:

Overview

Quad-channel software configurable analog output
16-bit monotonic DAC, per channel
Current output range:
- 0mA to 25mA
- 0mA to 20mA
- 4mA to 20mA
Voltage output:
- 0V to 12V
- ±12V
Adaptive power switching drivers, integrated dual-rail adaptive power switching drivers, which reduce power dissipation by 40% in current output mode

On-chip diagnostics including open-circuit and short-circuit detection
Overvoltage up to +/−50V tolerant on screw terminal facing pins, powered or unpowered
Wide-power supply range
Internal 10ppm/°C reference
SPI compatible
−40°C to +105°C operating temperature range
Available in 48-lead 7mm × 7mm × 0.75mm (with exposed pad) LFCSP (CP-48-13)

The AD5460 is a quad-channel, voltage, and current output digital- to-analog converter (DAC) that operates with a wide range of power supply and flexible configurations. The AD5460 has adaptive power switching drivers. On-chip power dissipation is minimized by using an integrated adaptive power switching supply driver on each channel. In adaptive power switching drivers, select the required power supply voltage by choosing between the high voltage supply (AVDD_HI) and the low voltage supply (AVDD_LO), which depends on the output voltage level required. The CHART pin enables a HART signal to be coupled onto the current output.

The device uses a versatile 4-wire serial-peripheral interface (SPI) and is compatible with standard SPI, QSPI^™, MICROWIRE^™, DSP, and microcontroller interface standards. The interface also features SPI cyclic redundancy check (CRC) and a watchdog timer.

Applications

Factory automation
Actuator control
Group isolated analog outputs
PLC and DCS applications
HART network connectivity

Part Models: 2
1ku List Price: Starting From $9.75

Documentation

Data Sheet 1

AD5460: Quad-Channel, Software Configurable Analog Output Data Sheet (Rev.SpD) 04/23/2025

User Guide 1

UG-2227: Evaluating the AD5460 Quad-Channel, Software Configurable Output with compatibility to HART Modem (Rev.A) 04/23/2025

Request an NDA

Complete documentation is available upon completion of a Non-Disclosure Agreement (NDA).

Request an NDA

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD5460BCPZ	48-Lead LFCSP (7mm x 7mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD5460BCPZ-RL7	48-Lead LFCSP (7mm x 7mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Device Drivers 2

Can't find the software or driver you need?

Hardware Ecosystem

Parts	Product Life Cycle	Description
Switching Regulators & Controllers 2
MAX17691B	PRODUCTION	4.2V–60V No-Opto Isolated Flyback Converter with Integrated FET
MAX17671	PRODUCTION	Integrated 4V-60V, 150mA, High-Efficiency, Synchronous Step-Down DC-DC Converter with 50mA Linear Regulator
Voltage References 1
ADR4525	PRODUCTION	Ultra-Low-Noise, High-Accuracy 2.5V Voltage Reference

Parts	Product Life Cycle	Description
AD74413R	RECOMMENDED FOR NEW DESIGNS	Quad-Channel, Software Configurable Input and Output
AD5758	RECOMMENDED FOR NEW DESIGNS	Single-Channel, 16-Bit Current and Voltage Output DAC with Dynamic Power Control and HART Connectivity
AD74412R	RECOMMENDED FOR NEW DESIGNS	Quad-Channel, Software Configurable Input/Output

Tools & Simulations

IBIS Model 1

AD5460 IBIS Model

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

Evaluating the AD5460 Quad-Channel, Software Configurable Output with compatibility to HART Modem

Buy Now View Details

Features and Benefits

Fully featured evaluation board for AD5460
Custom power solution utilizing the MAX17691B and a multiwinding transformer
System isolation provided by MAX14483
On-board 2.5 V ADR4525 reference
SPI compatible Arduino and PMOD connector
PC-based Analysis | Control | Evaluation (ACE ) Software for control
No-OS MBED drivers providing example code in C

Product Details

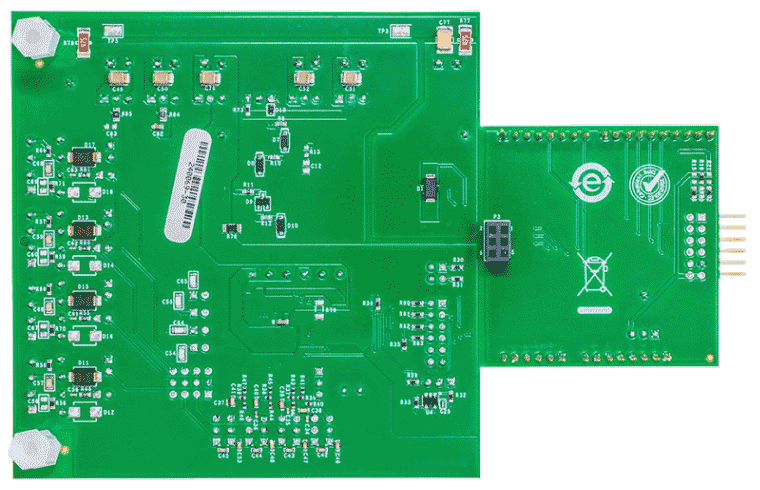

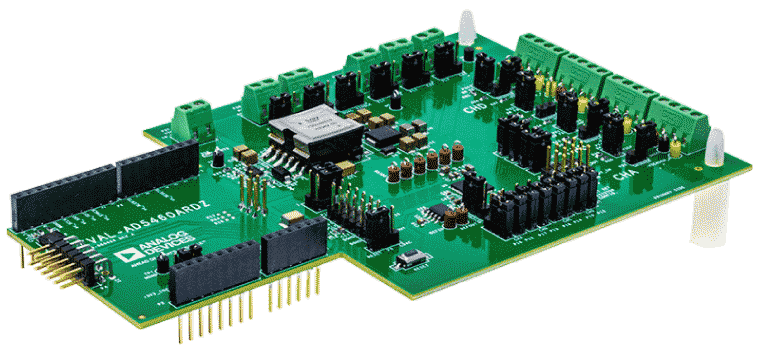

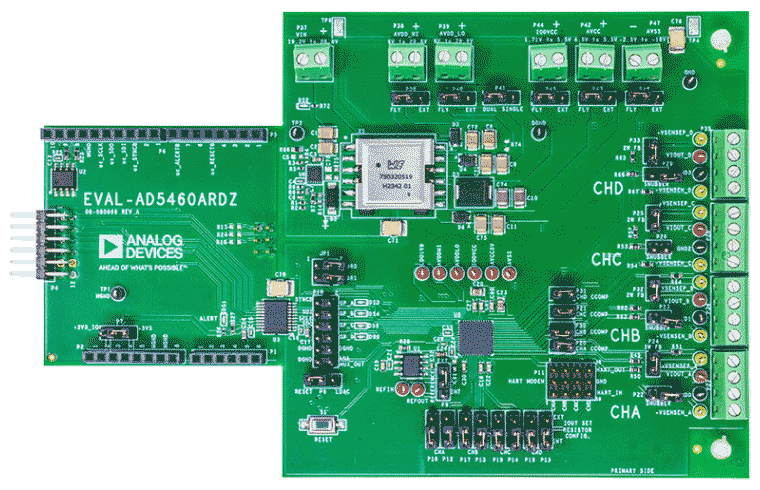

The EVAL-AD5460ARDZ is a fully-featured evaluation board that a user can use to evaluate the features of the AD5460 as a full system solution. Power is provided by the MAX17691B isolated flyback solution. Digital channels isolation utilizes the MAX14483 isolator.

The AD5460 is a quad-channel, software-configurable analog output device. The device has functionality for analog output and thermocouple with a compatible serial-peripheral interface (SPI).

A user can control the EVAL-AD5460ARDZ by a system demonstration platform (SDP) board. The EVAL-SDP-CK1Z (SDP-K1) board allows the EVAL-AD5460ARDZ to be controlled by the USB port of a PC using the AD5460 ACE software. The EVALAD5460ARDZ requires an operating supply of 24V. The PC provides power to the EVAL-SDP-CK1Z (SDP-K1) board.

Full specifications on the AD5460, MAX17691B, and MAX14483 are available in the corresponding data sheets available from Analog Devices, Inc., and must be consulted with this user guide when using the EVAL-AD5460ARDZ board.
