Signal Chain Power (SCP) Hardware Evaluation Platform

The Signal Chain Power (SCP) hardware platform enables signal chain designers to quickly develop, prototype, and evaluate complete power solutions for instrumentation, test & measurement, and industrial automation precision signal chains. The central design philosophy behind SCP is to box up Power by Linear™ design expertise and share it with signal conditioning systems engineering groups using an easy-to-configure plug-and-play system. Along with the SCP hardware platform and SCP Configurator software tool, SCP includes complete schematics, BOM, and PCB artwork for the system designer.

02-spot2_scp-boards-montage

The SCP hardware platform features:

  • Easily produce multirail configurations via plug-and-play terminal boards
  • Swap out boards in seconds for comparative testing and noise optimization
  • Compact form factor keeps system small
  • Configuration resistors are 0805 with oversized pads for easy rework
  • Supported topologies include:
    • Boost, Buck, Buck-Boost, SEPIC, and Inverting switching regulators
    • Positive and negative linear regulators
  • Silent Switcher® and ultra-high PSRR LDO products available for noise-critical applications

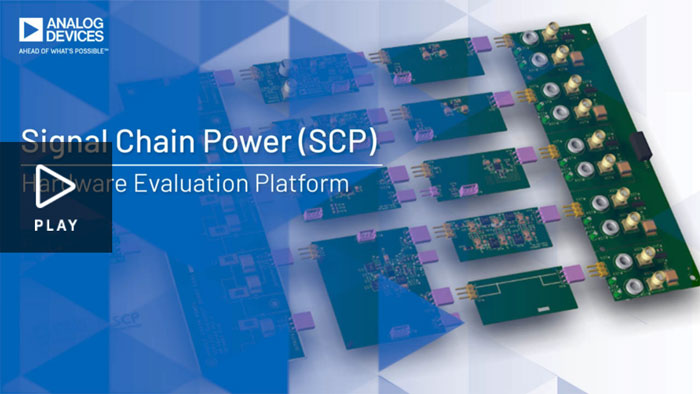

Signal Chain Power Platform Simplifies Evaluation

Developing custom power trees for instrumentation applications using modified standard demo boards can be time intensive. Signal Chain Power (SCP) is a specialty power supply evaluation system that snaps together for fast noise performance.

Signal Chain Power Platform Simplifies Evaluation

Switching Regulators

Step Down

X+

EVAL-CN0532

SCP-LT1956-BEVALZ


  • LT1956 in Buck configuration
  • VIN: 7.5 V to 25 V
  • VOUT: resistor programmable from 1.22 V to 24 V (5.0 V default)
  • 1.0 A maximum load current
  • Constant 500 kHz switching frequency

View SCP-LT1956-BEVALZ



SCP-LT3470A-BEVALZ

SCP-LT3470A-BEVALZ

  • LT3470A in buck configuration
  • VIN: 4 V to 36 V
  • VOUT: resistor programmable from 3 V to 16 V (optimized for 3.3 V output at up to 250 mA load).
  • Integrated boost and catch diodes
  • Low output ripple: <10mV

View SCP-LT3470A-BEVALZ



SCP-LT8609S-BEVALZ

SCP-LT8609S-BEVALZ

  • LT8609S in buck configuration
  • VIN: 5.5 V to 42 V
  • VOUT: resistor programmable from 1.2 V to 39.5 V (5 V default)
  • 2A maximum continuous output
  • Feedback-compatible with VIOC-control linear regulators

View SCP-LT8609S-BEVALZ



SCP-LT8618-BEVALZ

SCP-LT8618-BEVALZ

  • LT8618 in buck configuration
  • VIN: 5.5 V to 60 V
  • VOUT: resistor programmable from 0.8 V to 48 V (5 V default voltage output at 100 mA)
  • Feedback-compatible with VIOC-control linear regulators
  • Default switching frequency: 2.0 MHz
  • Adjustable switching frequency: 200 kHz to 2.2 MHz

View SCP-LT8618-BEVALZ

Step Up

X+

SCP-LT3461-EVALZ

SCP-LT3461-EVALZ


  • VIN: 3 V to 6 V
  • VOUT: resistor programmable from 5 V to 38 V (12 V default).
  • Maximum output current is 70 mA at 5.0 V input, 40 mA at 3.3 V input
  • Feedback-compatible with VIOC-control linear regulators

View SCP-LT3461-EVALZ



SCP-LT8330-EVALZ

SCP-LT8330-EVALZ


  • VIN: 10 V to 36 V
  • VOUT: resistor programmable from 5 V to 59 V (48 V default)
  • Maximum output current is 135 mA at 12 V input
  • Feedback-compatible with VIOC-control linear regulators

View SCP-LT8330-EVALZ



SCP-LT8362-B-EVALZ

SCP-LT8362-B-EVALZ


  • LT8362 in boost configuration
  • VIN: 10 V to 36 V
  • VOUT: resistor programmable from 5 V to 59 V (48 V default).
  • Maximum output current is 135 mA at 12 V input
  • Feedback-compatible with VIOC-control linear regulators

View SCP-LT8362-B-EVALZ



SCP-LT8410-EVALZ

SCP-LT8410-EVALZ


  • VIN: 3 V to 10 V
  • VOUT: resistor programmable from 5 V to 40 V (16 V default)
  • Maximum output current is 1.6 mA at 16 V input

View SCP-LT8410-EVALZ

Step Up or Down

X+

SCP-LT8362-S-EVALZ

SCP-LT8362-S-EVALZ


  • LT8362 in SEPIC configuration
  • VIN: 2.8 V to 60 V
  • VOUT: resistor programmable from 5 V to 48 V (12 V default)
  • Maximum output current is 2 A
  • Operates with a switching frequency of 2 MHz
  • Feedback-compatible with VIOC-control linear regulators

View SCP-LT8362-S-EVALZ



SCP-LTC3114-1-EVALZ

SCP-LTC3114-1-EVALZ


  • Synchronous monolithic buck-boost DC/DC converter
  • VIN: 2.2 V to 40 V
  • VOUT: resistor programmable from 3 V to 40 V (5 V default)
  • 1A output current in buck mode
  • Feedback-compatible with VIOC-control linear regulators

View SCP-LTC3114-1-EVALZ

Invert

X+

SCP-LT1956-IEVALZ

SCP-LT1956-IEVALZ


  • LT1956 configured as an inverting buck
  • VIN: 5.5 V to 48 V
  • VOUT: resistor programmable from –1.22 V to –24 V (5 V default)
  • 1.5 A peak switch current
  • C Feedback-compatible with VIOC-control linear regulators

View SCP-LT1956-IEVALZ



SCP-LT3470A-IEVALZ

SCP-LT3470A-IEVALZ


  • LT3470A configured as an inverting buck
  • VIN: 4 V to 36 V
  • VOUT: resistor programmable from –3 V to –16 V (–3.3 V default)
  • Maximum output current is 250 mA
  • Feedback-compatible with VIOC-control linear regulators

View SCP-LT3470A-IEVALZ



SCP-LT3483-EVALZ

SCP-LT3483-EVALZ


  • Inverting converter
  • VIN: 2.7 V to 12 V
  • VOUT: resistor programmable from –1 V to –39 V (–15 V default voltage output at 8 mA to 40 mA)
  • Feedback-compatible with VIOC-control linear regulators

View SCP-LT3483-EVALZ



SCP-LT8362-I-EVALZ

SCP-LT8362-I-EVALZ


  • LT8362 in a Cuk configuration
  • VIN: 4.5 V to 42 V.
  • VOUT: resistor programmable from –5 V to –40 V (–15 V default voltage output up to 1 A)
  • Feedback-compatible with VIOC-control linear regulators

View SCP-LT8362-I-EVALZ



SCP-LT8609S-IEVALZ

SCP-LT8609S-IEVALZ


  • LT8609S in an inverting configuration
  • VIN: –0.8 V to 24 V.
  • VOUT: resistor programmable from 1.2 V to 39.5 V (–5 V default)
  • Maximum output current is 2 A
  • Feedback-compatible with VIOC-control linear regulators

View SCP-LT8609S-IEVALZ



SCP-LT8618-IEVALZ

SCP-LT8618-IEVALZ


  • LT8618 configured as an inverting buck
  • VIN: 5.5 V to 60 V
  • VOUT: resistor programmable from –0.8 V to –48 V (–5 V default)
  • Maximum output current is 100 mA
  • Feedback-compatible with VIOC-control linear regulators

View SCP-LT8618-IEVALZ

Dual Supply (Step up and Step down)

X+

SCP-ADP5070-EVALZ

SCP-ADP5070-EVALZ


  • VIN: 2.85 V to 15 V
  • VOUT: resistor programmable from ±5 V to ±39 V(15 V/1 A default output for positive rail; –15 V/300 mA default output for negative rail)
  • Feedback-compatible with VIOC-control linear regulators

View SCP-ADP5070-EVALZ



SCP-LT3463-EVAL

SCP-LT3463-EVAL


  • VIN: 2.4 V to 15 V
  • VOUT: resistor programmable from ±5 V to ±40 V (20 V default output for positive rail; –15 V default output for negative rail)
  • Feedback-compatible with VIOC-control linear regulators

View SCP-LT3463-EVAL



SCP-LT3471-EVALZ

SCP-LT3471-EVALZ


  • VIN: 4.5 V to 10 V
  • VOUT: resistor programmable from ±5 V to ±40 V (12 V at 300 mA default output for positive rail; –12 V at 200 mA default output for negative rail)
  • Feedback-compatible with VIOC-control linear regulators

View SCP-LT3471-EVALZ



SCP-LT3472-EVALZ

SCP-LT3472-EVALZ


  • VIN: 4.5 V to 10 V
  • VOUT: resistor programmable from ±5 V to ±40 V (12 V at 300 mA default output for positive rail; –12 V at 200 mA default output for negative rail)
  • Feedback-compatible with VIOC-control linear regulators

View SCP-LT3472-EVALZ

Linear Regulators

Positive

X+

SCP-ADP150-EVALZ

SCP-ADP150-EVALZ


  • VIN: 3.5 V to 5.5 V
  • VOUT: 3.3 V fixed voltage version of ADP150
  • Low dropout voltage: 105 mV
  • Maximum output current is 150 mA
  • Ultralow noise: 9 μV rms

View SCP-ADP150-EVALZ



SCP-ADP7142-EVALZ

SCP-ADP7142-EVALZ


  • VIN: 2.7 V to 40 V
  • VOUT: resistor programmable from 1.2 V to 39.5 V (3.3 V default
  • Low dropout voltage: 200mV
  • Maximum output current is 200 mA
  • Low noise: 11 μV rms

View SCP-ADP7142-EVALZ



SCP-LT1962-EVALZ

SCP-LT1962-EVALZ


  • VIN: 1.8 V to 20 V
  • VOUT: resistor programmable from 1.22 V to 19.5 V (3.3 V default)
  • Low dropout voltage: 270 mV
  • Maximum output current is 300 mA
  • Low noise: 20 μV rms

View SCP-LT1962-EVALZ



SCP-LT3045-1-EVALZ

SCP-LT3045-1-EVALZ


  • VIN: 1.8 V to 20 V
  • VOUT: resistor programmable from 0.8 V to 19.5 V (3.3 V default)
  • Low dropout voltage: 260 mV
  • Maximum output current is 500 mA
  • Ultralow noise: 0.8 μV rms
  • VIOC control of upstream switching regulator

View SCP-LT3045-1-EVALZ

Negative

X+

SCP-ADP7182-EVALZ

SCP-ADP7182-EVALZ


  • VIN: –2.7 V to –28 V
  • VOUT: resistor programmable from –1.2 V to –27.5 V (–3.3 V default)
  • Low dropout voltage: –185 mV
  • Maximum output current is 200 mA
  • Low noise: 18 μV rms

View SCP-ADP7182-EVALZ



SCP-LT1964-EVALZ

SCP-LT1964-EVALZ


  • Up to –20 V maximum input voltage
  • VOUT: resistor programmable from –1.22 V to –19.5 V (–5 V default)
  • Low dropout voltage: –340 mV
  • Maximum output current is 200 mA
  • Low noise: 30 μV rms

View SCP-LT1964-EVALZ



SCP-LT3094-EVALZ

SCP-LT3094-EVALZ


  • VIN: –1.8 V to –20 V
  • VOUT: resistor programmable from 0 V to –19.5 V (–3.3 V default)
  • Low dropout voltage: –235 mV
  • Maximum output current is 500 mA
  • Ultralow noise: 0.8 μV rms

View SCP-LT3094-EVALZ

Filter Boards

SCP-FILTER-EVALZ

X+

SCP-FILTER-EVALZ

SCP-FILTER-EVALZ


  • Passive RCL filter networks
  • Accommodates an Nth-order filter network as well as specialty 3-terminal feedthrough filters

View SCP-FILTER-EVALZ

SCP-THRUBRD-EVALZ

X+

SCP-THRUBRD-EVALZ

SCP-THRUBRD-EVALZ


  • Acts as a spacer in systems where adjacent channels differ in the number of series connections

View SCP-THRUBRD-EVALZ

Interconnect Boards

SCP-1X2BKOUT-EVALZ

X+

SCP-1X2BKOUT-EVALZ

SCP-1X2BKOUT-EVALZ


  • Expands an existing rail into two segments in a Signal Chain Power hardware evaluation matrix
  • One input port and two output ports, along with passive filtering options

View SCP-1X2BKOUT-EVALZ

SCP-1X5BKOUT-EVALZ

X+

SCP-1X5BKOUT-EVALZ

SCP-1X5BKOUT-EVALZ


  • Expands an existing rail into five segments in a Signal Chain Power hardware evaluation matrix
  • One input port and five output ports, along with passive filtering options

View SCP-1X5BKOUT-EVALZ

SCP-5X1-EVALZ

X+

SCP-5X1-EVALZ

SCP-5X1-EVALZ


  • Integrates several voltage rails into a compact, single point terminal in a Signal Chain Power hardware evaluation matrix
  • Five input ports and one output port, along with passive filtering options

View SCP-5X1-EVALZ

SCP-INPUT-EVALZ

X+

SCP-INPUT-EVALZ

SCP-INPUT-EVALZ


  • Allows for external connections when building power systems
  • Accepts standard banana jacks and clip-lead type connectors to attach to power supplies and meters

View SCP-INPUT-EVALZ

SCP-OUTPUT-EVALZ

X+

SCP-OUTPUT-EVALZ

SCP-OUTPUT-EVALZ


  • Allows for external connections when building power systems
  • Accepts standard banana jacks and clip-lead type connectors to attach to DUTs, loads, and meters

View SCP-OUTPUT-EVALZ

SCP Support on EngineerZone

Visit EngineerZone® to engage with our SCP experts or find answers related to the operation, use, and functionality of the SCP hardware evaluation platform and its constituent hardware boards.
