概览
优势和特点
- Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
- Our reference designs are supported by an intuitive design tool set and IP
- Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
参考资料
-
DK-DEV-3C120N / DK-EMB-3C120N / DK-DSP-3C120N Dev Kit Schematic2014/8/4PDF1M
电路描述

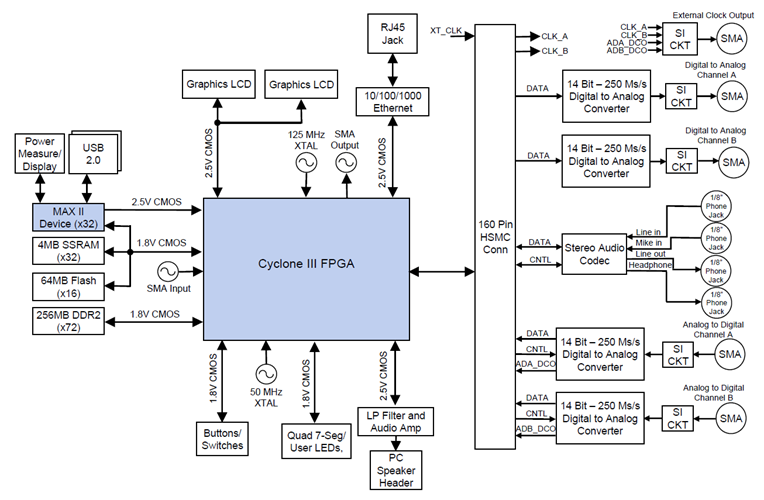

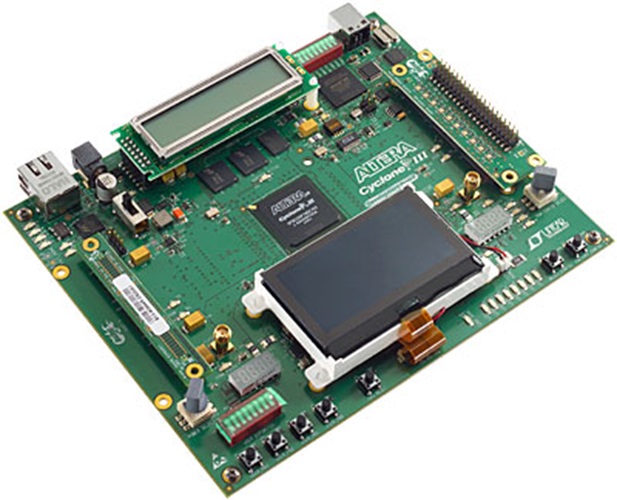

The DSP Development Kit, Cyclone III Edition delivers a complete DSP development environment for design engineers. The DSP Development Kit, Cyclone III Edition includes the Cyclone III development board, the Data Conversion HSMC, the DSP Builder development tool, Quartus II development software, MATLAB/Simulink evaluation software, evaluation IP cores, design examples, power supplies, cables, and documentation.
