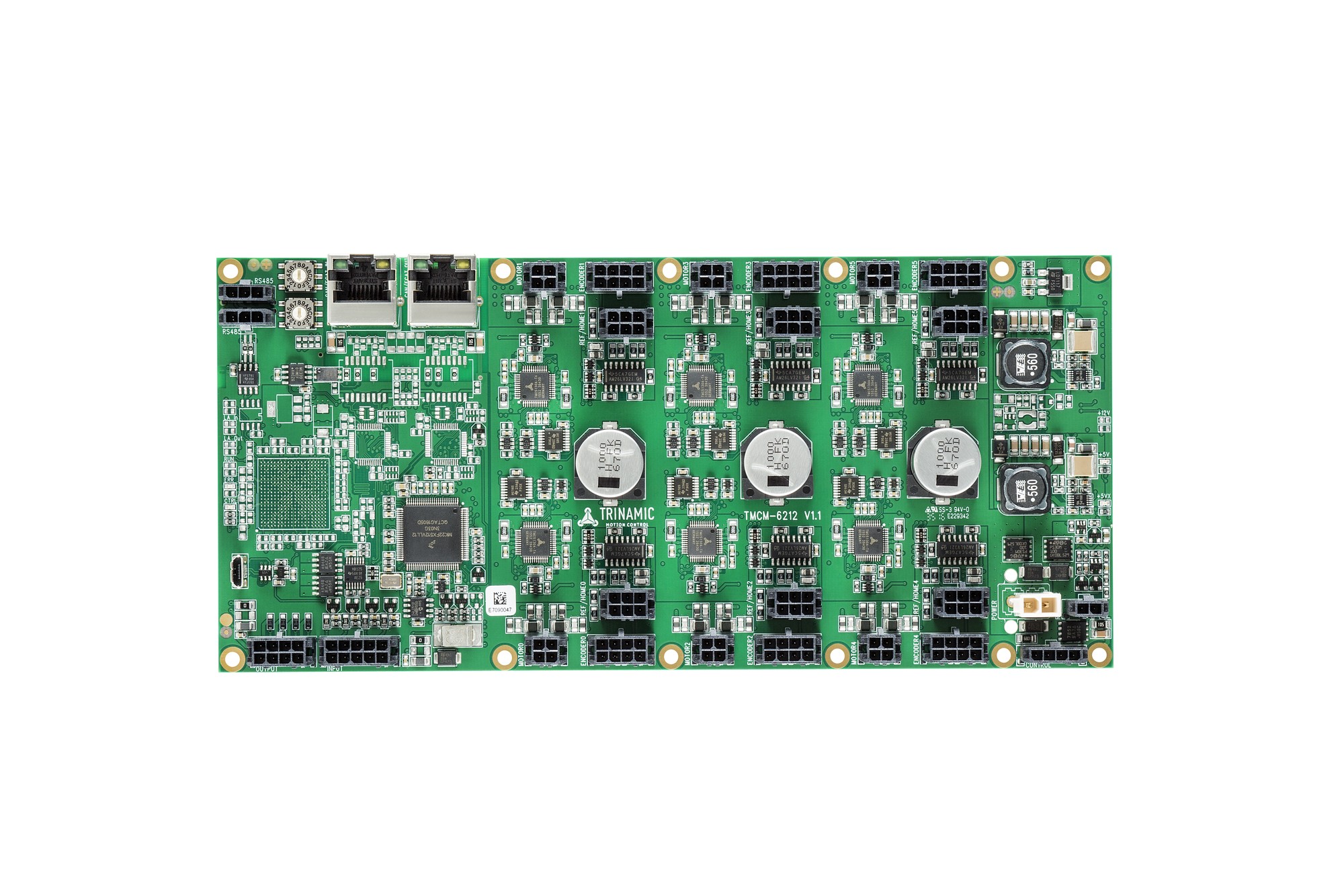

TMCM-6212

6-axis stepper motor controller/driver module 11 to 35V, 1.1A, 256 µSteps, SixPoint ramp controller, with USB, CAN and RS485 Interface, StallGuard, CoolStep and StealthChop

更多 showmore-icon

Info: : 量产 tooltip
Info: : 量产 tooltip
查看： 产品详情
arrow-icon

不是您想寻找的产品？

viewall 去产品选项表
特性
Motion controller
  • Motion profile calculation in real-time (supporting linear and sixPoint™ ramps)
  • On the fly alteration of motor parameters (e.g. position, velocity, acceleration)
  • Dedicated HOME + STOP switch inputs (internal pull-ups)
  • High performance microcontroller for overall system control and communication protocol handling
Bipolar stepper motor driver
  • Up to 256 microsteps per full step
  • High-efficient operation, low power dissipation
  • Dynamic current control
  • Integrated protection
  • StealthChop™ for quiet operation and smooth motion
  • DcStep™ feature for load dependent speed control
  • StallGuard2™ feature for stall detection
  • CoolStep™ feature for reduced power consumption and heat dissipation
Software
  • TMCL™ remote (direct mode) and standalone operation with memory for up to 1024 TMCL commands
  • CANopen™ firmware available
Interfaces
  • CAN + RS485
  • USB full speed (12Mbit/s) device interface (Micro-USB)
  • Differential encoder input per motor axis (6x)
  • HOME, STOP_L, STOP_R switch inputs with internal pull-ups per motor axis (6x)
  • 4 general purpose analog inputs (0 to 10V) or digital inputs (accept +24V signals)
  • 4 general purpose digital outputs (open-drain)
Electrical data
  • Supply voltage: nom. +12V and +24V with +11V to +35V supply voltage operating range
  • Motor current: up to 1.1A RMS (programmable)
Mechanical data
  • Board size: 215mm x 100mm, overall height 21mm max. (incl. pcb but, without mating connectors and cables)
  • 12x M3 mounting holes (optional)
更多细节
show more Icon

The TMCM-6212 is a sextuple axis stepper motor controller/driver module for sensorless load dependent current control. The device is powered by ADI Trinamic StallGuard2™, CoolStep™, SpreadCycle™, StealthChop™ and DcStep™ technology and has a SixPoint™ ramp generator. The TMCM-6212 is capable of driving up to 1.5A peak of current from each output (with proper heatsinking). It is designed for an operating voltage of 11 to 35V. The device provides a RS485, CAN, USB and 6 encoder interfaces. An integrated protocol processor supplies a high level TMCL/ CANopen communication.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.

More about the TMCL-IDE

Show More Arrow image

Technical Details

  TMCM-6212-CANopen TMCM-6212-TMCL
Status Active Active
Axes 6 6
Motor Supply 11 to 35V 11 to 35V
Phase Current, RMS 1.1A 1.1A
Microsteps 1 to 256 1 to 256
a/b/n incremental ✓ ✓
CAN ✓ ✓
RS485 ✓ ✓
USB ✓ ✓
GPIO ✓ ✓
CANopen ✓
TMCL™   ✓
SixPoint™ ✓ ✓
DcStep™ ✓ ✓
MicroPlyer™ ✓ ✓
CoolStep™ ✓ ✓
SpreadCycle™ ✓ ✓
StallGuard2™ ✓ ✓
StealthChop™ ✓ ✓
Width 215mm 215mm
Length 100mm 100mm
Height 21mm 21mm
