产品详情
特性

Electrical data

  • Supply voltage: +18V to +78.5V DC
  • Motor current: up-to 7A peak / 5A RMS (programmable)

Supported motors

  • Two phase bipolar motors with 1A to 5A RMS coil current
  • Incremental encoder (a/b + optional index channel, differential, open-collector or single ended signals)

Interfaces

  • Optically isolated inputs for home and stop switches
  • general purpose analogue and digital inputs and outputs
  • RS422, RS232, CAN and USB serial interfaces available
  • RS422, RS485, RS232, CAN or USB serial interfaces available on standard add-on interface board
  • TMCM-I

Features

  • 1024 times micro stepping
  • Automatic ramp generation (trapezoid and S-shaped) in real-time in hardware
  • On the fly alteration of motion parameters (e.g., position, velocity, acceleration)
  • Uses TMC457 high performance controller
  • Chopsync™ for high speed
  • High-efficient operation, low power dissipation
  • Integrated protection: overtemperature/undervoltage

Software

  • Stand-alone operation using TMCL or remote controlled operation
  • Memory for 2048 TMCL commands
  • PC-based application development software TMCL-IDE included
  • CANopenTM ready
更多细节
show more Icon

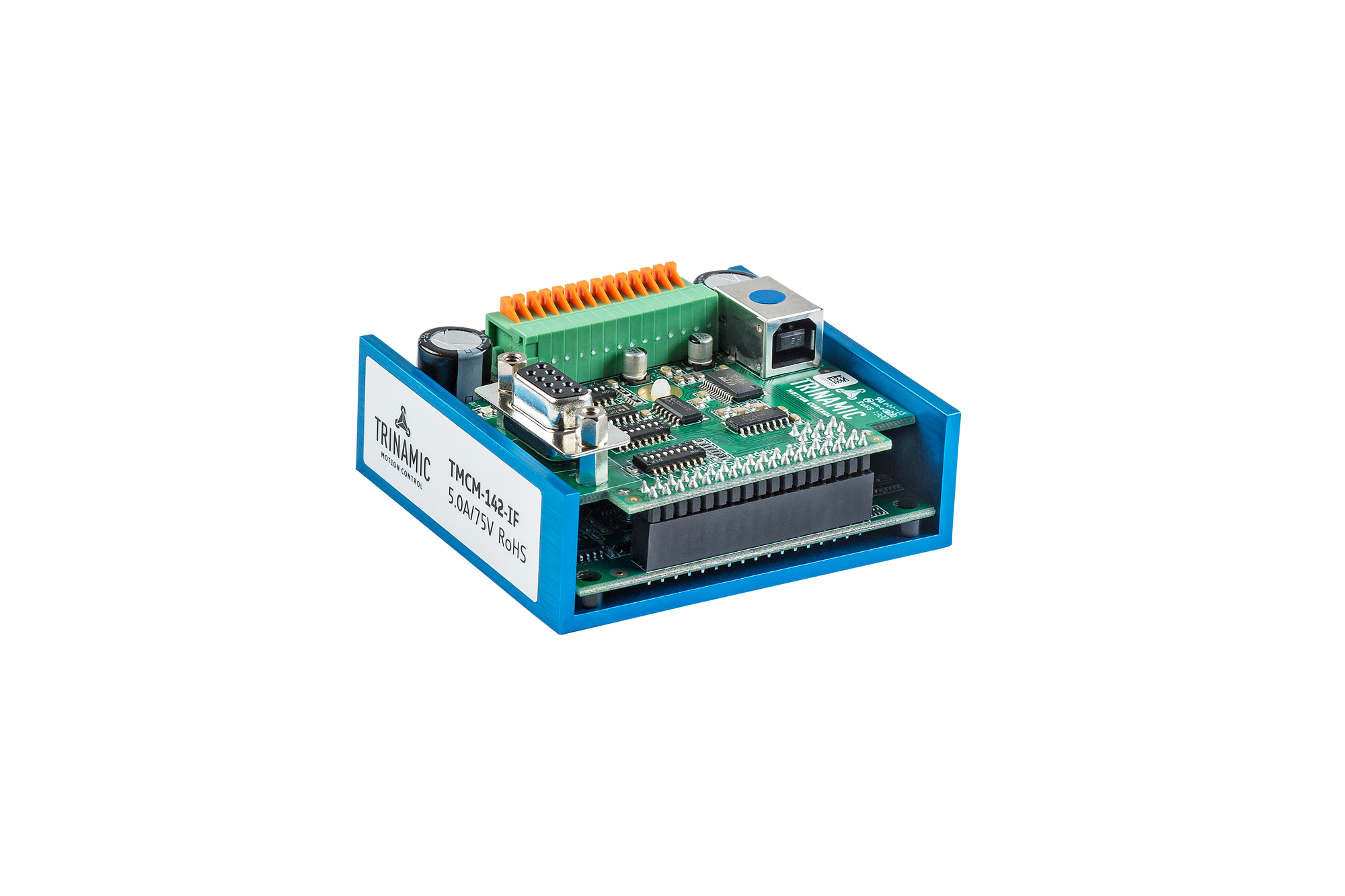

The TMCM-142 is a high-performance single axis 2-phase stepper motor controller and driver with encoder feedback. It offers an aluminum U-shape profile for quick and robust mounting. The integrated TMC457 motion controller provides superior performance with regards to microstepping (up-to 1024), maximum velocity (integrated ChopSync™ avoiding resonances), S-shaped or linear ramp calculation in realtime and encoder feedback support (closing the loop in hardware with EasyPID™ regulator).

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.

More about the TMCL-IDE

Applications

  • Compact high-resolution/high-performance stepper motor controller/driver solutions
  • Smooth movements with high microstep resolution and S-shaped ramps
  • High precision and high repeatability with encoder feedback and PID position regulator
