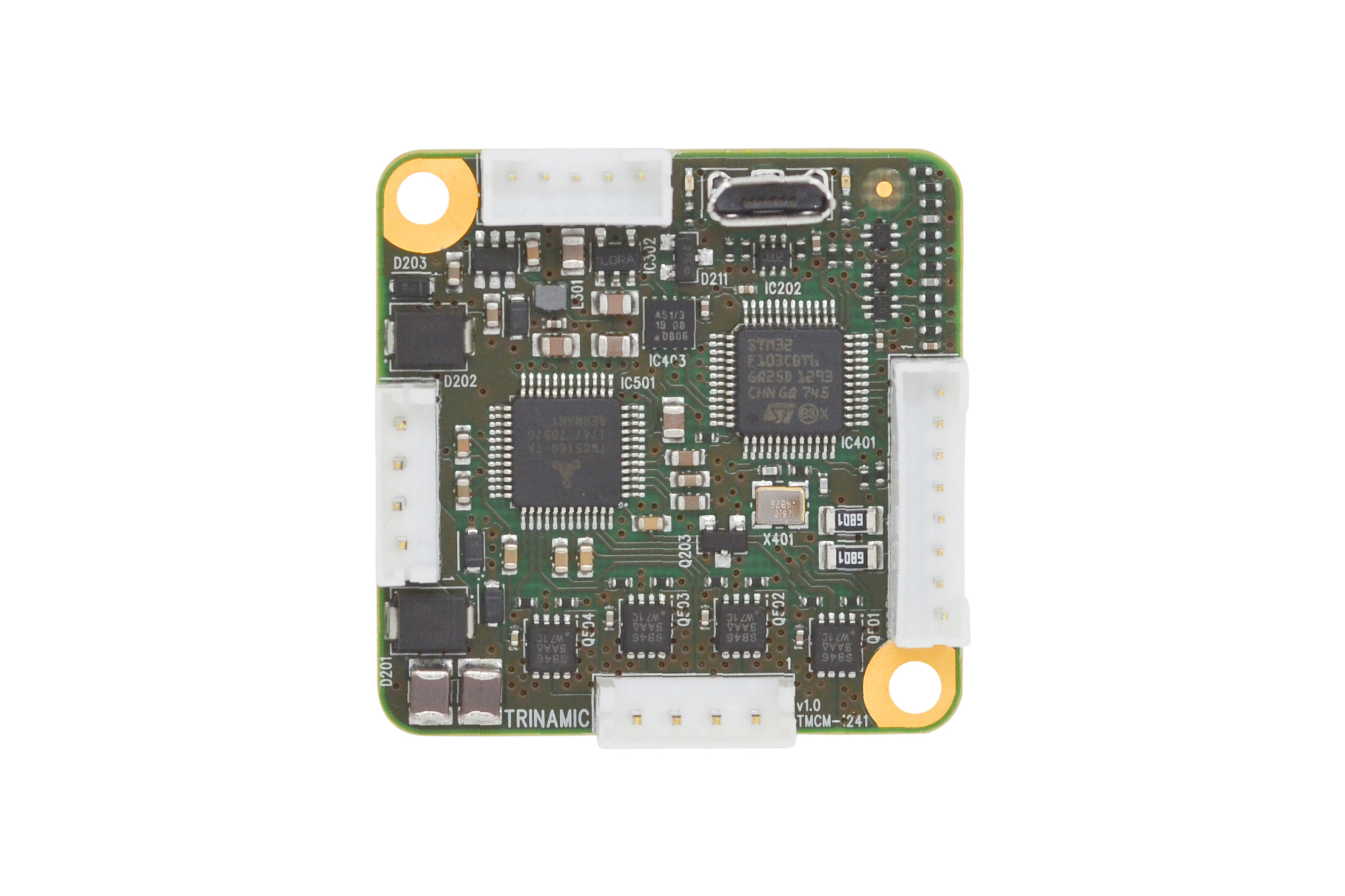

TMCM-1241
Motor mountable stepper motor controller/driver module 10 to 30V, 3A, 256 µSteps, SixPoint ramp controller with USB, S/D, CAN and RS485 Interface, StallGuard, CoolStep, StealthChop
更多
不是您想寻找的产品?
提问
在下面提交您的问题,我们将从 ADI 的知识库中给出最佳答案:
您可以在其他地方找到帮助
特性
- Single axis controller/driver for 2-phase bipolar stepper motor
- Linear and sixPoint™ ramps
- +10 to 30V DC supply voltage
- Up to 3A RMS motor current
- RS485, CAN & USB interface
- Integrated sensOstep™ encoder and support for external encoder
- S/D interface
- Multi-purpose inputs and outputs
The TMCM-1241 is a single axis motor controller/driver board for 2-phase bipolar stepper motors with up-to 3A RMS (4.3A peak) motor coil current. It supports linear ramps and unique SixPoint™ ramps. It offers on-board SensOstep™ encoder and in addition, support for connection of external (incremental A/B) encoder. For driver-only applications, the TMCM-1241 offers optically isolated Step/Direction inputs.
All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.
APPLICATIONS
- Laboratory Automation
- Manufacturing
- Semiconductor Handling
- Robotics
- Factory Automation
- Test & Measurement
- Life Science
- Biotechnology
- Liquid Handling
Technical Details
TMCM-1241-TMCL | TMCM-1241-CANopen | |
Status | Active | Active |
Axes | 1 | 1 |
Motor Supply | 10 to 30V | 10 to 30V |
Phase Current, RMS | 3.0A | 3.0A |
Microsteps | 1 to 256 | 1 to 256 |
a/b/n incremental | ✓ | ✓ |
CAN | ✓ | ✓ |
RS485 | ✓ | ✓ |
Step/Dir | ✓ | ✓ |
USB | ✓ | ✓ |
GPIO | ✓ | ✓ |
SensOstep™ | ✓ | ✓ |
TMCL™ | ✓ | |
CANopen | ✓ | |
SixPoint™ | ✓ | ✓ |
CoolStep™ | ✓ | ✓ |
SpreadCycle™ | ✓ | ✓ |
StallGuard2™ | ✓ | ✓ |
StealthChop2™ | ✓ | ✓ |
Width | 37mm | 37mm |
Length | 37mm | 37mm |
Height | 11mm | 11mm |
