TMCM-0930
Plug-In controller module to control up to four ADI Trinamic motor driver modules using TMCL commands.
更多
不是您想寻找的产品？
提问
在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:
搜索
您可以在其他地方找到帮助
特性
- Controller module for up to four ADI Trinamic slot type motor driver modules
- Supply voltage +5V DC
- TMCL™ firmware
- Host interfaces: RS485, CAN, USB
- Additional GPIOs and control features depending on connected driver module
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=zh&h=24&w=24&hash=7CDDC996281D9E966D391D97E93C6727){kind=icon}

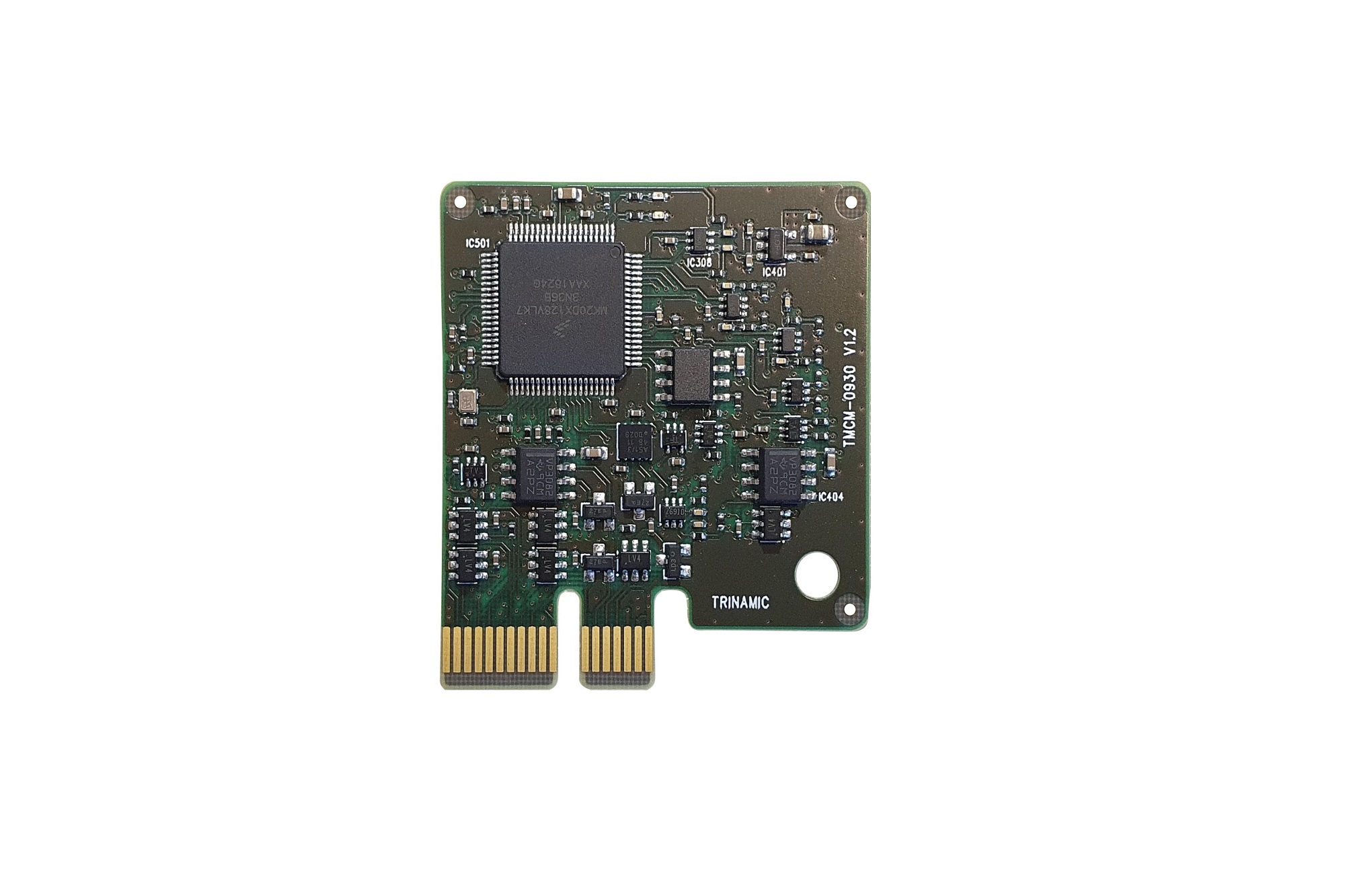

The TMCM-0930-TMCL is a slot type microcontroller module that can control up to four ADI Trinamic slot type motor driver modules using TMCL commands. The stepper and/or BLDC motor modules are controlled by TMCM-0930-TMCL on a special slot type baseboard while using RS485 bus and some control signals throughout the whole system. TMCM-0930-TMCL is equipped with additional RS485 interface, a CAN bus interface, and a USB interface for external communication. The TMCM-0930-TMCL can also store and execute TMCL programs.
APPLICATIONS
- Laboratory Automation
- Manufacturing
- Semiconductor Handling
- Robotics
- Factory Automation
- Test & Measurement
- Life Science
- Biotechnology
- Liquid Handling
