TMC8461

最后购买期限

OBSOLETE PRODUCT

数据手册 (Rev. 1.5) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • Standard compliant EtherCAT® Slave
  • 2 MII Interfaces for external Ethernet PHY
  • SPI Process Data Interface (PDI)
  • IO Block with 24 Multi-Function I/Os
  • Internal 3.3V plus free 5V-24V switch regulator
  • 8 High Voltage I/Os (up to 35V, 100mA)
  • Multifunction block comprises Watchdog, 4 PWM outputs and Step/Dir generator
  • Direct EtherCAT access to external ADCs, stepper motor controllers, etc.
  • EtherCAT-P compatible voltage range

The TMC8461 is a complete EtherCAT® Slave Controller optimized for real time. It comprises all blocks required for an EtherCAT slave including two switch regulator power supplies and 35V capable high voltage I/Os for industrial environments. Timer, watchdog, PWM and SPI/ IIC master units allow for enhanced capabilities either in device emulation mode or in combination with an external CPU.

The TMC8461 can also be used in combination with EtherCAT P, allowing for both data and power to be supplied using one single cable. Click here to learn more.

APPLICATIONS

  • Factory Automation
  • Process Automation
  • Communication Modules
  • Industrial IoT
  • Industry 4.0
  • Sensors & Encoders
  • Robotics
  • Industrial Motion Control
  • Building Automation
TMC8461
OBSOLETE PRODUCT

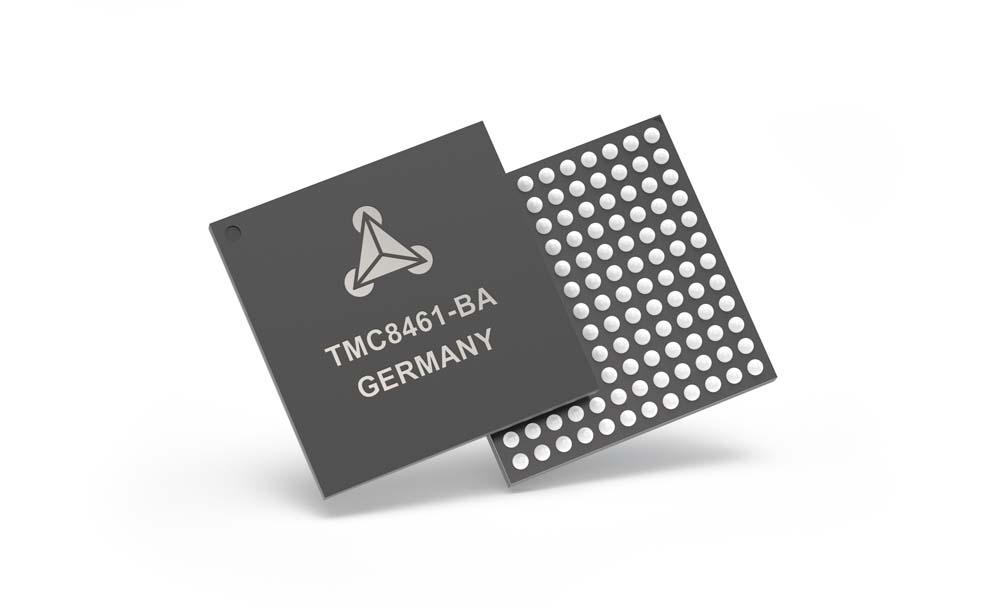

tmc8461-ba tmc8461_block_diagramm
