TMC6130

最后购买期限

Evaluation board for TMC6130

产品模型: 1

Viewing:

概述

Level Shifting: µC PWM outputs / 6 or 3 ext. N-FET half-bridges
100% PWM Operation
Low Offset, Low Drift, Fast Current Sense Amplifier with configurable input range
Operating Range VM = [4.5, 28]V, 32V abs. max
Fault Interrupt & Feedback to microcontroller
Fastest settling time and minimum noise
Diagnostics: overcurrent, overtemperature, undervoltage

Configurable communication interface for diagnostics feedback
Drain-Source Voltage / Gate-Source Voltage external FET monitoring for short circuit protection
Sleep Mode with low quiescent current (<30µA)
Compatible with 3V and 5V microcontrollers
Charge-Pump provides NFET reverse polarity drive
Small Size: QFN 5x5mm package, 32 pin

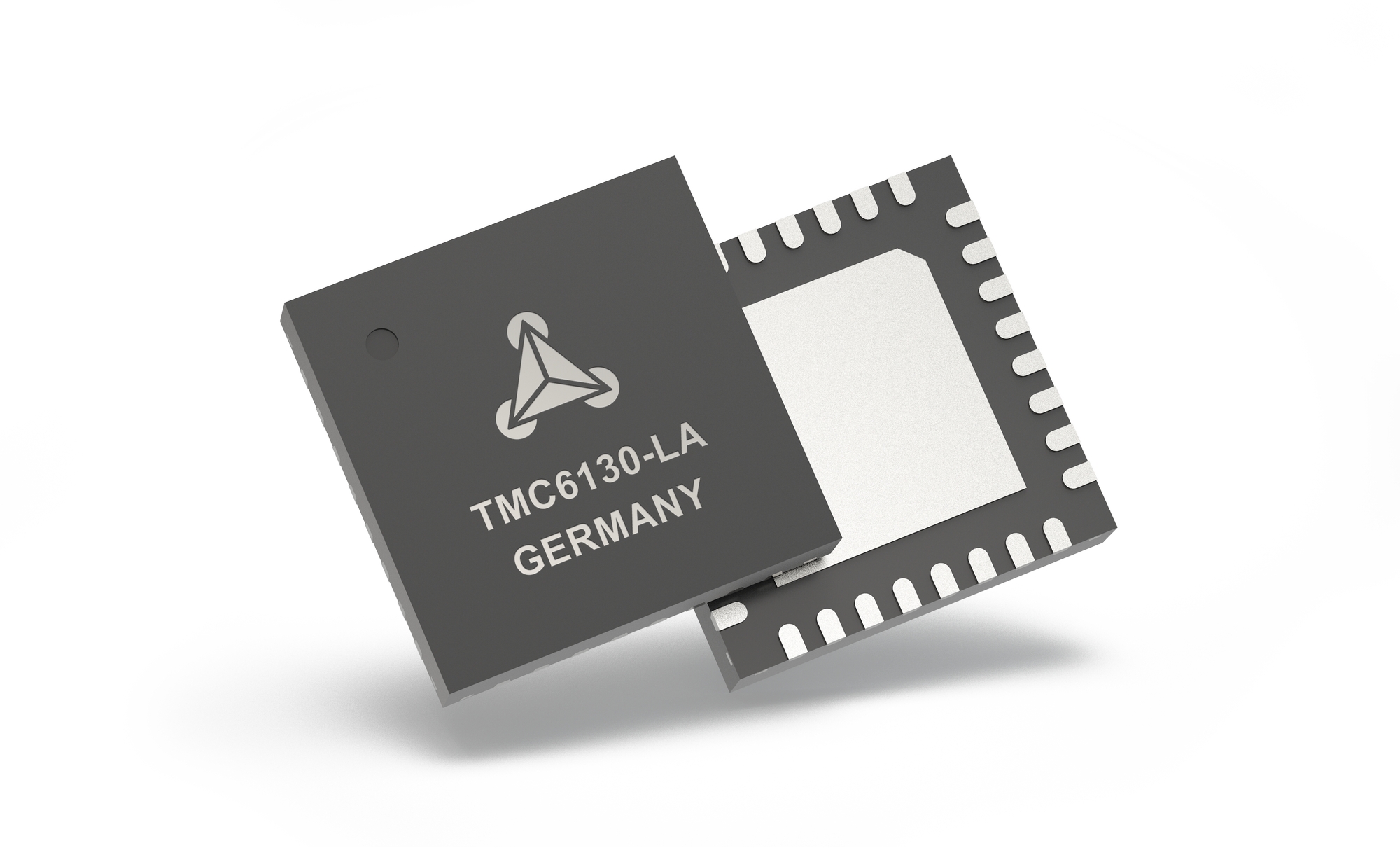

The TMC6130-LA is a 3-phase BLDC gate driver for Robotics, Drones and other dynamic applications. The device is capable driving up to a gate current of 1A. The TMC6130-LA has comprehensive diagnostic functions including GND protection and break before make logic technology. The device is designed for a supply voltage of 4.5 to 8V and provides a PWM and SPI interface.
