TMC429

推荐用于新设计

Triple Stepper Motor Ramp Generator Controller with Serial Peripheral Interfaces and Step/Direction

产品模型: 5

Viewing:

概述

Allows step / direction signal extraction from TMC429 output data stream
Programmable pulse shaping for step / direction interface
24 bit integrated position resolution
Programmable prescaler for Incremental Encoder Interface
4-times evaluation of encoder signals

Fast 32 bit SPITM interface
Can share SPITM interface with TMC429 and supplies separate interrupt output
Integrates Reference Switch Multiplexers
Package: TQ100

The TMC429 is a triple-axis dedicated motion controller for laboratory automation, 3D-printing, scanners and other automated equipment applications. It is usable as a trapezoidal ramp generator. The device is designed for an operating voltage of 3.3V to 5V. The TMC429 provides a SPI controller and driver interface.

APPLICATIONS

CCTV, Security
Antenna Positioning
Heliostat Controller
Battery powered applications
Office Automation
ATM, Cash recycler, POS
Lab Automation
Liquid Handling
Medical
Printer and Scanner
Pumps and Valves

产品模型: 5

参考资料

数据手册 1

TMC429 Data Sheet (Rev.2.06) 03/03/2022

应用笔记 7

AN-024: A Tool for Calculating the Motion Parameters Used with TMC428/TMC429 Based Modules. 08/02/2012

AN-012: Extending the Positioning Range of the TMC429 (or TMC428) to 32-bit or more 08/15/2023

AN018: TMC429 & TMC24x Getting Started Motion Control via SPI Including stallGuard™ of TMC246/249 02/10/2012

AN-029: Ramp Parameter Setup for TMC429 05/30/2013

AN-013: Motion Control Profile Parameterization 06/24/2014

AN-026: Programmable Adaptive Microstep Table 08/13/2023

AN-016: TMC429 & TMC26x Getting Started: Motion Control via Step/Direction 08/02/2012

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
TMC429-I	QSOP	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
TMC429-I-T	QSOP	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
TMC429-LI	LFCSP	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
TMC429-LI-T	LFCSP	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
TMC429-PI24	SOIC_W	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys

这是最新版本的数据手册

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

工具及仿真模型

设计工具 1

tmc429 microstep table 64 hex

评估套件

Evaluation Board for TMC429

立即购买更多内容

特性和优点

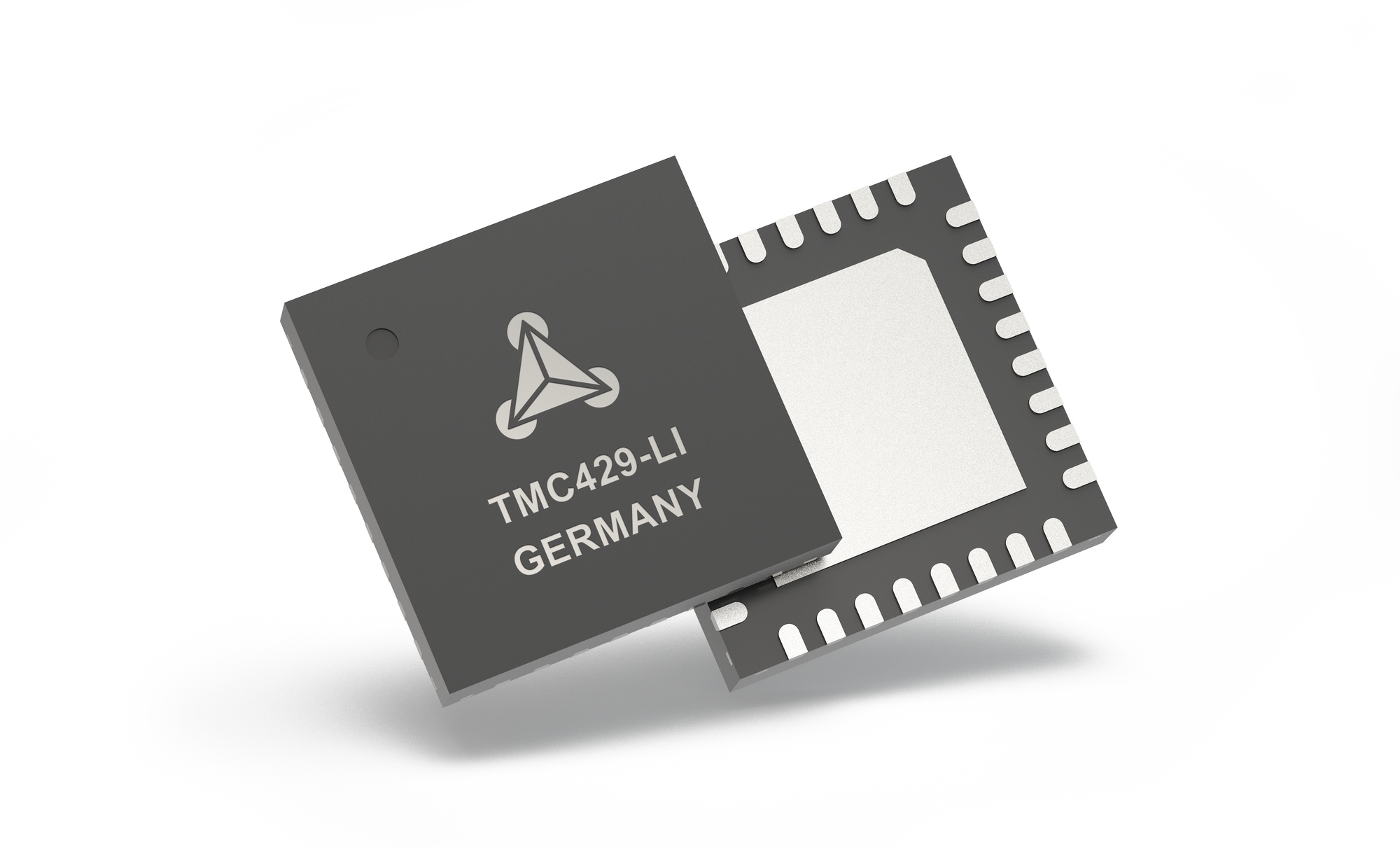

TMC429-LI triple-axis dedicated motion controller
Supply voltage 3.3V or 5V
Configuration and control via SPI
3x dedicated Step and Direction output
Up to 32MHz input frequecy
Up to 1MHz step output frequency
Board width 1.0", board height 1.0"
2x10 pin 0.1" header rows for pins/connectors

产品详情

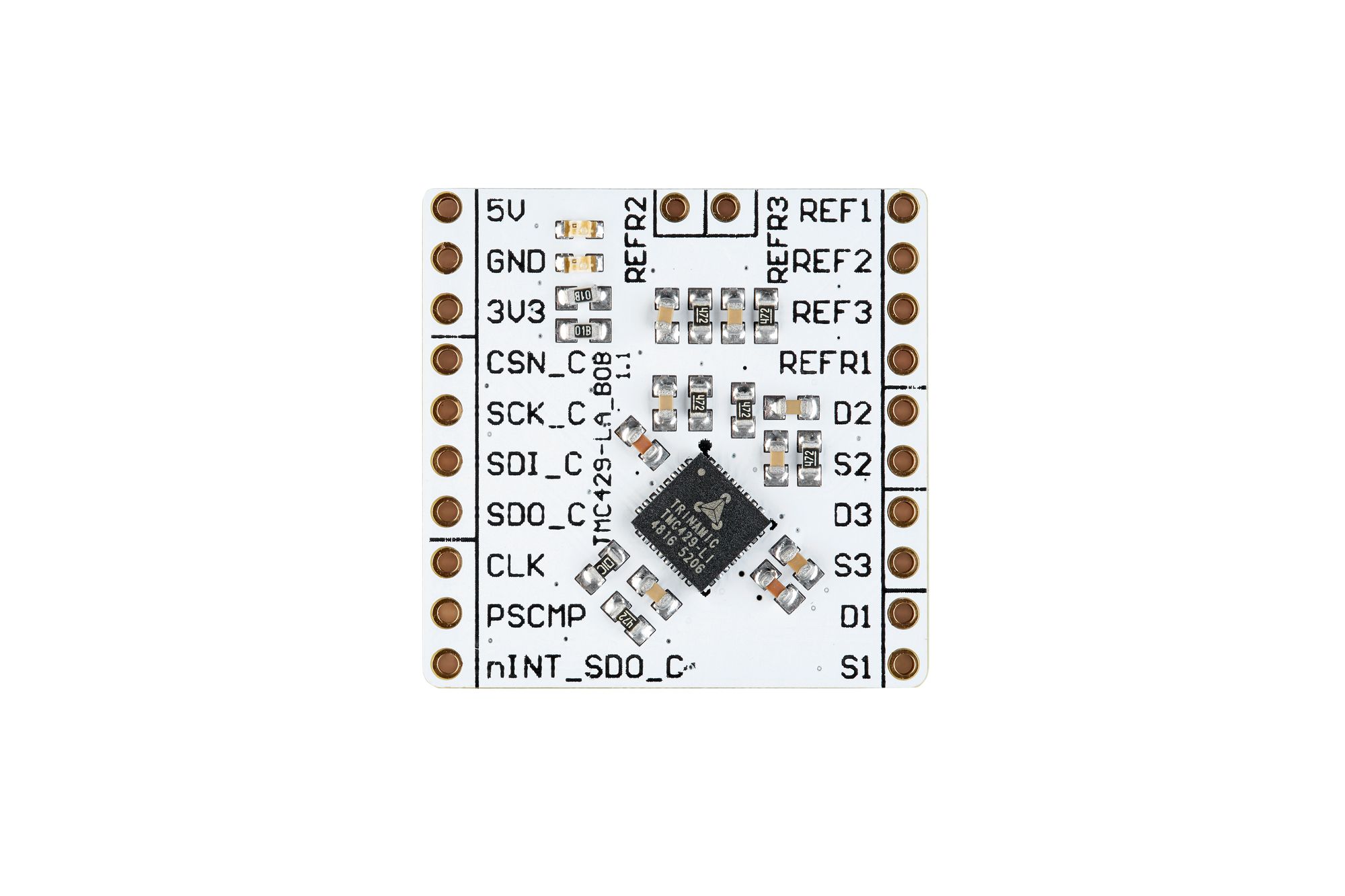

The TMC429 breakout board is a development board with the dedicated TMC429 chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.

资料

TMC429-BOB User Manual (Rev.1.00)
2021/2/1

Tmc429 Bob Cad Files - Design Files (Rev.1.1)
2019/6/4

Tmc429 Bob 3d Files Layout Data - Design Files (Rev.1.1)
2019/6/4

Tmc429 Bob Fabrication Data - Design Files (Rev.1.1)
2019/6/4

Bom Tmc429 La Bob - Design Files (Rev.1.1)
2019/6/4

	TMC429-I	TMC429-LI	TMC429-PI24
Status	Active	Active	Active
Axes	3	3	3
Microsteps	1 to 64	1 to 64	1 to 64
SPI	✓	✓	✓
Step/Dir		✓
Trapezoidal	✓	✓	✓
Microstep Table	✓	✓	✓
Package	SSOP16 (5x4)	QFN32 (5x5)	SOP24 (15.5x10.5)
