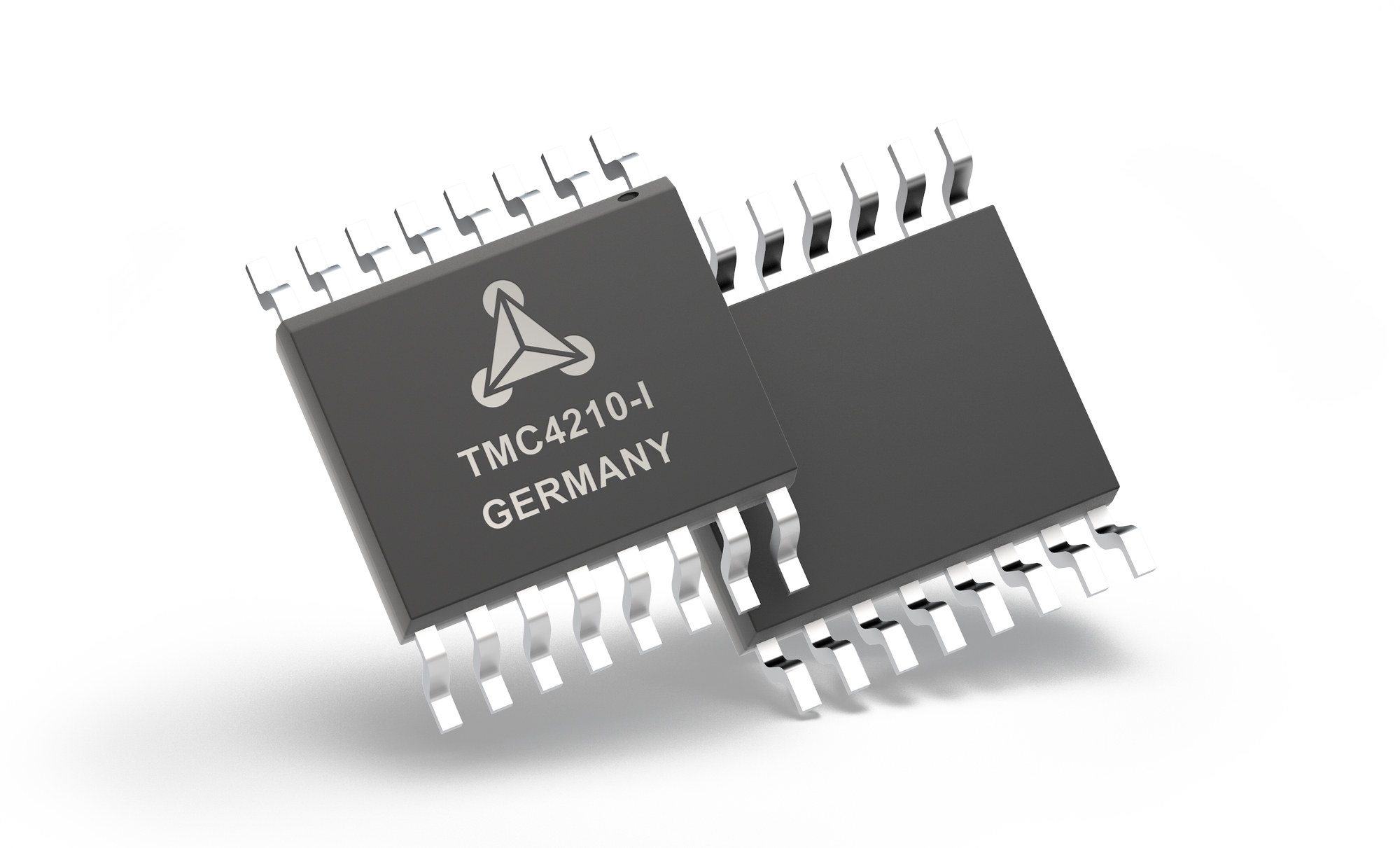

TMC4210
量产Stepper Motor Ramp Generator Controller with Serial Peripheral Interfaces and Step/Direction
- 产品模型
- 2
产品详情
- 1-Axis stepper motor controller
- 3.3V or 5 V operation with CMOS / TTL compatible IOs
- Serial 4-wire interface for µC with easy-to-use protocol
- Step/Direction interface to driver
- Clock frequency: up to 32 MHz (can use CPU clock)
- Internal position counters 24 bit wide
- Microstep frequency up to 1 MHze
- Read-out option for all motion parameters
- Ramp generator for autonomous positioning / speed control
- On-the-fly change of target motion parameters
- Low power operation: 1.25 mA at 4 MHz (typ.)
- Compact Size: ultra-small 16 pin SSOP package
- Directly controls TMC2208, TMC2209, TMC2226, TMC2590, TMC2660, TMC26x, TMC2100, TMC2300 & more Step/Dir drivers
The TMC4210-I is a single-axis dedicated motion controller for Laboratory Automation, 3D-Printing, Scanners and other automated equipment applications. It is usable as a trapezoidal ramp generator. The device is designed for an operating voltage of 3.3V to 5V. The TMC4210-I provides a SPI controller and S/D driver interface.
APPLICATIONS
- CCTV, Security
- Antenna Positioning
- Heliostat Controller
- Battery powered applications
- Office Automation
- ATM, Cash recycler, POS
- Lab Automation
- Liquid Handling
- Medical
- Printer and Scanner
- Pumps and Valves
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号,脚注和 3D模型 |
---|---|---|---|
TMC4210-I | 16-QSOP-150_MIL | ||
TMC4210-I-T | 16-QSOP-150_MIL |
