TMC2590

过期

Stepper motor driver 7 TO 34V, for external P/N-Fets with S/D and SPI Interface, 256 µSteps, CoolStep, StallGuard2 and SpreadCycle

数据手册 (Rev. 1.04) 产品选型表
产品模型
2
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

产品详情

  • Motor Current from 1A to 8A using external (N&P) MOSFETs
  • High Voltage Range from 5V to 60V DC (more w. ext. driver)
  • High Resolution up to 256 microsteps per full step
  • Small Size 5x5mm (body) TQFP32-EP package
  • Low Power Dissipation using MOSFET power stage
  • High Temperature Tolerance due to low self-heating
  • EMI-optimized slope & current controlled gate driver
  • Resonance Dampening for mid-range velocity
  • Protection & Diagnostics short to GND, short to VS / overcurrent, programmable overtemperature & undervoltage
  • StallGuard2™ high precision sensorless motor load detection
  • CoolStep™ load dependent current control saves up to 75%
  • MicroPlyer™ 256 step smoothness with 1/16 step input.
  • SpreadCycle™ high-precision chopper for best current sine wave form and zero crossing
  • Differential Current Sensing for quiet chopper operation
TMC2590
Stepper motor driver 7 TO 34V, for external P/N-Fets with S/D and SPI Interface, 256 µSteps, CoolStep, StallGuard2 and SpreadCycle

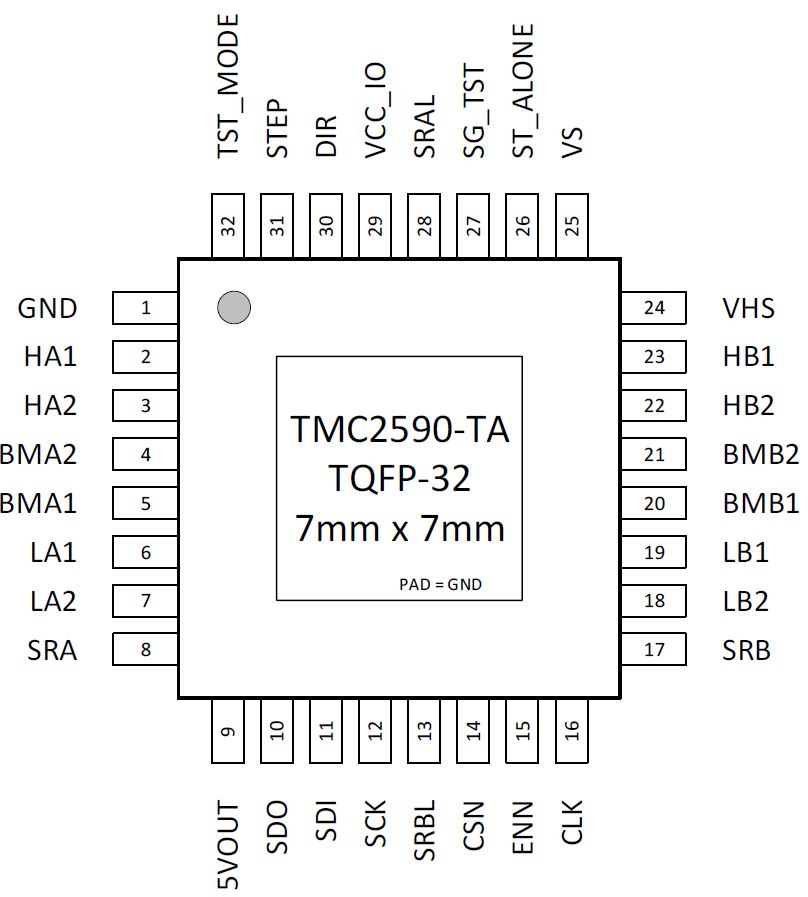

tmc2590-ta tmc2590-ta_pinout tmc2590_blockdiagram
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

了解更多
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

工具及仿真模型

设计工具 1

评估套件

eval board
schematic 1
TMC2590-BOB40

OBSOLETE: Evaluation Board for TMC2590

立即购买 更多内容

特性和优点

  • Break Before Make
  • CoolStep™
  • SpreadCycle™
  • StallGuard2™
  • Current Sense
  • Short Detection
  • Slope Control
  • Stall Detection
  • MicroPlyer™

产品详情

This evaluation board is obsolete and no longer recommended.

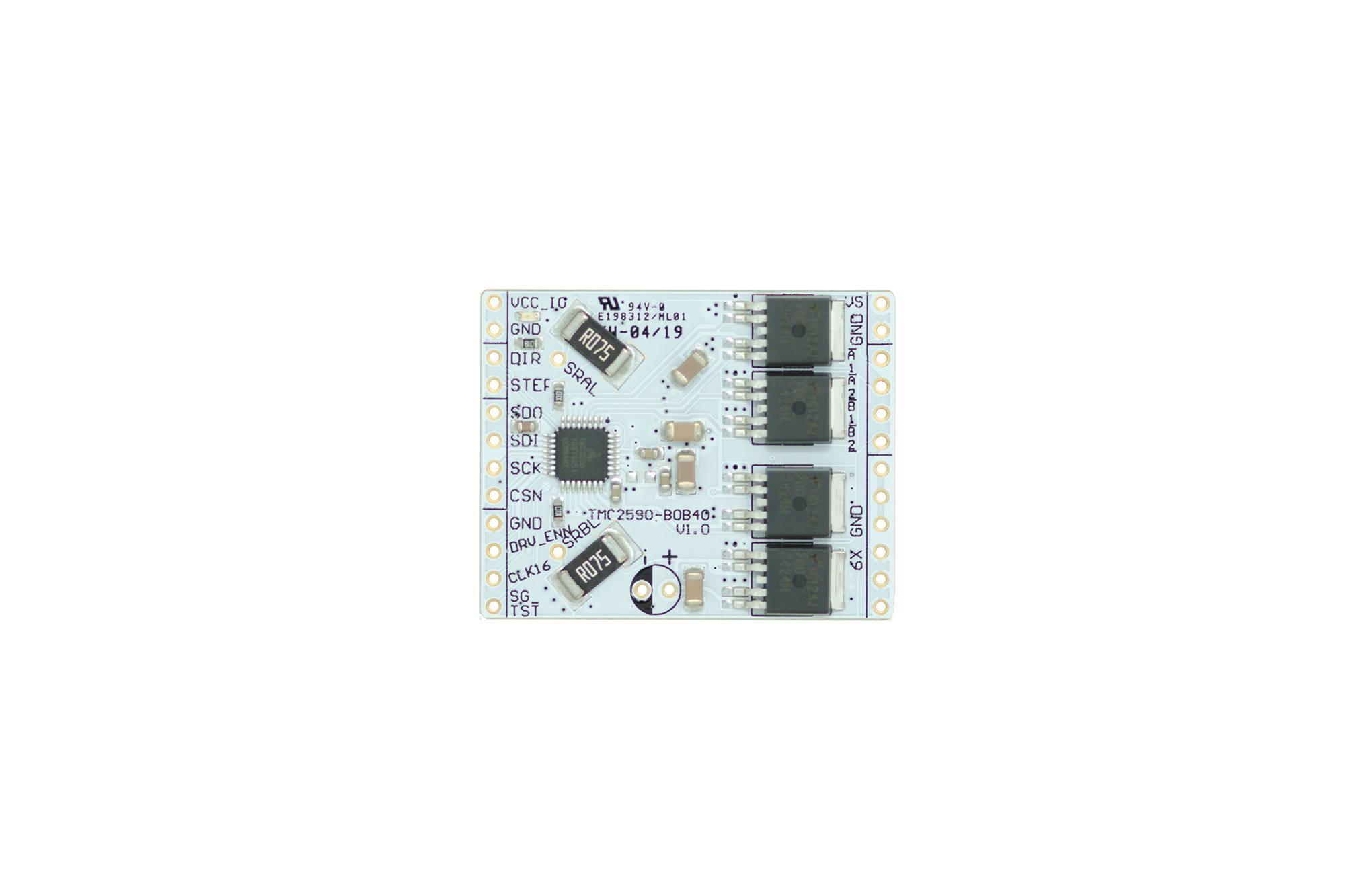

The TMC2590 breakout board is a development board with the dedicated TMC2590-TA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
