Aerospace, Dual 3.2MHz, 0.8V/μs Low Power, Over-The-Top Precision Op Amp Channel

数据手册 (Rev. 0) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • Input Common Mode Range: V– to V– + 76V
  • Rail-to-Rail Input and Output
  • VOS: ±50μV (Maximum)
  • Input noise: (nV/rtHz): 18 nV/rtHz
  • CMRR, PSRR: 126dB
  • Gain Bandwidth Product: 3.2MHz
  • Specified on 5V and ±15V Supplies
  • High Voltage Gain: 1000V/mV

The RH6016S is a dual rail-to rail input operational amplifiers with input offset voltage trimmed to less than 50µV. This amplifier operates on single and split supplies with a total voltage of 3V to 50V and draw only 315µA per amplifier. They are reverse battery protected, drawing very little current for reverse supplies up to 50V. The Over-The-Top input stage of the RH6016S is designed to provide added protection in tough environments. The input common mode range extends from V– to V+ and beyond: this amplifier operates with inputs up to 76V above V– independent of V+. Internal resistors protect the inputs against transient faults up to 25V below the negative supply

APPLICATIONS

  • High Side or Low Side Current Sensing
  • Battery/Power Supply Monitoring
  • 4mA to 20mA Transmitters
  • High Voltage Data Acquisition
  • Battery/Portable Instrumentation
RH6016S
Aerospace, Dual 3.2MHz, 0.8V/μs Low Power, Over-The-Top Precision Op Amp Channel

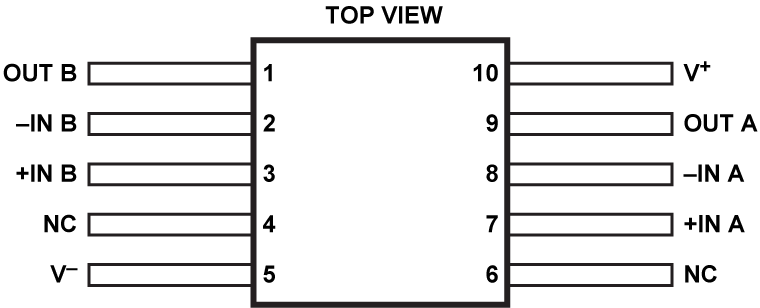

RH6016S Functional Block Diagram
