MAX74812
推荐用于新设计5V, Precision, Low Noise, Zero-Drift Operational Amplifier
- 产品模型
- 3
概述
- Low offset voltage: 5μV maximum
- Low offset voltage drift: 0.015μV/°C maximum
- Low noise
- 5.9nV/√Hz at f = 1kHz, AV = +100
- 99nV p-p at f = 0.1Hz to 10Hz, AV = +100
- Open-loop gain: 127dB minimum
- CMRR: 137dB minimum
- PSRR: 130dB minimum
- Unity-gain crossover: 4MHz
- Gain bandwidth product: 3.4MHz at AV = +100
- −3dB closed-loop bandwidth: 6.5MHz
- Single-supply operation: 2.2V to 5.5V
- Dual-supply operation: ±1.1V to ±2.75V
- Rail-to-rail input and output
- Unity-gain stable
The MAX74812 is a low noise, zero-drift operational amplifier and provides rail-to-rail input and output swing. The MAX74812 suits applications that cannot tolerate error sources by providing a 5μV offset voltage, a 0.015μV/°C offset voltage drift, and a typical noise of 99nV p-p (0.1Hz to 10Hz, AV = +100).
The MAX74812 provides a wide operating supply range of 2.2V to 5.5V, high gain, and excellent common-mode rejection ratio (CMRR) and power-supply rejection ratio (PSRR) specifications. These features make it ideal for applications that require precision amplification of lowlevel signals, such as position and pressure sensors, strain gauges, and medical instrumentation.

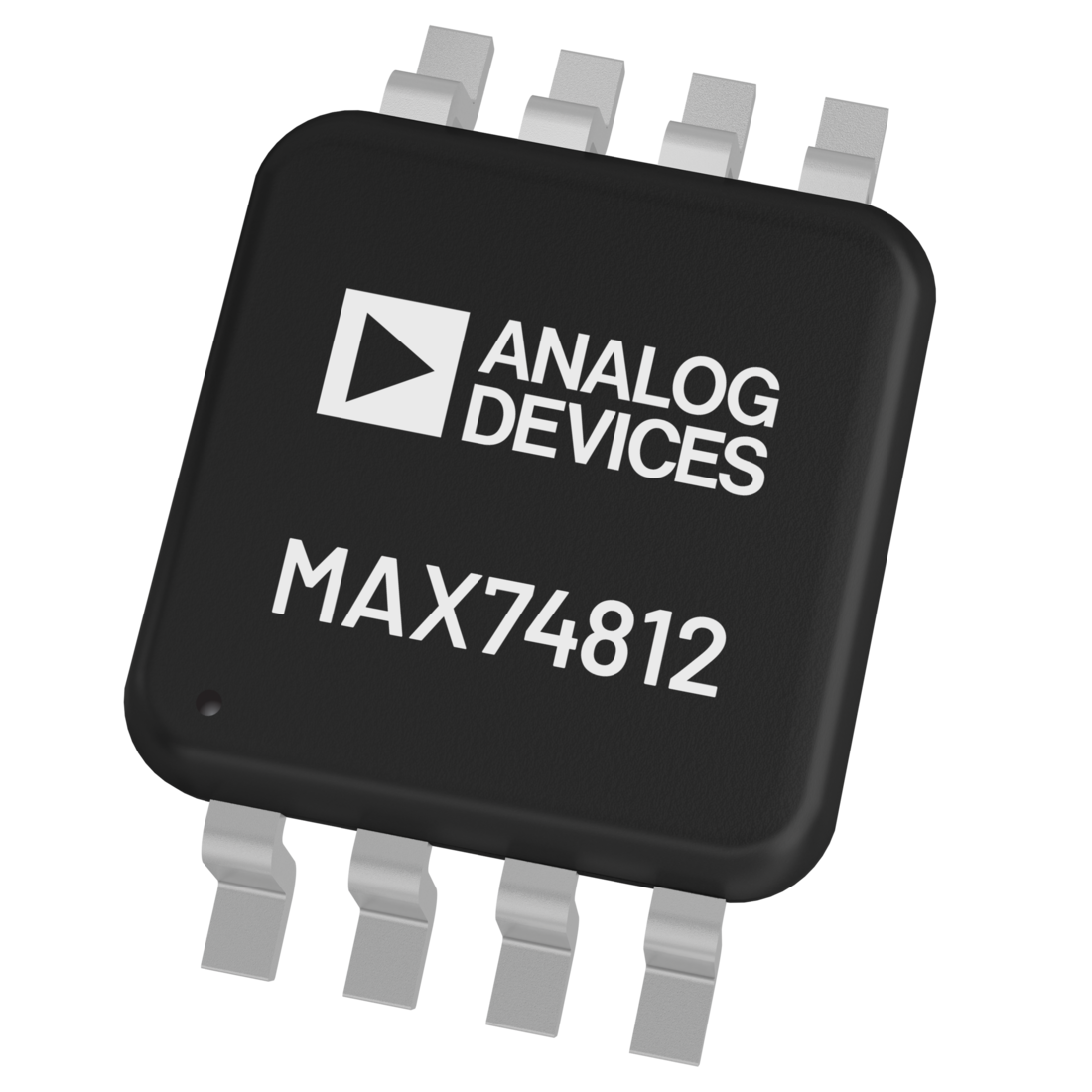

The MAX74812 operates over the extended industrial temperature range (−40°C to +125°C) and is available in 8-lead [MSOP] (RM-8) package.
APPLICATIONS
- Thermocouple/Thermopile
- Load cell and bridge transducers
- Precision instrumentation
- Electronic scales
- Medical instrumentation
- Handheld test equipment
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| MAX74812ARMZ | 8-Lead MSOP | ||
| MAX74812ARMZ-R7 | 8-Lead MSOP | ||
| MAX74812ARMZ-RL | 8-Lead MSOP |
