LTC4400
过期RF Power Controllers with 450kHz Loop BW and 45dB Dynamic Range
- 产品模型
- 4
产品详情
- RF Power Amplifier Control in ThinSOT™ Package

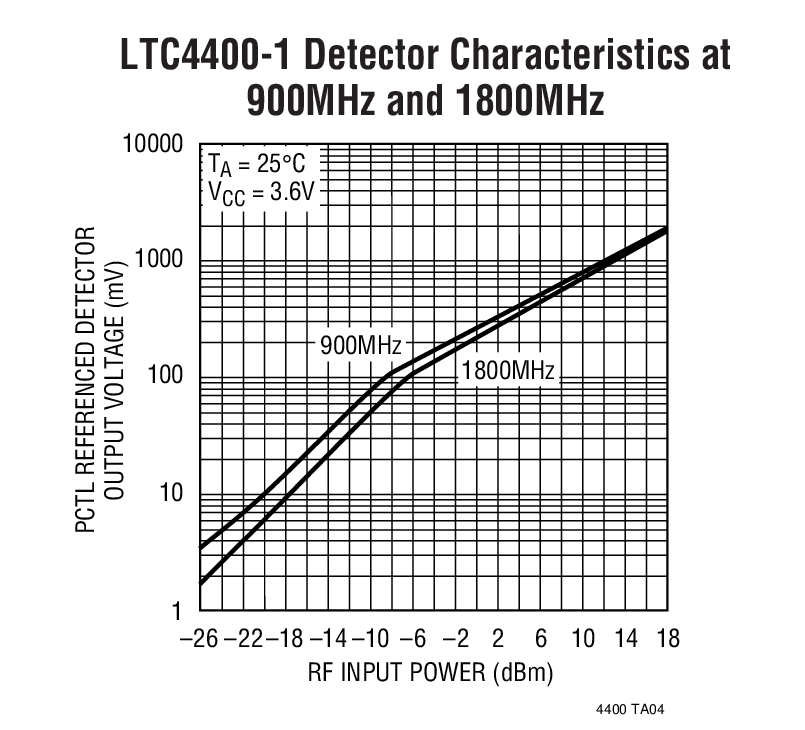

- Internal Schottky Diode Detector with > 45dB Range
- Wide Input Frequency Range:
- 300MHz to 2.7GHz (LTC4400-1)
- 300MHz to 2GHz (LTC4400-2)
- Autozero Loop Cancels Offset Errors and Temperature Dependent Offsets
- Wide VCC Range: 2.7V to 6V
- Automatic Bandwidth Control Improves Low Power Ramp Response
- Allows Direct Connection to Battery
- RF Output Power Set by External DAC
- Internal Frequency Compensation
- Rail-to-Rail Power Control Output
- Power Control Signal Overvoltage Protection
- Low Operating Current: 1mA
- Low Shutdown Current: 10µA
- Two Pole PCTL Input Filtering

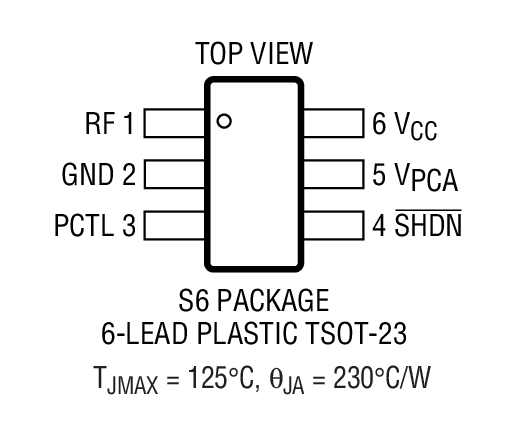

- Low Profile (1mm) ThinSOT (LTC4400-1) and 8-Pin MSOP (LTC4400-2) Packages

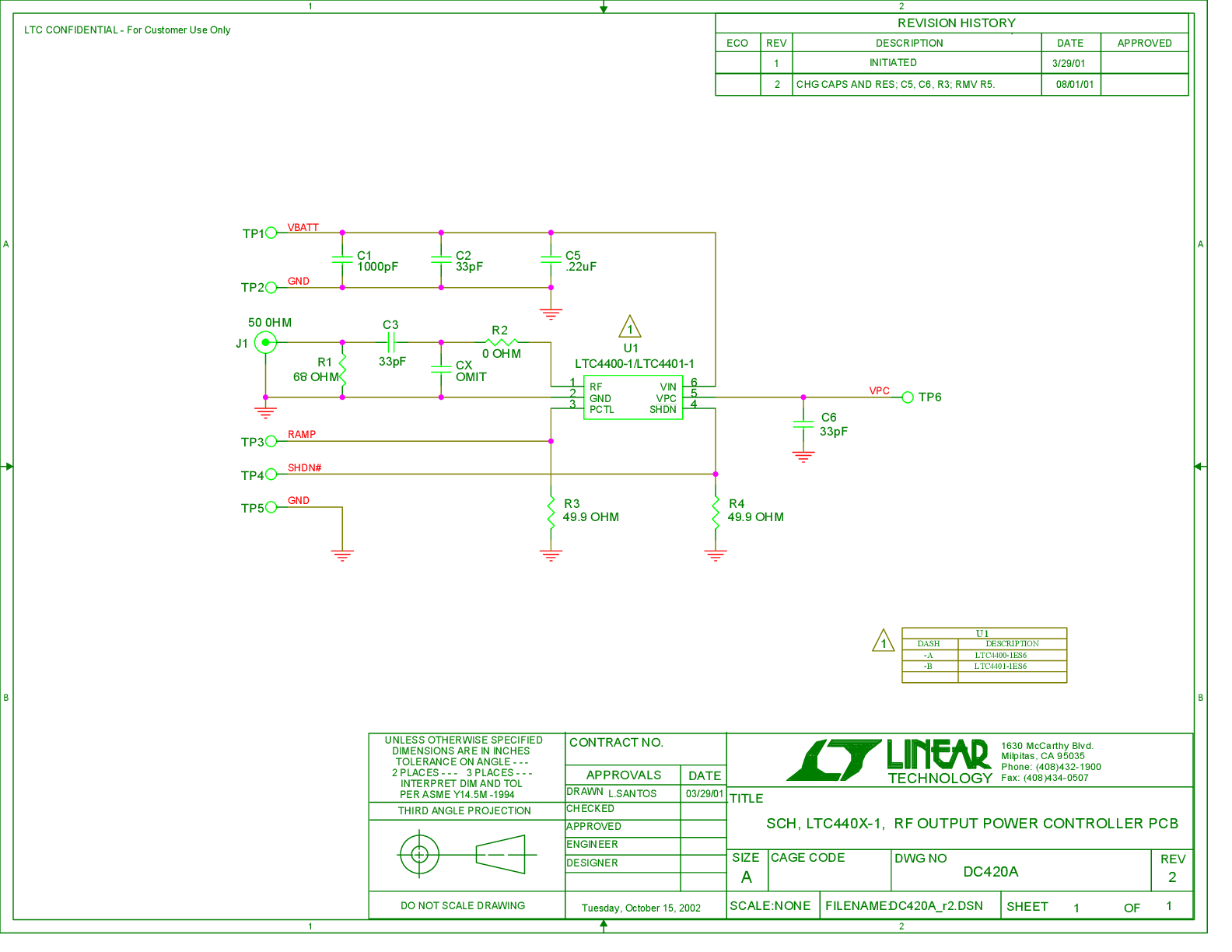

The LTC4400-1 is a SOT-23 RF power controller for fast turn-on RF power amplifiers operating in the 300MHz to 2.7GHz range. Examples include the Hitachi PF08109B, PF08122B, PF08123B, PF08107B and RF Micro Devices RF3108. For slow turn-on RF power amplifiers refer to the LTC4401-1/LTC4401-2.

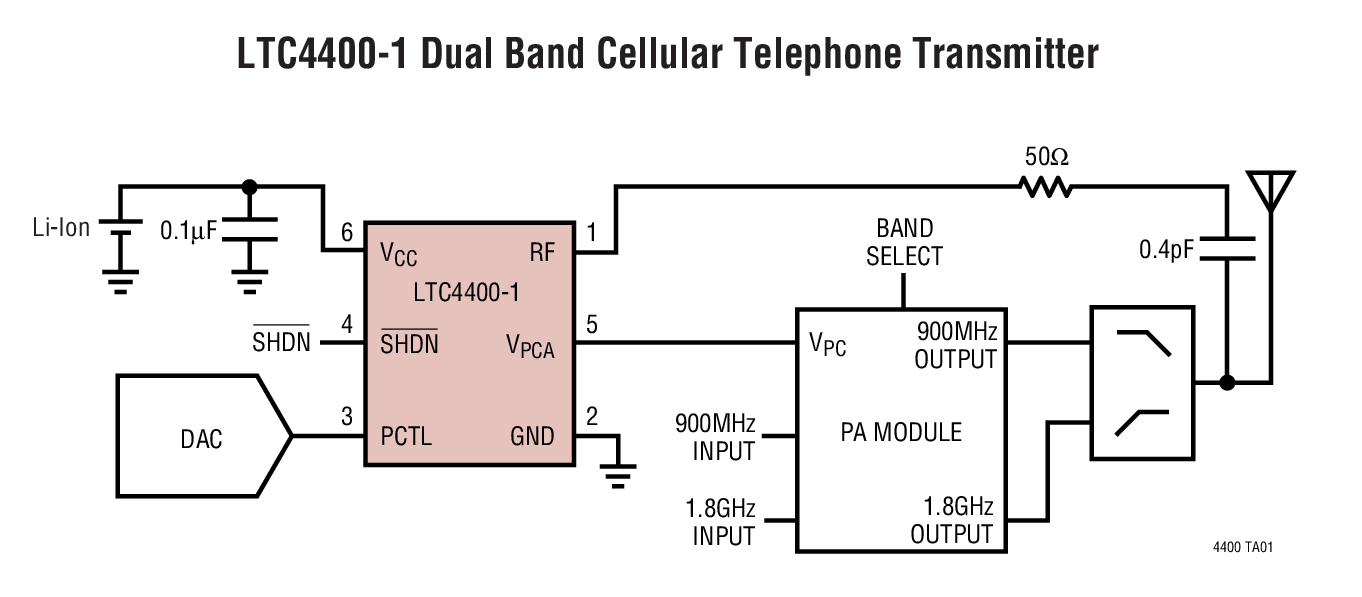

RF power is controlled by driving the RF amplifier power control pin and sensing the resultant RF output power via a directional coupler or capacitive tap. The RF input voltage is peak detected using an on-chip Schottky diode. This detected voltage is compared to the DAC voltage at the PCTL pin to control the output power. The RF power amplifier is protected against high power control pin voltages.
Internal and external offsets are cancelled over temperature by an autozero control loop, allowing accurate low power programming. The shutdown feature disables the part and reduces the supply current to <10µA.

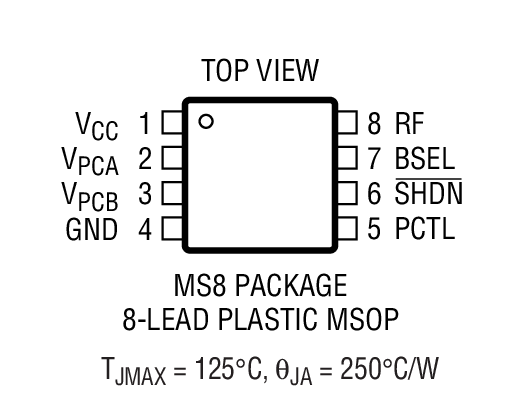

A dual control channel version (LTC4400-2) is also available in an 8-pin MSOP package.
Applications
- GSM/GPRS Cellular Telephones
- PCS Devices
- Wireless Data Modems
- U.S. TDMA Cellular Phones
参考资料
数据手册 1
可靠性数据 1
用户手册 2
应用笔记 1
技术文章 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| LTC4400-1ES6#TRMPBF | 6-Lead TSOT-23 | ||
| LTC4400-1ES6#TRPBF | 6-Lead TSOT-23 | ||
| LTC4400-2EMS8#PBF | 8-Lead MSOP | ||
| LTC4400-2EMS8#TRPBF | 8-Lead MSOP |
| 产品型号 | 产品生命周期 | PCN |
|---|---|---|
| 未找到匹配项目 | ||
|
9月 10, 2019 - 19_0033 Obsolescence of all materials of LTC4400-1, LTC4400-2, LTC4401-1, LTC4401-2, LTC4402-1, LTC4402-2, LTC4403-1, LTC4403-2, LTC1957-1, LTC1957-2, LTC1758-1, LTC1758-2 |
||
| LTC4400-1ES6#TRMPBF | 过期 | |
| LTC4400-1ES6#TRPBF | 过期 | |
| LTC4400-2EMS8#PBF | 过期 | |
| LTC4400-2EMS8#TRPBF | 过期 | |
