ADRF5162
High Power, 100 W Peak, Silicon SPDT, Reflective Switch, 0.4 GHz to 8 GHz
更多
Info :
推荐新设计使用
Info :
推荐新设计使用
产品详情
产品详情
不是您想寻找的产品？
提问
在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:
搜索
您可以在其他地方找到帮助
产品模型
2
特性
- Frequency range: 0.4 GHz to 8 GHz
- Low insertion loss: 0.6 dB typical to 4 GHz
- High Isolation: 45 dB typical to 4 GHz
- High input linearity
- 0.1 dB power compression (P0.1dB): 49 dBm
- Third order intercept (IP3): >76 dBm
- High power handling at TCASE = 85°C:
- Insertion loss path
- Average: 45.5 dBm
- Pulsed (>100 ns pulse width, 15% duty cycle): 48.5 dBm
- Peak (≤100 ns peak duration, 5% duty cycle): 50 dBm
- Hot-switching at RFC: 43 dBm
- Insertion loss path
- 0.1 dB RF settling time with PIN ≤ 43 dBm: 1.2 μs
- No low frequency spurious
- Positive control interface: CMOS/LVTTL-compatible
- 24-lead, 4.0 mm × 4.0 mm LFCSP package
更多细节
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=zh&h=24&w=24&hash=7CDDC996281D9E966D391D97E93C6727){kind=icon}
The ADRF5162 is a reflective, single pole double-throw (SPDT) switch manufactured in the silicon process.
The ADRF5162 operates from 0.4 GHz to 8 GHz with typical insertion loss of 0.6 dB and typical isolation of 45 dB. The device has a radio frequency (RF) input power handling capability of 45.5 dBm average power and 50 dBm peak power for the insertion loss path.
The ADRF5162 draws a low current of 130 μA on the positive supply of +3.3 V and 500 μA on negative supply of −3.3 V. The device employs complementary metal-oxide semiconductor (CMOS)-/low-voltage transistor to transistor logic (LVTTL)-compatible controls. The ADRF5162 requires no additional driver circuitry, which makes it an ideal alternative to GaN and PIN diode-based switches.
The ADRF5162 comes in a 24-lead, 4.0 mm × 4.0 mm, RoHS-compliant, lead frame chip scale package (LFCSP) package and can operate from −40°C to +105°C.
APPLICATIONS
- Military radios, radars, and electronic counter measures
- Cellular infrastructure
- Test and instrumentation
- GaN and PIN diode replacement
提问
在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:
搜索
您可以在其他地方找到帮助
产品模型
2
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADRF5162
文档
2
筛查
1 应用
全部
-
全部
-
数据手册
-
用户手册
全部
-
全部
-
英文
数据手册
1
用户手册
1
更新 08/16/2024
英文
没有符合要求的搜索结果。请尝试重置您的筛选或搜索一个不同的术语
产品技术资料帮助
ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
参考资料
参考资料
设计资源 2
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| ADRF5162BCPZN |
24-Lead LFCSP (4mm x 4mm x 0.85mm w/ EP)
|
|
|
| ADRF5162BCPZN-R7 |
24-Lead LFCSP (4mm x 4mm x 0.85mm w/ EP)
|
|
- ADRF5162BCPZN
- 引脚/封装图-中文版
-
24-Lead LFCSP (4mm x 4mm x 0.85mm w/ EP)
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- ADRF5162BCPZN-R7
- 引脚/封装图-中文版
-
24-Lead LFCSP (4mm x 4mm x 0.85mm w/ EP)
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
软件和型号相关生态系统
软件和型号相关生态系统
评估套件
评估套件 1
EVAL-ADRF5162
Evaluating the ADRF5162 High Power, 100 W Peak, Silicon SPDT, Reflective Switch, 0.4 GHz to 8 GHz
Evaluating the ADRF5162 High Power, 100 W Peak, Silicon SPDT, Reflective Switch, 0.4 GHz to 8 GHz
产品详情
The ADRF5162 is a single-pole, double-throw (SPDT) switch manufactured in the silicon process.

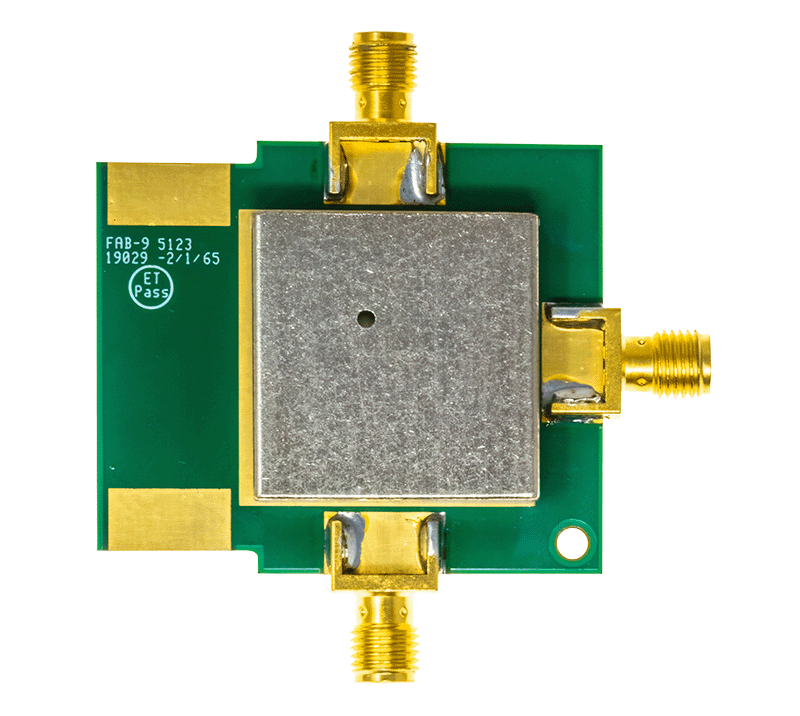

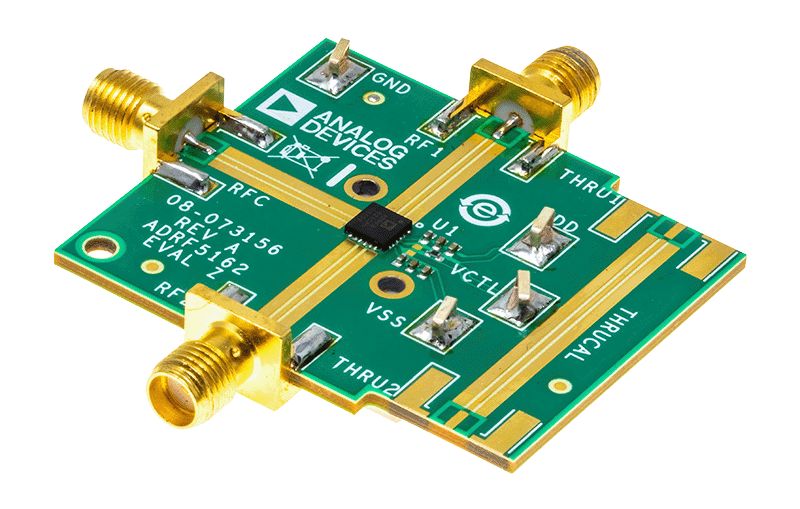

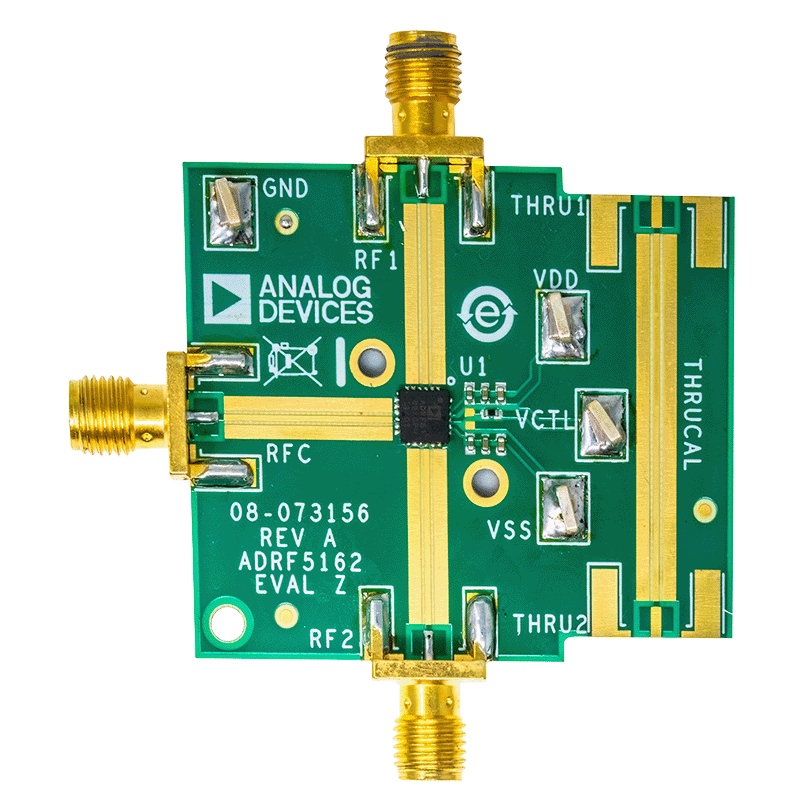

This user guide describes the ADRF5162-EVALZ evaluation board, designed to simply evaluate the features and performance of the ADRF5162. Figure 1 shows a photograph of the evaluation board.
