ADH787AS

最后购买期限

Aerospace, GaAs, MESFET, MMIC, Fundamental Mixer, 3 GHz to 10 GHz

产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • Conversion Loss: 9 dB typical at 3 GHz to 10 GHz
  • Local oscillator (LO) to radio frequency (IF) isolation: 43 dB typical at 3 GHz to 10 GHz
  • RF to intermediate frequency (IF) isolation: 26 dB typical at 3 GHz to 10 GHz
  • Input third-order intercept (IIP3): 24 dBm typical at 3 GHz to 10 GHz
  • Input 1 dB compression point (IP1dB): 17 dBm typical at 3 GHz to 10 GHz
  • Passive double-balanced topology
  • Wide IF frequency range: DC to 4 GHz
  • 12-Lead Hermetic SMT Package
  • Screened in accordance with MIL-PRF-38535, Class Level S

The ADH787AS is a general-purpose, double balanced mixer in a 12-terminal hermetic SMT package that can be used as an upconverter or down- converter from 3 GHz to 10 GHz. This mixer is fabricated in a gallium arsenide (GaAs), metal semiconductor field effect transistor (MESFET) process and requires no external components or matching circuitry. The ADH787AS provides excellent local oscillator (LO) to radio frequency (RF) and LO to intermediate frequency (IF) isolation due to optimized balun structures and operates with a LO drive level of 17 dBm.

Applications

  • Microwave Radio
  • Test equipment & sensors
  • Military and Space

ADH787AS
Aerospace, GaAs, MESFET, MMIC, Fundamental Mixer, 3 GHz to 10 GHz

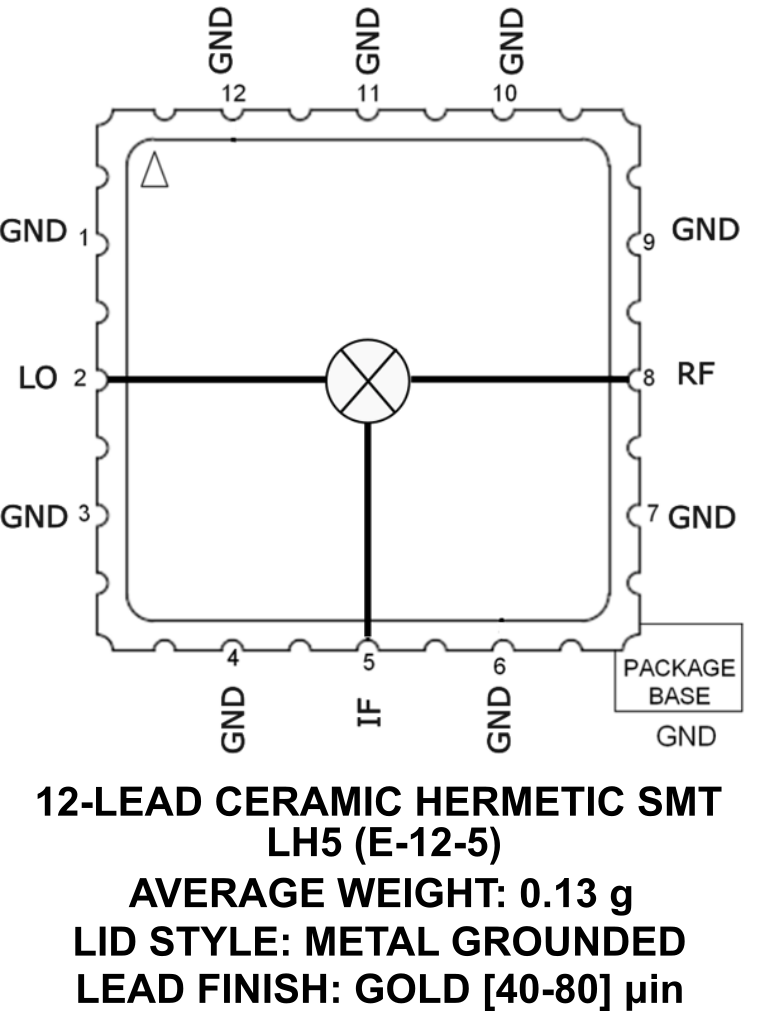

HMC8738LH5 SID
