ADH598S
推荐用于新设计Aerospace, GaAs, pHEMT, MMIC, x2 Active Multiplier Chip, 22 GHz to 46 GHz Fout
- 产品模型
- 1
产品详情
- High Output Power: +15 dBm
- Low Input Power Drive: 0 dBm to +6 dBm
- Fo Isolation: 25 dBc @ Fout = 30 GHz
- Die Size: 2.07 mm X 1.86 mm X 0.1 mm
- Screened in accordance with MIL-PRF-38534, Class K

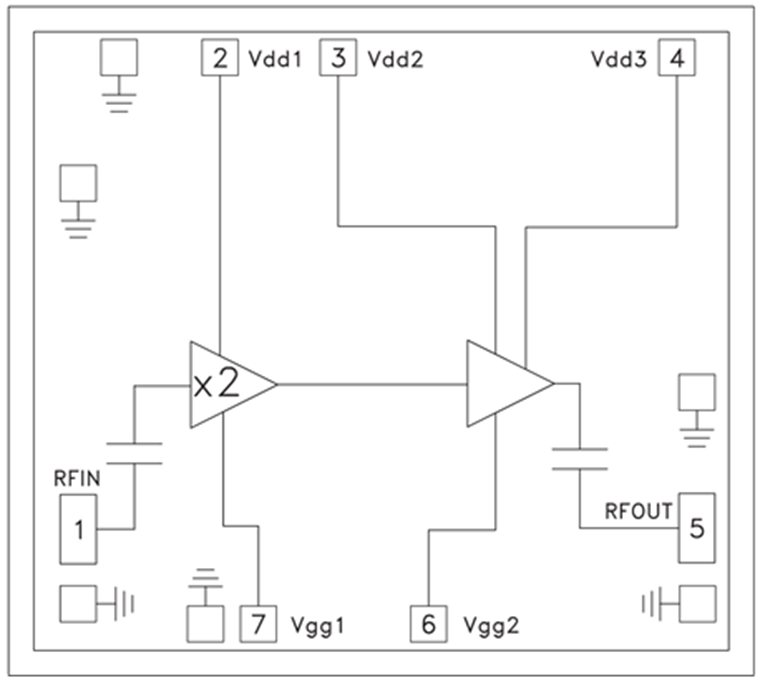

The ADH598S is a x2 active broadband frequency multiplier chip utilizing GaAs PHEMT technology. When driven by a +5 dBm signal, the multiplier provides +15 dBm typical output power from 22 to 46 GHz and the Fo and 3Fo isolations are 25 dBc and 15 dBc respectively at 30 GHz. The ADH598S is ideal for use in LO multiplier chains for Point-to-Point and VSAT radios yielding reduced parts count versus traditional design approaches.
Applications
- Clock Generation Applications
- Point-to-point & VSAT Radios
- Military & Space
参考资料
控制图纸 1
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| HMC8731 | CHIPS OR DIE |
