Aerospace, GaAs, PHEMT, MMIC, x2 Active Multiplier, 8 GHz to 22 GHz Fout

产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • High Output Power: +12 dBm
  • Low Input Power Drive: 0 dBm to +6 dBm
  • Fo Isolation: > 20 dBc @ Fout = 16 GHz
  • 100 kHz SSB Phase Noise: -134 dBc/Hz
  • Single Supply: +5 V @ 92 mA Typ.
  • 12-Lead Hermetic Ceramic SMT Package
  • Screened in accordance with MIL-PRF-385345, Class Level S  

The ADH573S is a x2 active broadband frequency multiplier utilizing GaAs PHEMT technology. When driven by a +5 dBm signal, the multiplier provides +12 dBm typical output power from 8 GHz to 22 GHz Fout. The Fo and 3Fo isolations are >20 dBc and >25 dBc respectively at 16 GHz Fout. The ADH573S is ideal for use in LO multiplier chains for Pt to Pt & VSAT Radios yielding reduced parts count vs. traditional approaches. The low additive SSB Phase Noise of -134 dBc/Hz at 100 kHz offset helps maintain good system noise performance.

Applications

  • Clock Generation Applications
    • SONET OC-192 & SDH STM-64
  • Point-to-point & VSAT Radios
  • Satellite communications (SATCOM)
  • Instrumentation
  • Aerospace EW/Radar
  • Military & Space

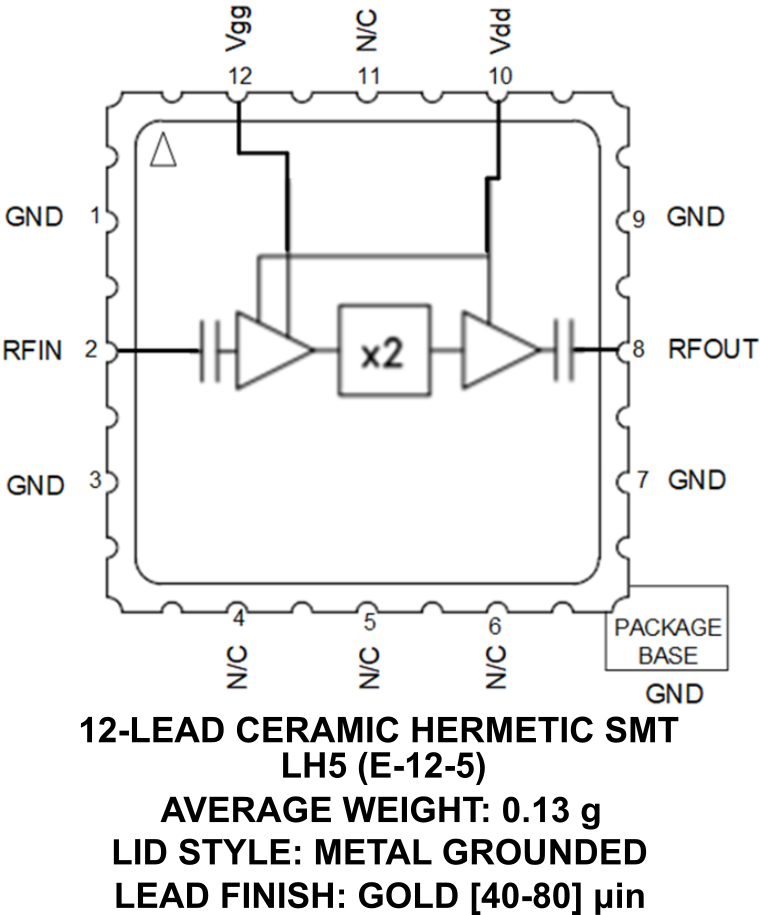

ADH573S
