ADH520S
量产Aerospace, GaAs, MESFET, MMIC, I/Q Mixer, 6 GHz to 10 GHz
- 产品模型
- 1
Viewing:
产品详情
- Wide Intermediate frequency (IF) bandwidth: DC to 3.5 GHz
- Image Rejection: 40 dB Typ.
- Local Oscillator (LO) to Radio Frequency (RF) Isolation: 50 dB Typ.
- High Input IP3: 23 dBm Typ.
- 12-Lead Hermetic SMT Package
- HMC8700LH5: Screened in accordance with MIL-PRF-38535, Class Level S

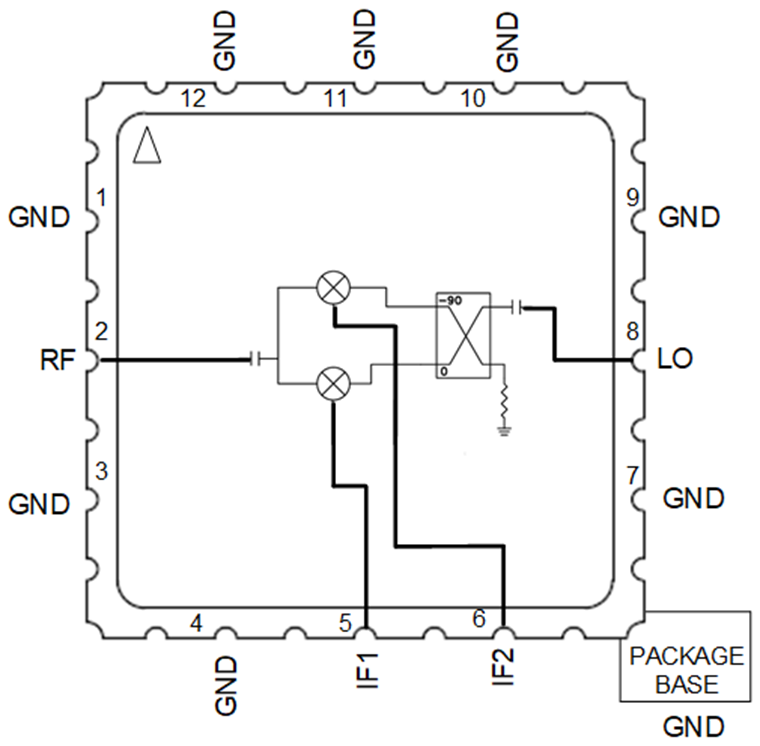

The ADH520S is a compact I/Q MMIC mixer in a 12-Lead hermetic SMT package which can be used as either an IRM or a single sideband (SSB) upconverter. The mixer utilizes two standard double-balanced mixer cells, and a 90° hybrid fabricated in a GaAs metal semiconductor field effect transistor (MESFET) process. A low frequency quadrature hybrid can be used to produce a 100 MHz USB IF output.
Applications
- Point-to-point Radios
- C-Band Communications
- Military & Space
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|

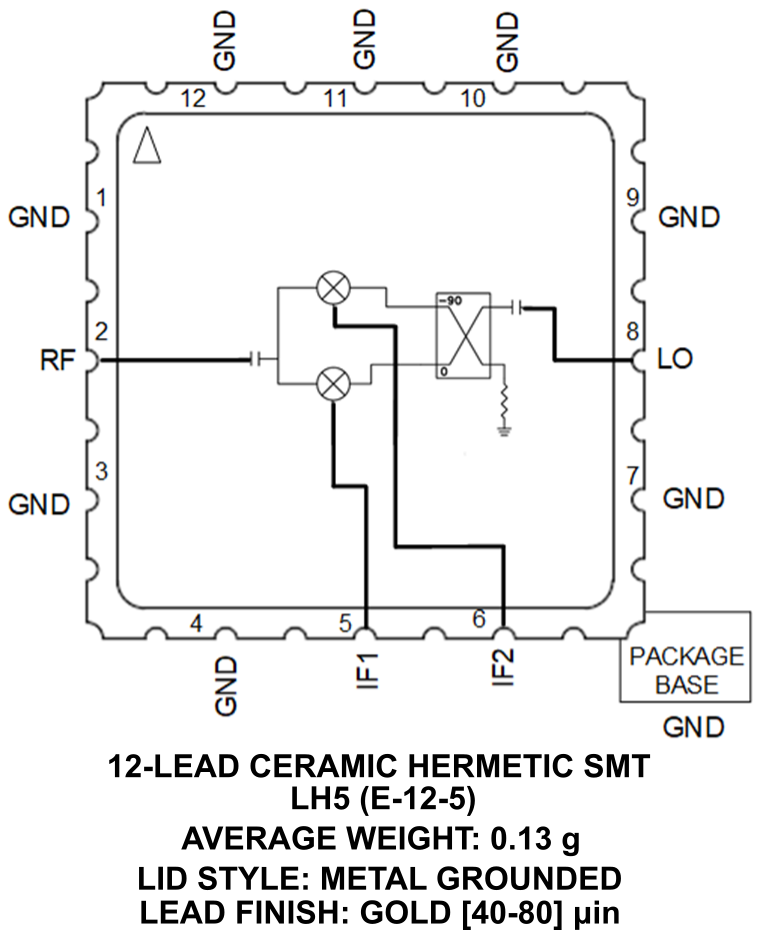

| HMC8700LH5 | 12-Lead LCC (5.08mmm x 5.08mm) |
