ADH322S

推荐用于新设计

DC to 2010 MHz, SP8T Non-Reflective Switch

产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • Frequency of operation: DC to 2010 MHz
  • High Isolation: > 34 dB @ 2010 MHz
  • Low Insertion Loss: < 2 dB @ 2010 MHz
  • Integrated 3:8 TTL Decoder
  • 24-Lead Hermetic SMT Package
  • Screened in accordance with MIL-PRF-38535, Class Level S

The ADH322S is non-reflective GaAs, MESFET, SP8T switch in a 24-lead glass/metal hermetic SMT package. Covering DC to 2010 MHz, this switch offers high isolation and low insertion loss. This switch also includes an on-board binary decoder circuit, which reduces the required logic control lines to three. The ADH322S operates using a negative control voltage of 0/−5 V and requires a fixed bias of −5 V.

Applications

  • Instrumentation
  • Switched filter banks
  • Military & Space
ADH322S
DC to 2010 MHz, SP8T Non-Reflective Switch

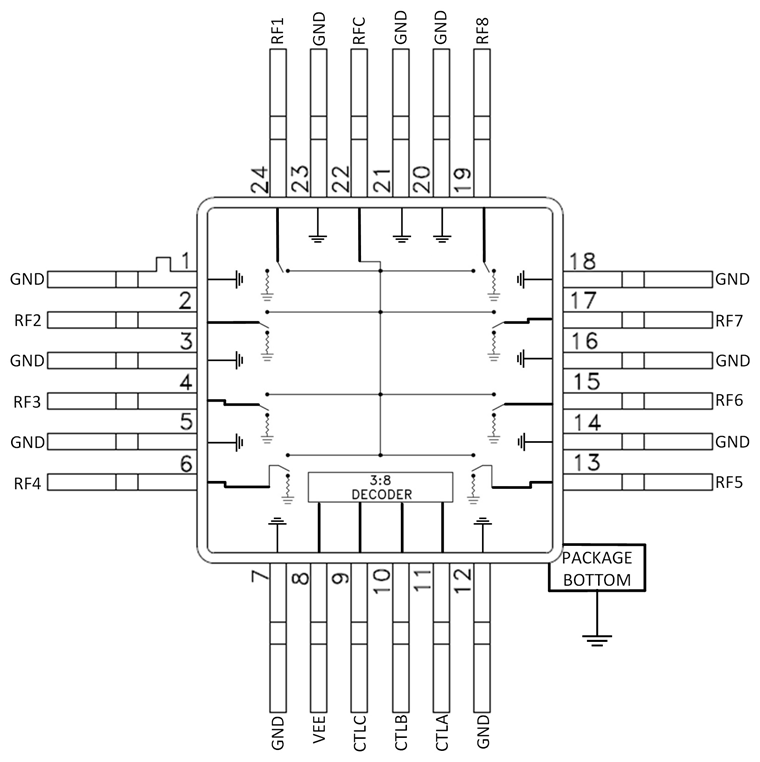

HMC8058G24 SID
