AD590

量产

双端IC温度传感器

数据手册 (Rev. G) 产品选型表

产品模型: 30

Viewing:

产品详情

线性电流输出：1 µA/K
宽工作温度范围：-55°C至+150°C
与探头兼容的陶瓷传感器封装
双引脚器件：电压输入/电流输出
激光调整至±0.5°C校准精度(AD590M)

出色的线性度：满量程范围内为±0.3°C (AD590M)
宽电源电压范围：4 V至30 V
传感器与外壳绝缘

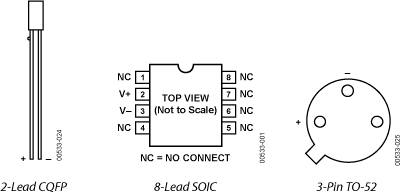

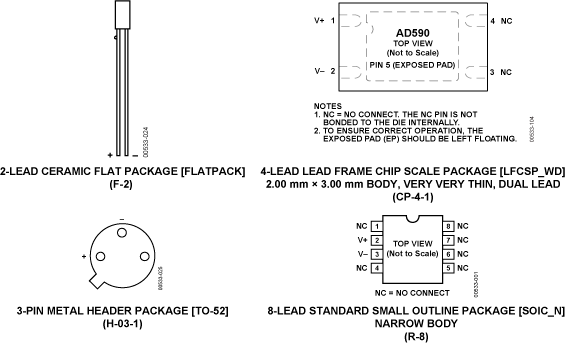

提供2引脚FLATPACK、4引脚LFCSP、3引脚TO-52、8引脚SOIC和裸片形式

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
5962-8757101XA	2-Lead Flatpack	Material Declaration Reliablity Data	Ultra Librarian SamacSys
5962-8757101YA	3-Lead TO-52	Material Declaration Reliablity Data	Ultra Librarian SamacSys
5962-8757102XA	2-Lead Flatpack	Material Declaration Reliablity Data	Ultra Librarian SamacSys
5962-8757102YA	3-Lead TO-52	Material Declaration Reliablity Data	Ultra Librarian SamacSys
5962-8757103XA	2-Lead Flatpack	Material Declaration Reliablity Data	Ultra Librarian SamacSys
5962-8757103YA	3-Lead TO-52	Material Declaration Reliablity Data	Ultra Librarian SamacSys
5962-8757104XA	2-Lead Flatpack	Material Declaration Reliablity Data	Ultra Librarian SamacSys
5962-8757104YA	3-Lead TO-52	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590JCHIPS	None Available	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590JCPZ-R5	4-Lead LFCSP (2mm x 3mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590JCPZ-RL7	4-Lead LFCSP (2mm x 3mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590JF	2-Lead Flatpack	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590JF/883B	2-Lead Flatpack	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590JH	3-Lead TO-52	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590JH/883B	3-Lead TO-52	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590JRZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590KF	2-Lead Flatpack	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590KF/883B	2-Lead Flatpack	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590KH	3-Lead TO-52	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590KH/883B	3-Lead TO-52	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590KRZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590KRZ-RL	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590LF	2-Lead Flatpack	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590LF/883B	2-Lead Flatpack	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590LH	3-Lead TO-52	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590LH/883B	3-Lead TO-52	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590MF	2-Lead Flatpack	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590MF/883B	2-Lead Flatpack	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590MH	3-Lead TO-52	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD590MH/883B	3-Lead TO-52	Material Declaration Reliablity Data	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN
未找到匹配项目
4月 9, 2018 - 16_0026 Qualify TeamQuest Technology, Inc. for Burn-in and Life Test of Military and Aerospace Devices
		PCN16_0026_Form Material_Report Qualification Results Summary
5962-8757101XA
5962-8757101YA
5962-8757102XA
5962-8757102YA
5962-8757103XA
5962-8757103YA
5962-8757104XA	量产
5962-8757104YA	量产
AD590JF/883B	量产
AD590JH/883B	量产
AD590KF/883B	量产
AD590KH/883B	量产
AD590LF/883B	量产
AD590LH/883B	量产
AD590MF/883B	量产
AD590MH/883B	量产
6月 6, 2012 - 12_0066 Add capacity for Burn In of Hermetic, 883 & QMLQ/Class B devices at TSSI Cavite
		PCN12_0066_Form Material_Report Qualification Report Summary
5962-8757101XA
5962-8757101YA
5962-8757102XA
5962-8757102YA
5962-8757103XA
5962-8757103YA
5962-8757104XA	量产
5962-8757104YA	量产
AD590JF	量产
AD590JF/883B	量产
AD590JH	量产
AD590JH/883B	量产
AD590KF/883B	量产
AD590KH	量产
AD590KH/883B	量产
AD590LF/883B	量产
AD590LH/883B	量产
AD590MF	量产
AD590MF/883B	量产
AD590MH	量产
AD590MH/883B	量产
11月 9, 2011 - 11_0050 Transfer of ADI Hermetics Assembly location from Paranaque, Manila to General Trias, Cavite Philippines
		PCN11_0050_Form Material_Report
5962-8757101XA
5962-8757101YA
5962-8757102XA
5962-8757102YA
5962-8757103XA
5962-8757103YA
5962-8757104XA	量产
5962-8757104YA	量产
AD590JF	量产
AD590JF/883B	量产
AD590JH	量产
AD590JH/883B	量产
AD590KF	量产
AD590KF/883B	量产
AD590KH	量产
AD590KH/883B	量产
AD590LF	量产
AD590LF/883B	量产
AD590LH	量产
AD590LH/883B	量产
AD590MF	量产
AD590MF/883B	量产
AD590MH	量产
AD590MH/883B	量产
11月 9, 2011 - 11_0182 Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines
		PCN11_0182_Form Material_Report
5962-8757101XA
5962-8757101YA
5962-8757102XA
5962-8757102YA
5962-8757103XA
5962-8757103YA
5962-8757104XA	量产
5962-8757104YA	量产
AD590JF	量产
AD590JF/883B	量产
AD590JH	量产
AD590JH/883B	量产
AD590KF	量产
AD590KF/883B	量产
AD590KH	量产
AD590KH/883B	量产
AD590LF	量产
AD590LF/883B	量产
AD590LH	量产
AD590LH/883B	量产
AD590MF	量产
AD590MF/883B	量产
AD590MH	量产
AD590MH/883B	量产
6月 14, 2011 - 11_0123 AD590 Mask Revision
		PCN11_0123_Form Material_Report Qualification Plan Summary
5962-8757101XA
5962-8757101YA
5962-8757102XA
5962-8757102YA
5962-8757103XA
5962-8757103YA
5962-8757104XA	量产
5962-8757104YA	量产
AD590JCHIPS	量产
AD590JF	量产
AD590JF/883B	量产
AD590JH	量产
AD590JH/883B	量产
AD590KF	量产
AD590KF/883B	量产
AD590KH	量产
AD590KH/883B	量产
AD590LF	量产
AD590LF/883B	量产
AD590LH	量产
AD590LH/883B	量产
AD590MF	量产
AD590MF/883B	量产
AD590MH	量产
AD590MH/883B	量产
12月 12, 2023 - 23_0197 Die Attach Adheshive Paste Raw Material Change
		PCN23_0197_Form Material_Report Qualification Results Summary
5962-8757101YA
7月 17, 2023 - 23_0095 Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages
		PCN23_0095_Form Material_Report Qualification Results Summary Detailed Change Description
AD590JCPZ-R5	量产
AD590JCPZ-RL7	量产
8月 1, 2016 - 16_0035 Assembly Relocation of Select LFCSP, Mini-LFCSP and LFCSP Side Solderable Products to STATS ChipPAC China Jiangyin
		PCN16_0035_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary
AD590JCPZ-R5	量产
AD590JCPZ-RL7	量产
7月 14, 2014 - 13_0249 Assembly Transfer of Select 2x3mm LFCSP Products using 8900 Die Attach to STATS ChipPAC China
		PCN13_0249_Form Material_Report Detailed Change Description Qualification Results Summary
AD590JCPZ-R5	量产
AD590JCPZ-RL7	量产
11月 7, 2013 - 13_0224 Assembly Transfer of Select 2x3 and 3x3mm LFCSP Products to STATS ChipPAC China.
		PCN13_0224_Form Material_Report Detailed Change Description Qualification Plan Summary
AD590JCPZ-R5	量产
AD590JCPZ-RL7	量产
5月 11, 2012 - 11_0128 AD592 Mask Revision
		PCN11_0128_Form Material_Report Qualification Report Summary
AD590JRZ	量产
AD590KRZ	量产
AD590KRZ-RL	量产
9月 5, 2012 - 12_0066 Add capacity for Burn In of Hermetic, 883 & QMLQ/Class B devices at TSSI Cavite
		PCN12_0066_Form Material_Report Qualification Report Summary
AD590KF	量产
AD590LF	量产
AD590LH	量产
5月 23, 2014 - 14_0014 ADI Corporate Obsolescence Notice-January 2014 (Standard Products)
		PDN14_0014_Form Material_Report
AD590JCPZ-RL7	量产	PDN14_0014_Form Material_Report

这是最新版本的数据手册

软件资源

Mbed支持 1

AD590 Console Application 新

找不到您所需的软件或驱动?

工具及仿真模型

LTspice 1

AD590 - Temperature Sensor and Control Devices

LTspice中提供以下器件型号：

AD590

LTspice^®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

AD590 2 端子 IC 温度传感器评估板

立即购买更多内容

产品详情

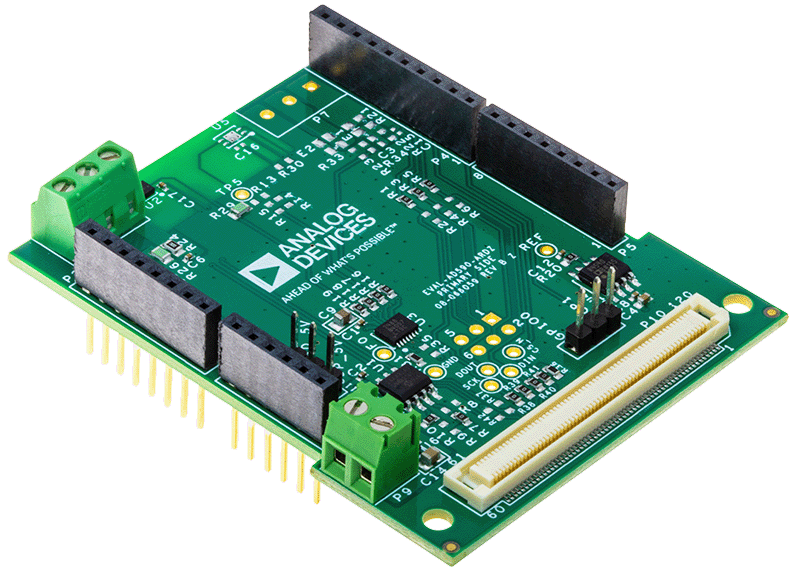

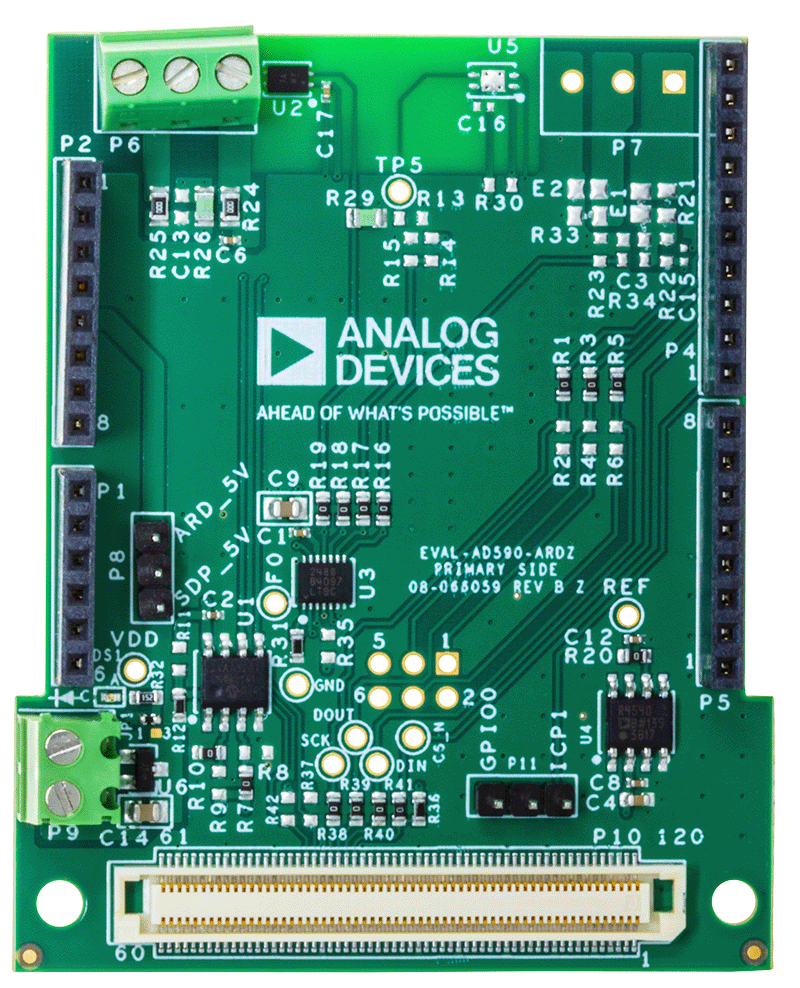

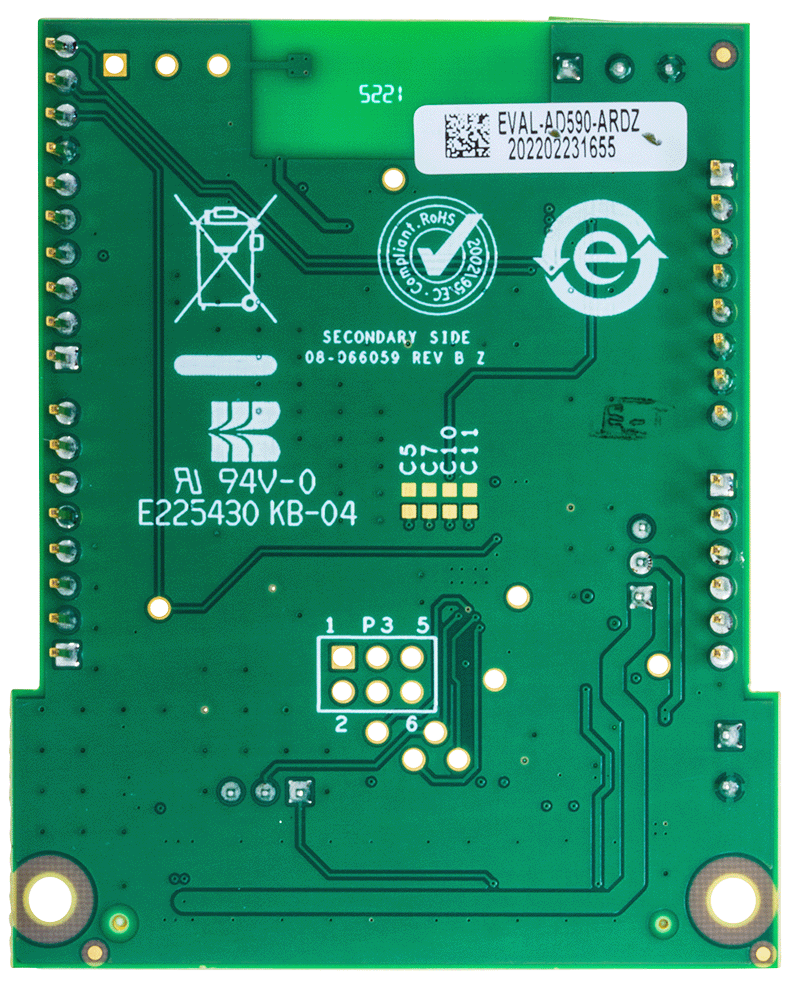

EVAL-AD590-ARDZ 是一款评估板，用于展示 AD590 的性能和易用性，AD590 是一款 2 端子集成电路温度传感器，可产生与绝对温度成比例的输出电流。该器件需要 4V 和 30V 之间的电源电压，作为高阻抗、恒流调节器通过 1μA/K.芯片的激光修整’s 薄膜电阻器用于将设备校准到 298.2μ输出 298.2K (25°C).
