Altera Audio Video Development Kit, Stratix IV GX Edition
Altera Audio Video Development Kit, Stratix IV GX Edition
トップへ
概要
設計リソース
デバイス・ドライバ
コンポーネントのデジタル・インターフェースとを介して通信するために使用されるCコードやFPGAコードなどのソフトウェアです。
機能と利点
- Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
- Our reference designs are supported by an intuitive design tool set and IP
- Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
製品カテゴリ

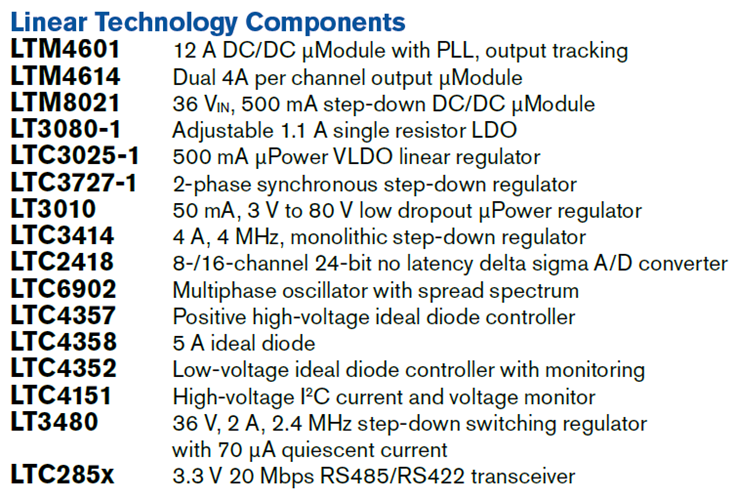

使用されている製品
参考資料
-
DK-DEV-4SGX230N / DK-VIDEO-4SGX230N Dev Kit Schematic2014/08/04PDF2M
回路説明

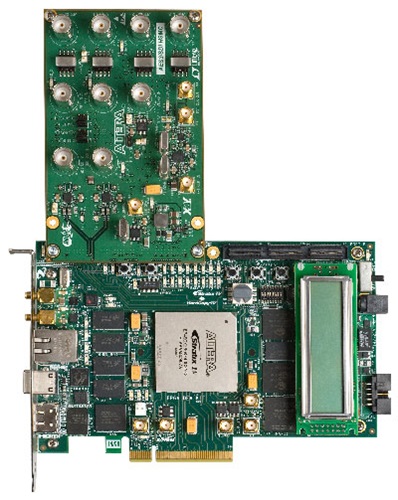

The Audio Video Development Kit, Stratix IV GX Edition, delivers a complete video and image processing development environment for design engineers. The kit facilitates the entire design process, from design conception through hardware implementation. This kit includes the Stratix IV EP4SGX230 FPGA development board, the transceiver serial digital interface (SDI) high-speed mezzanine card (HSMC), Quartus II development software, evaluation intellectual property (IP) cores—including the Video and Image Processing Suit—the serial digital interface (SDI) reference design, as well as power supplies, cables, and documentation.
